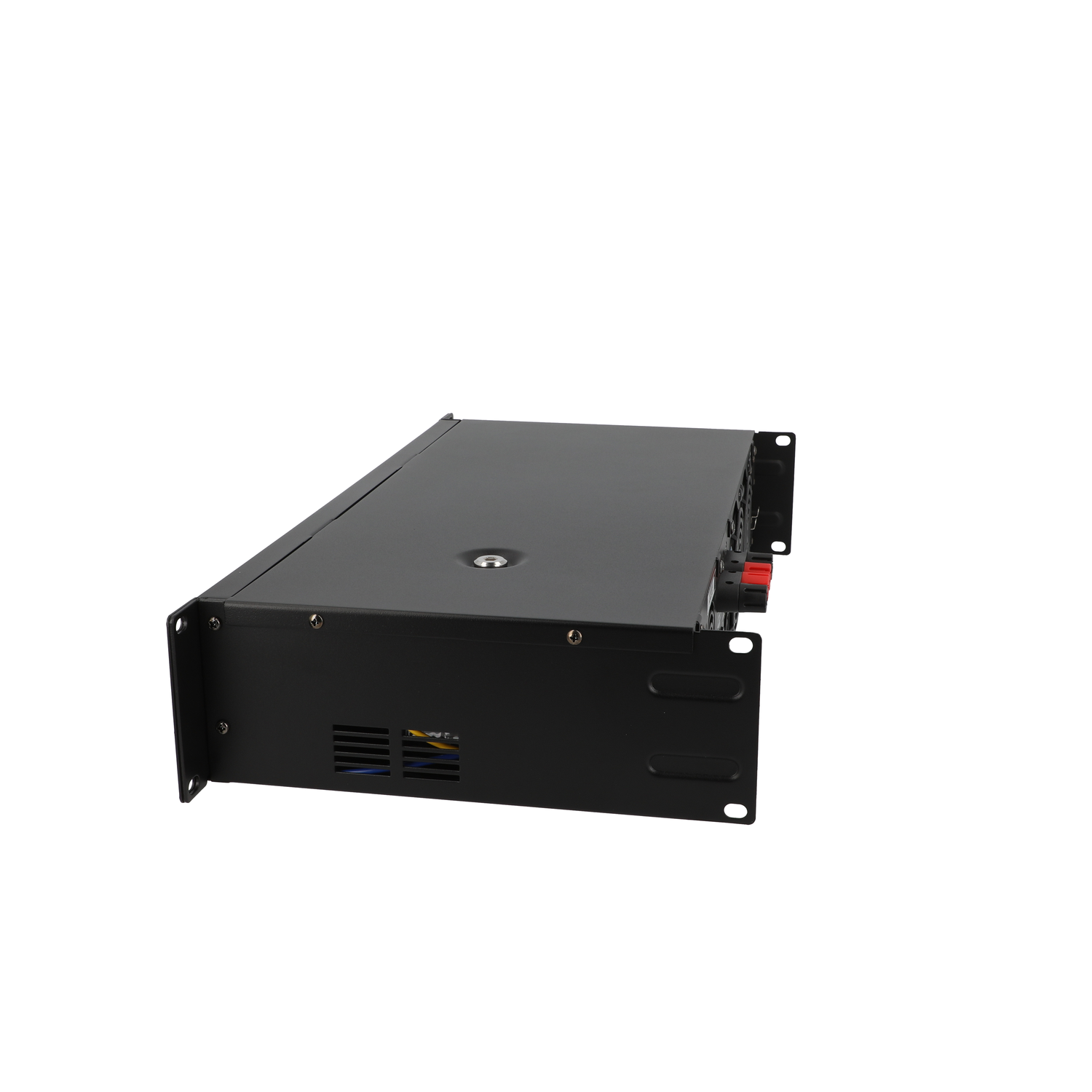

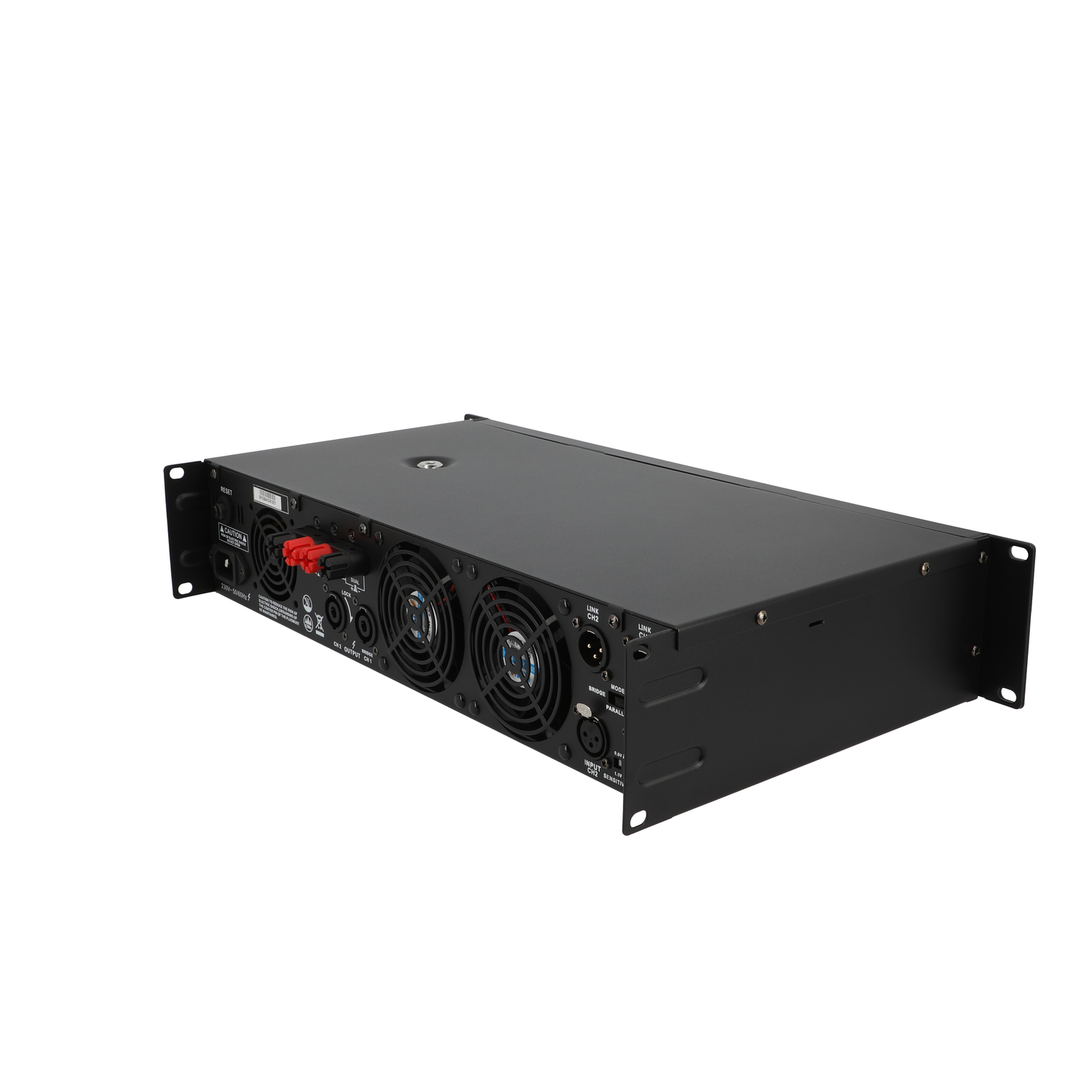

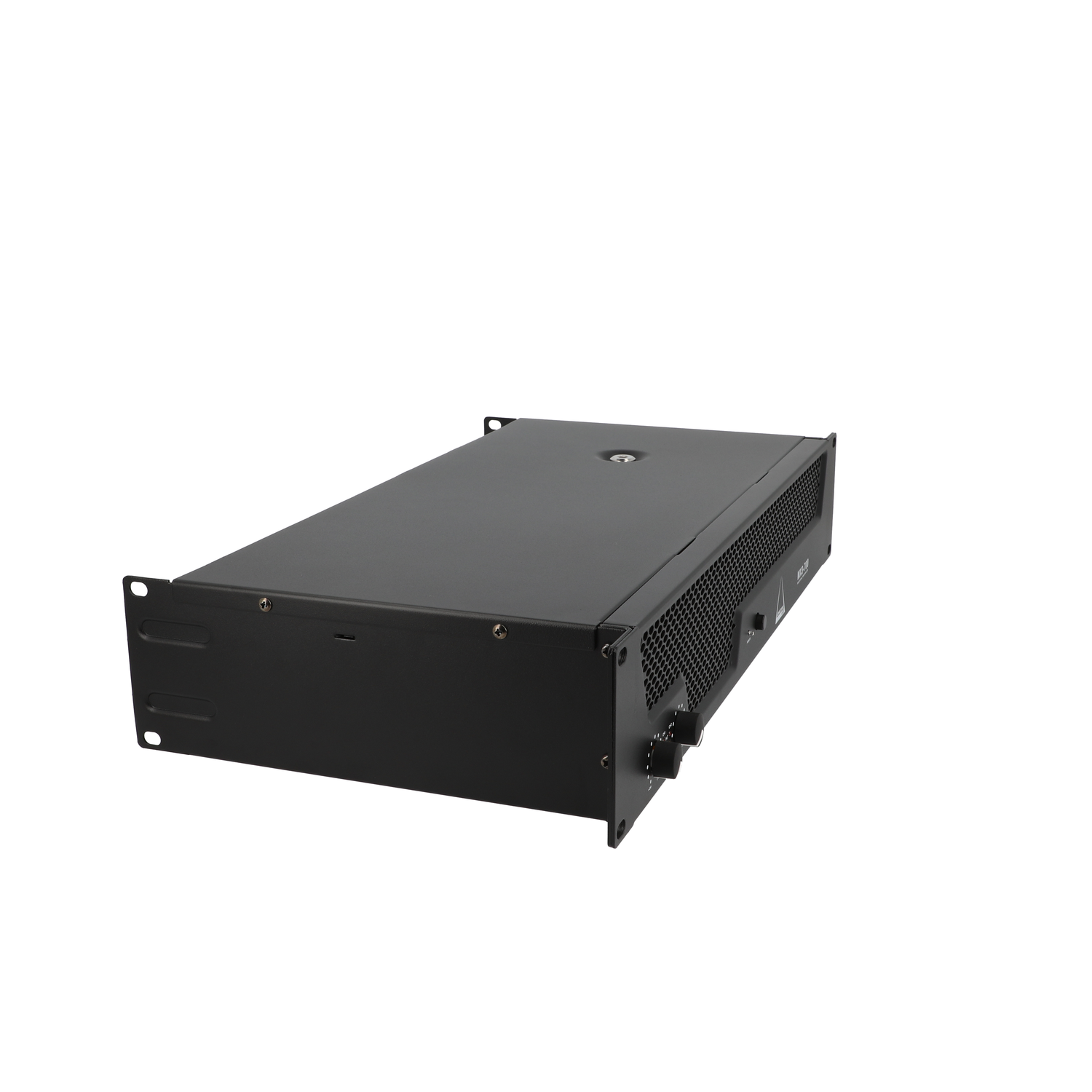

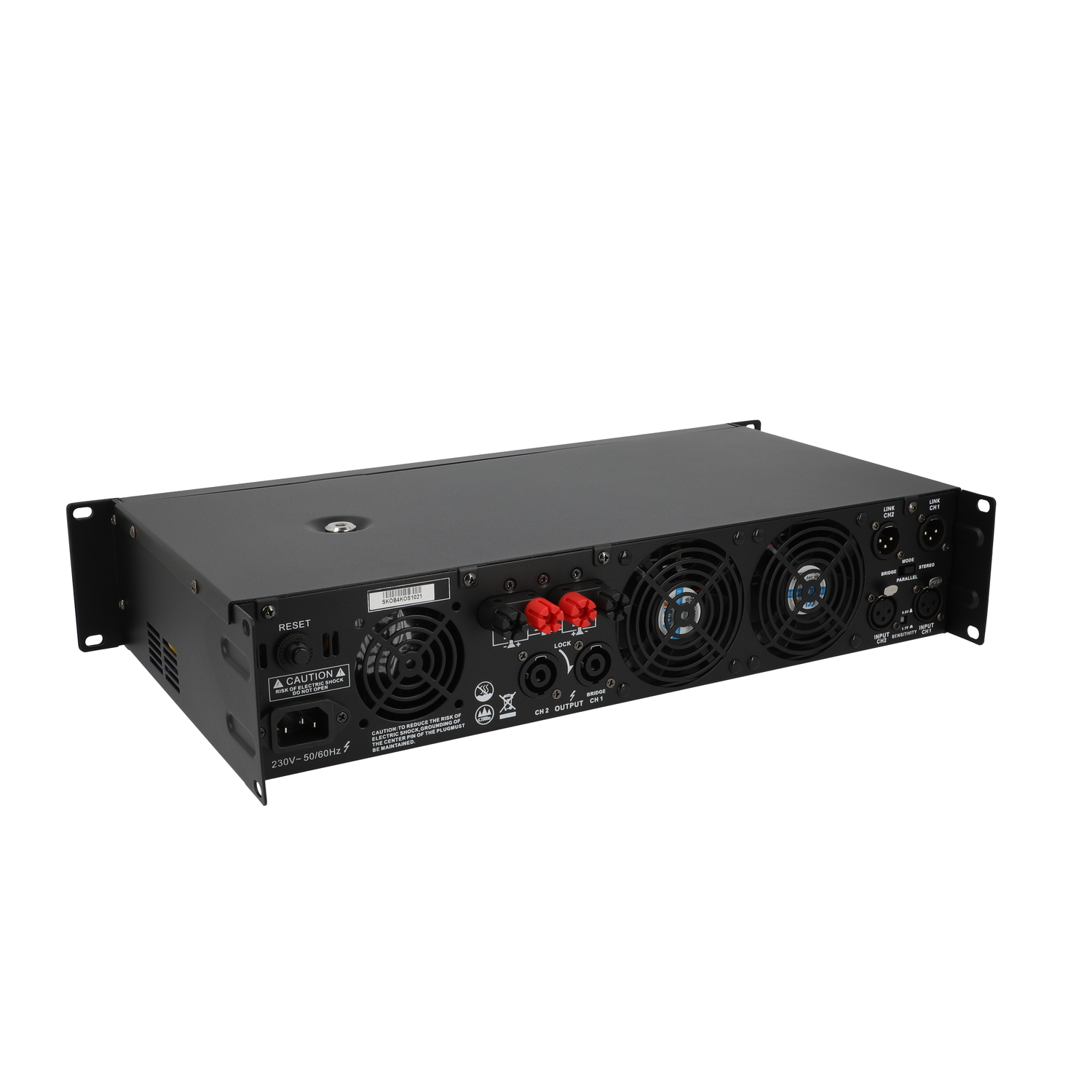

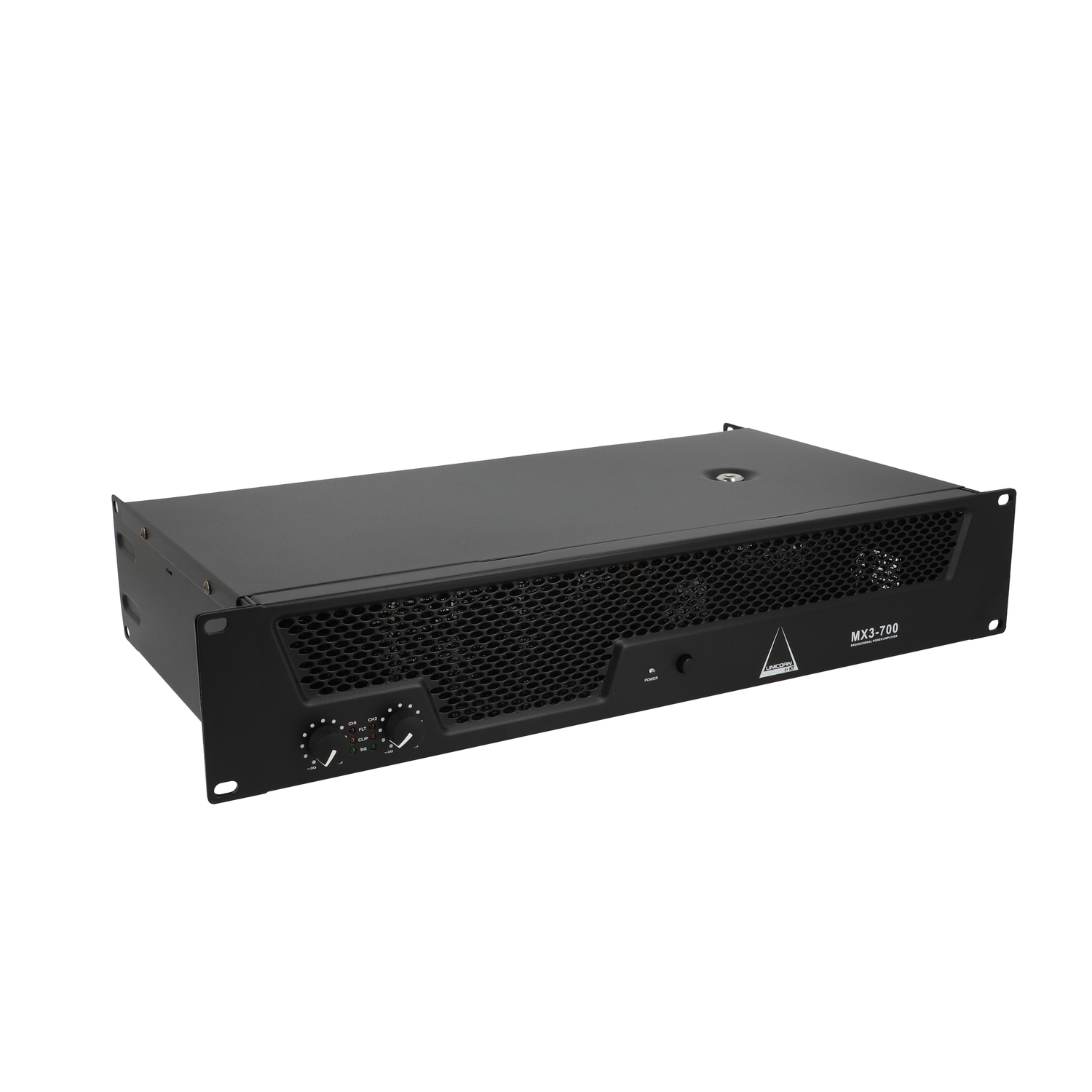

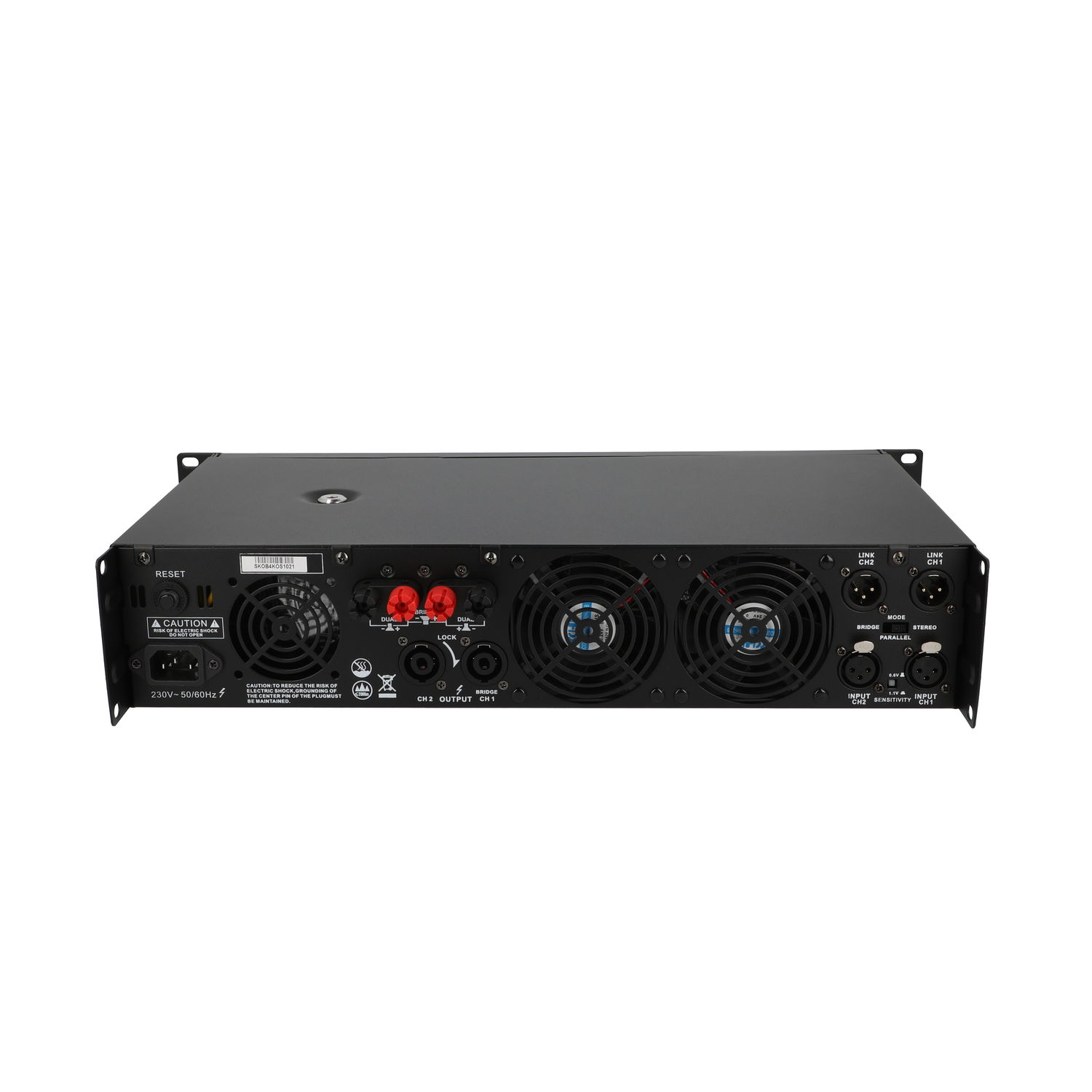

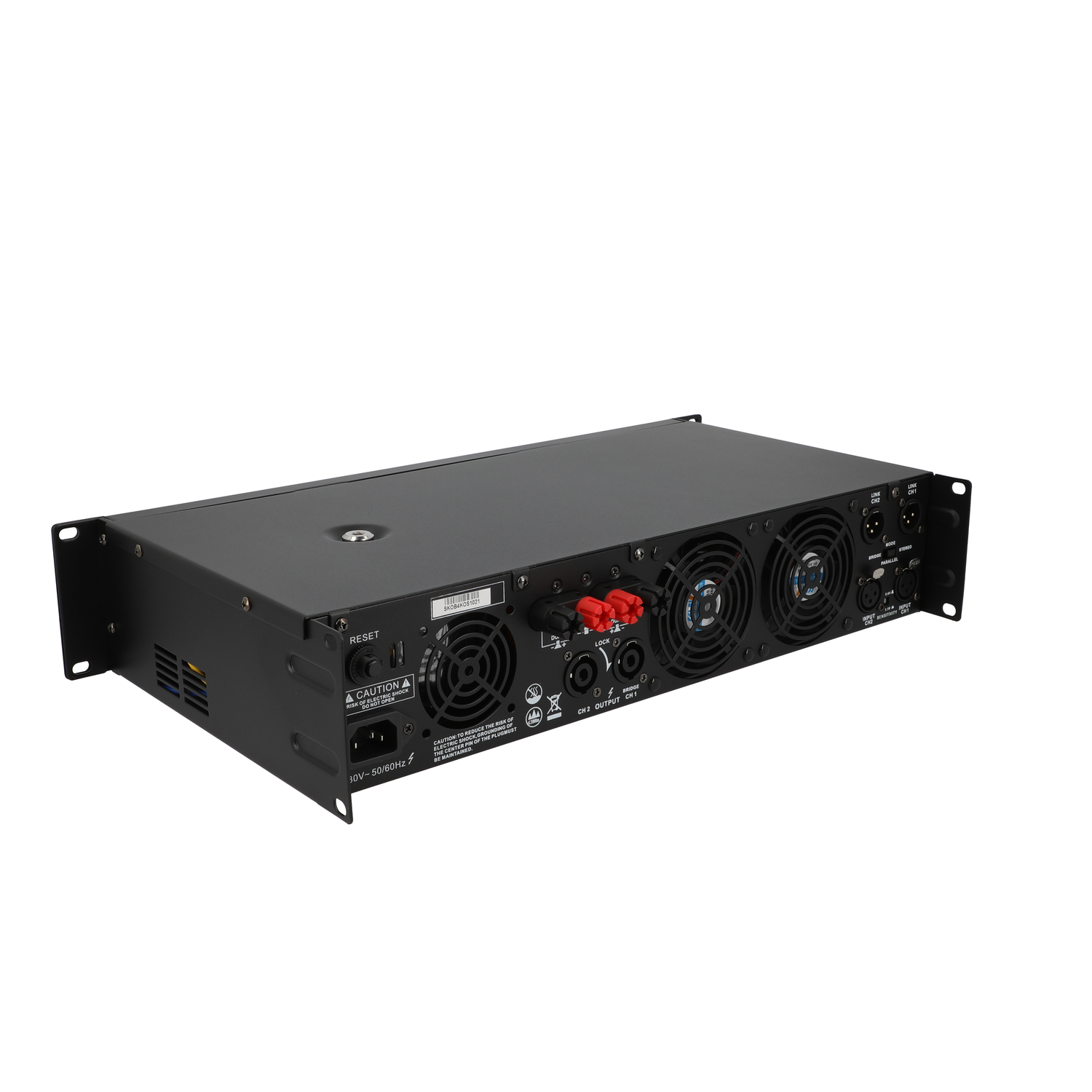

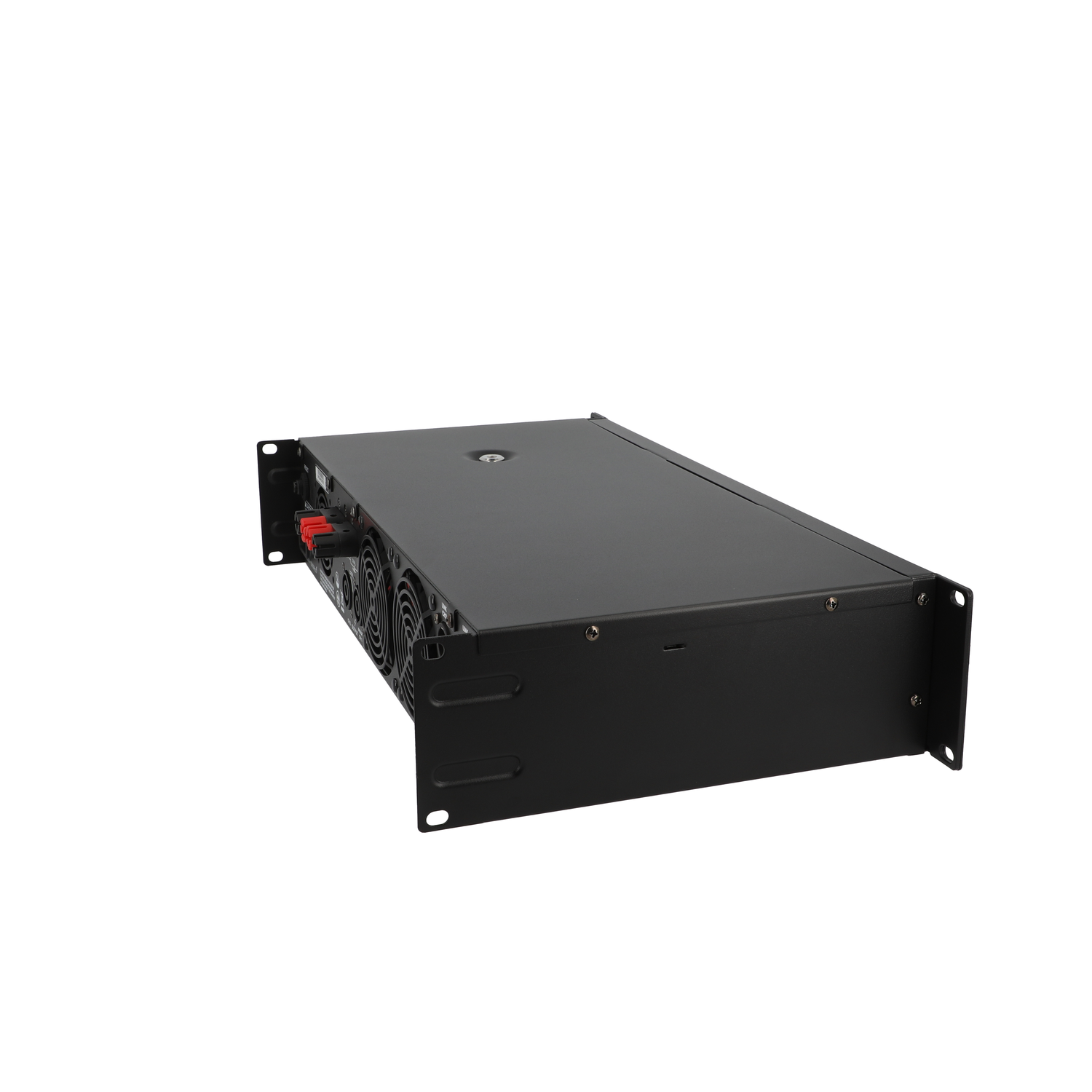

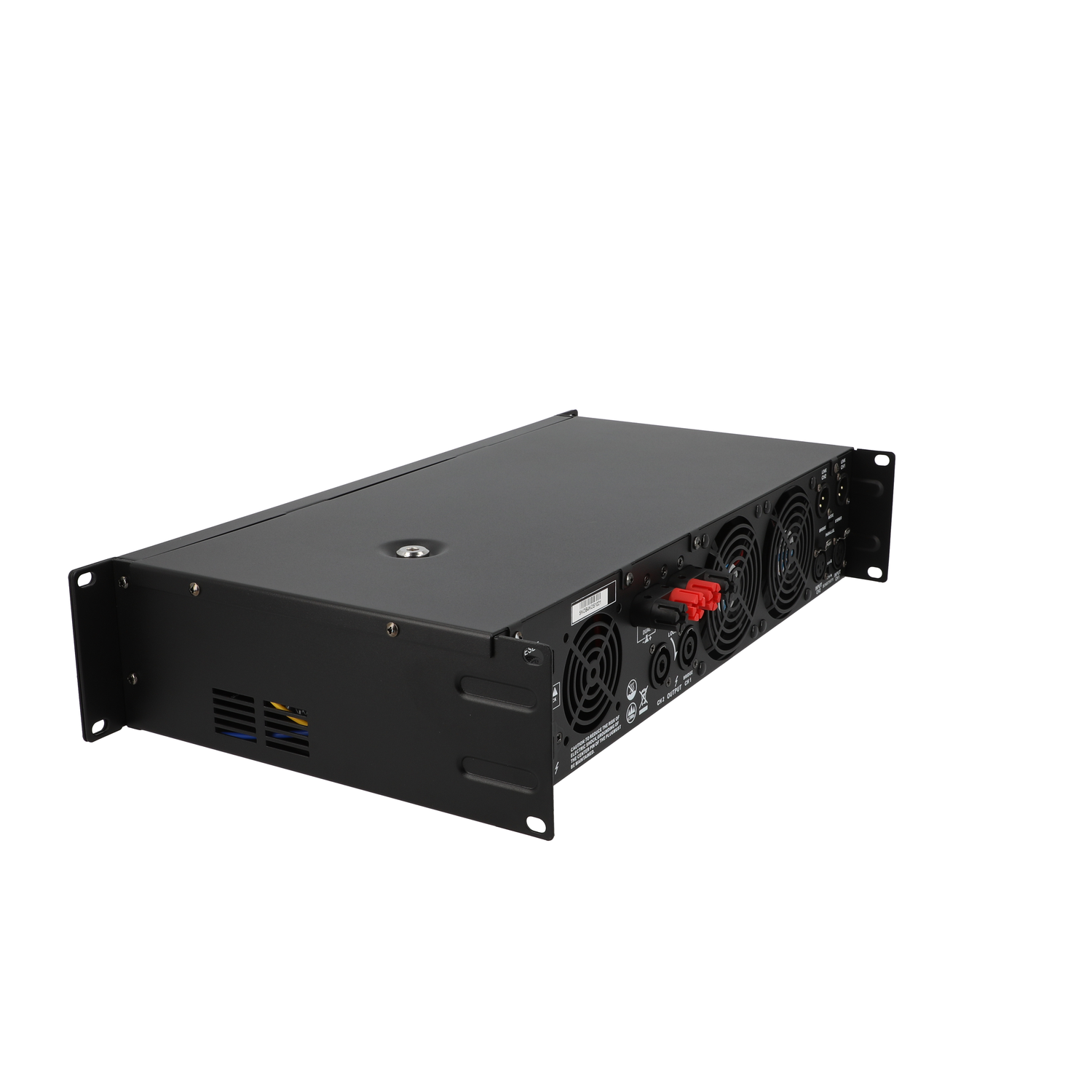

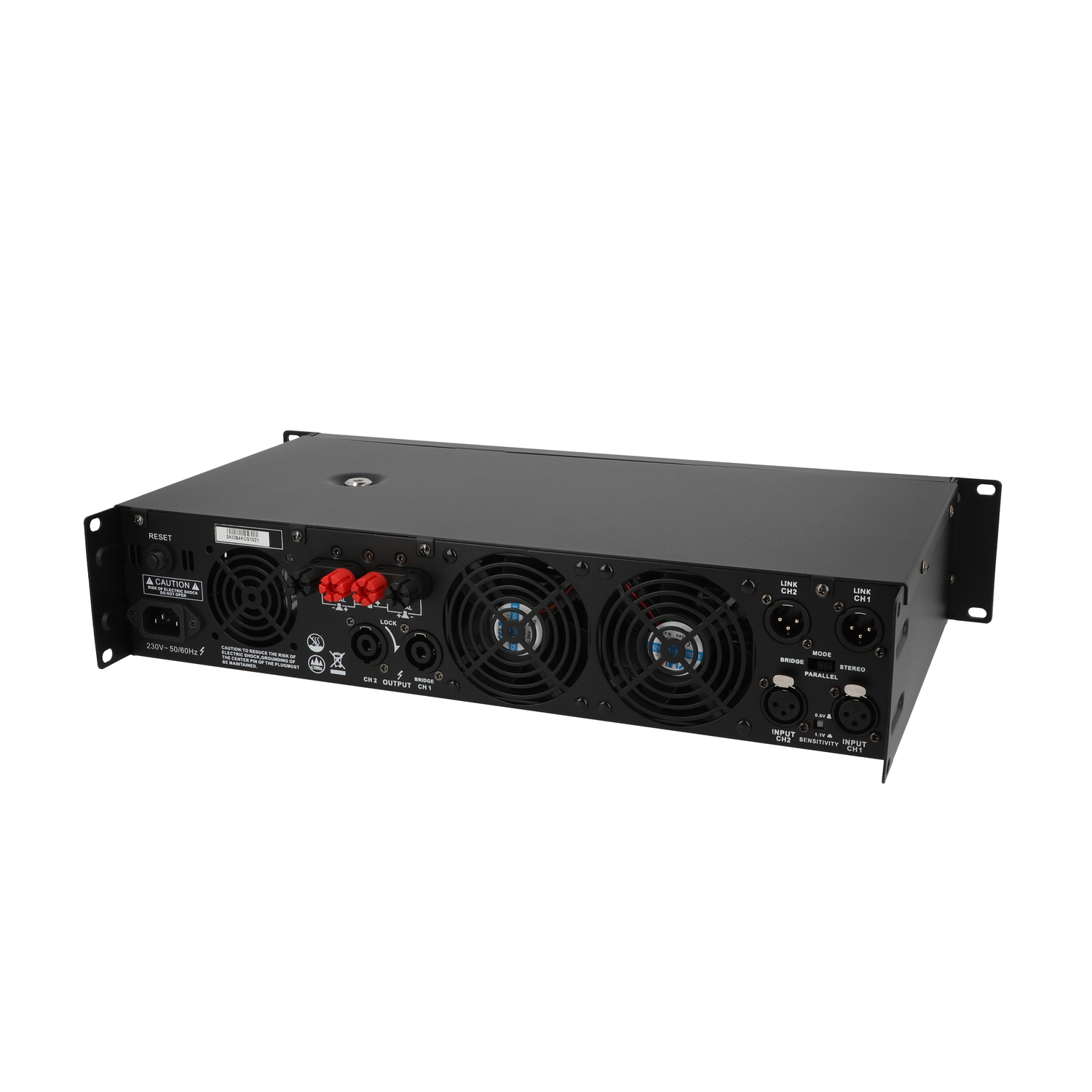

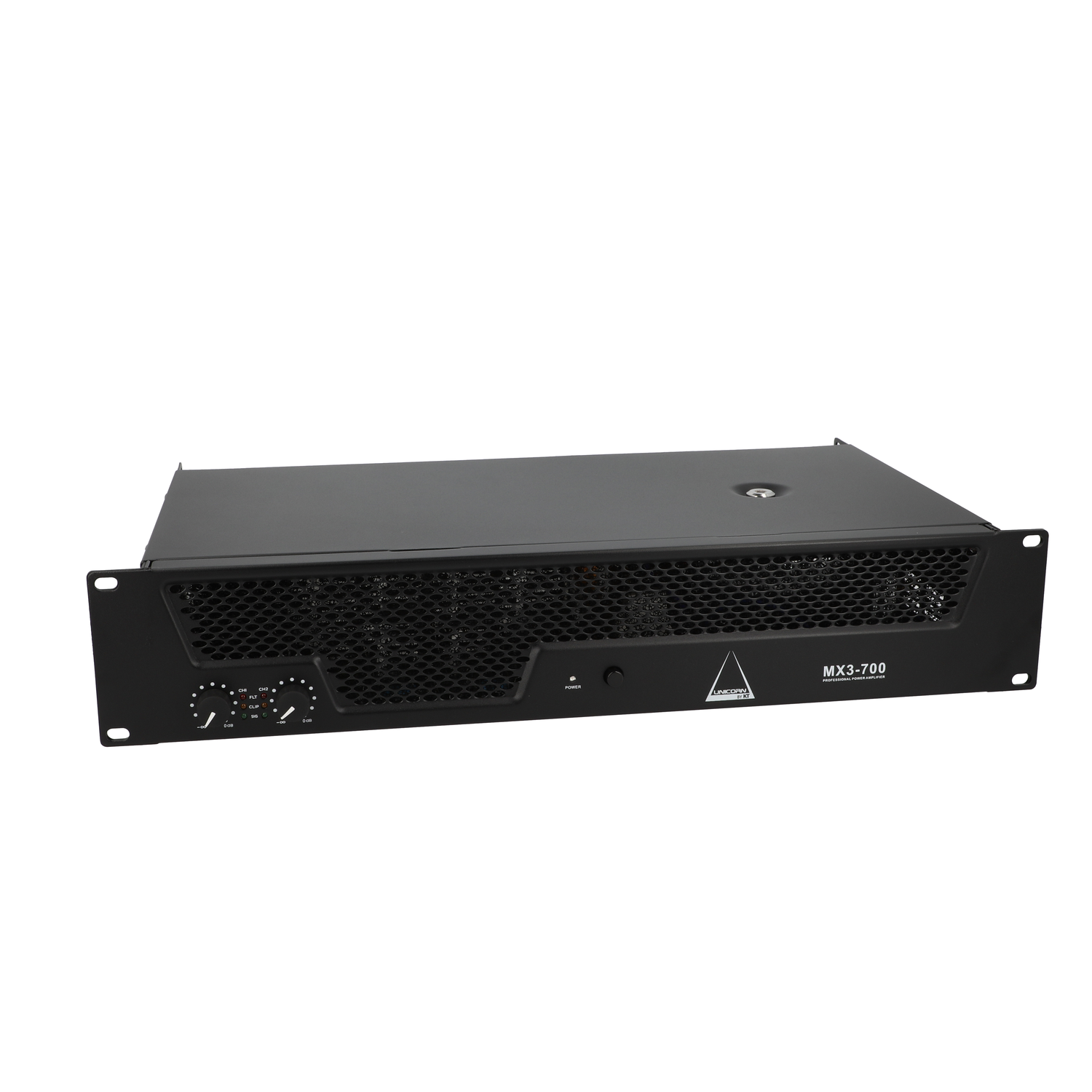

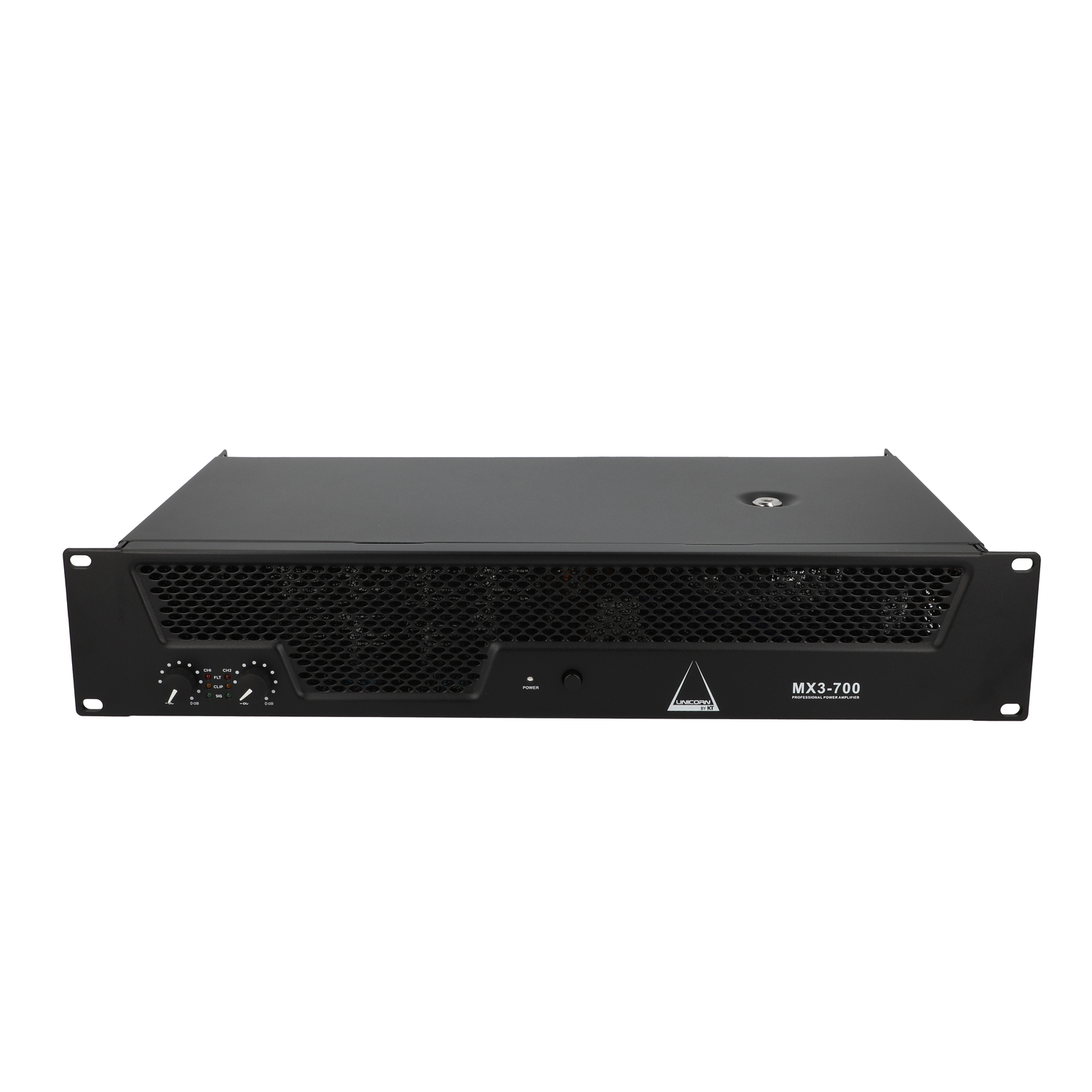

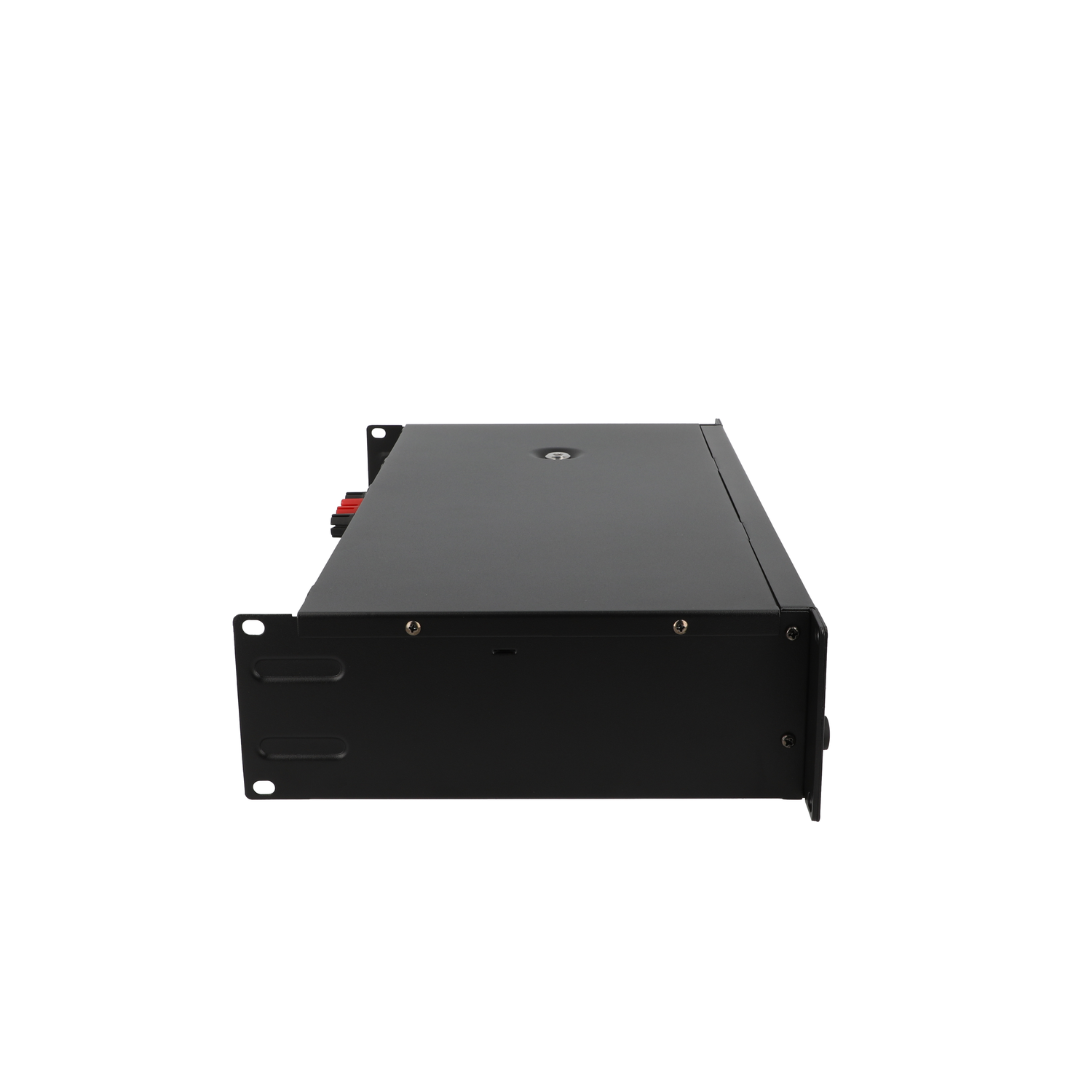

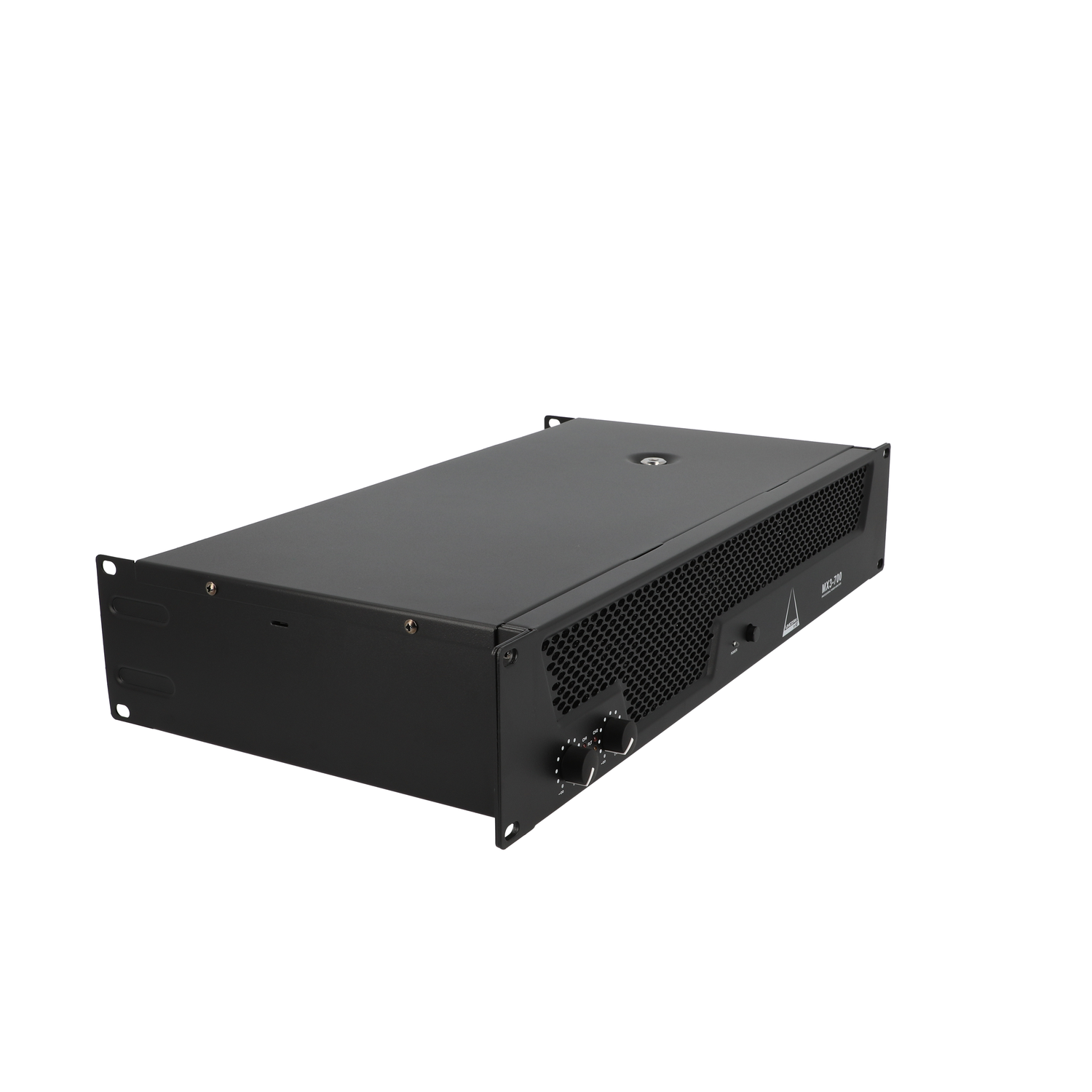

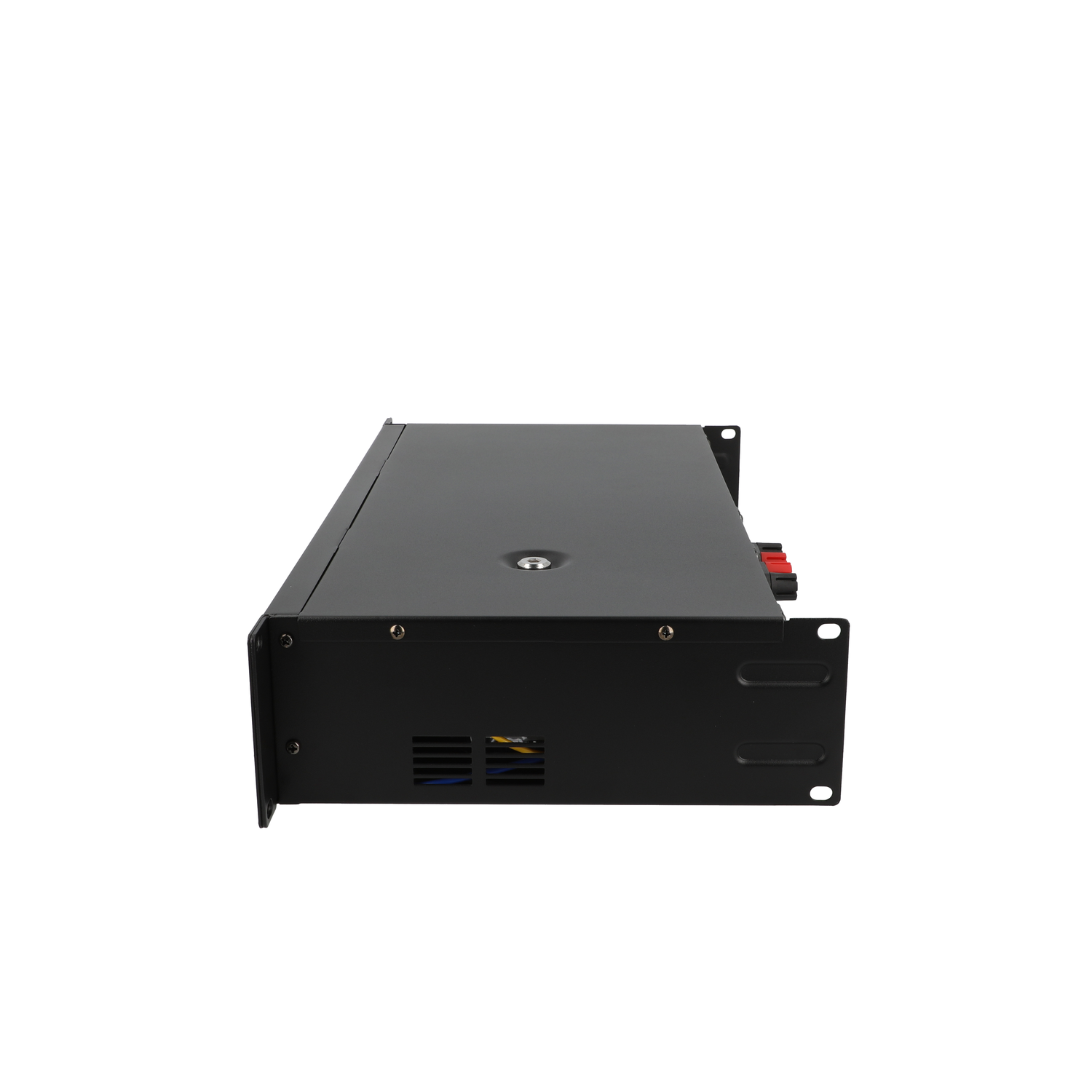

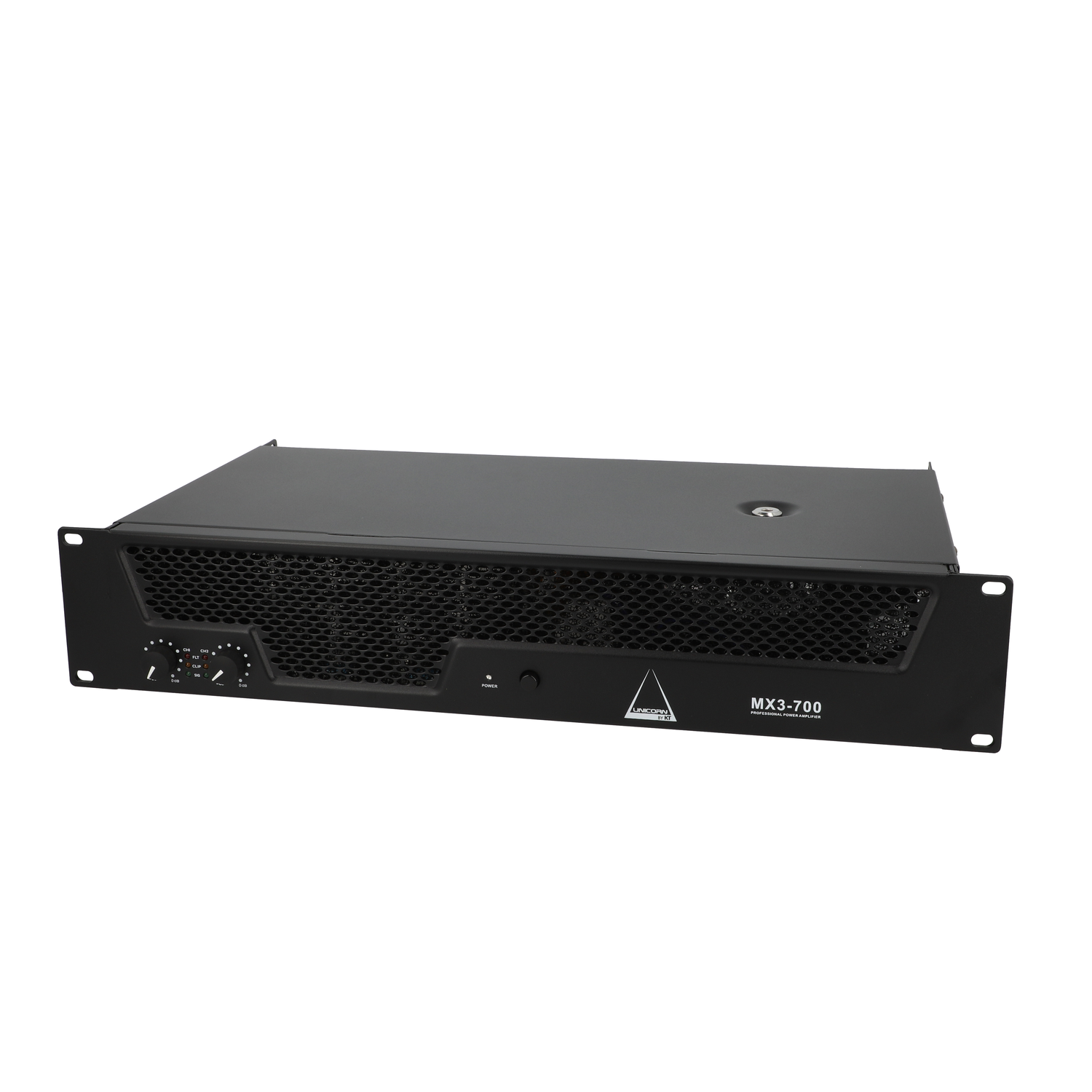

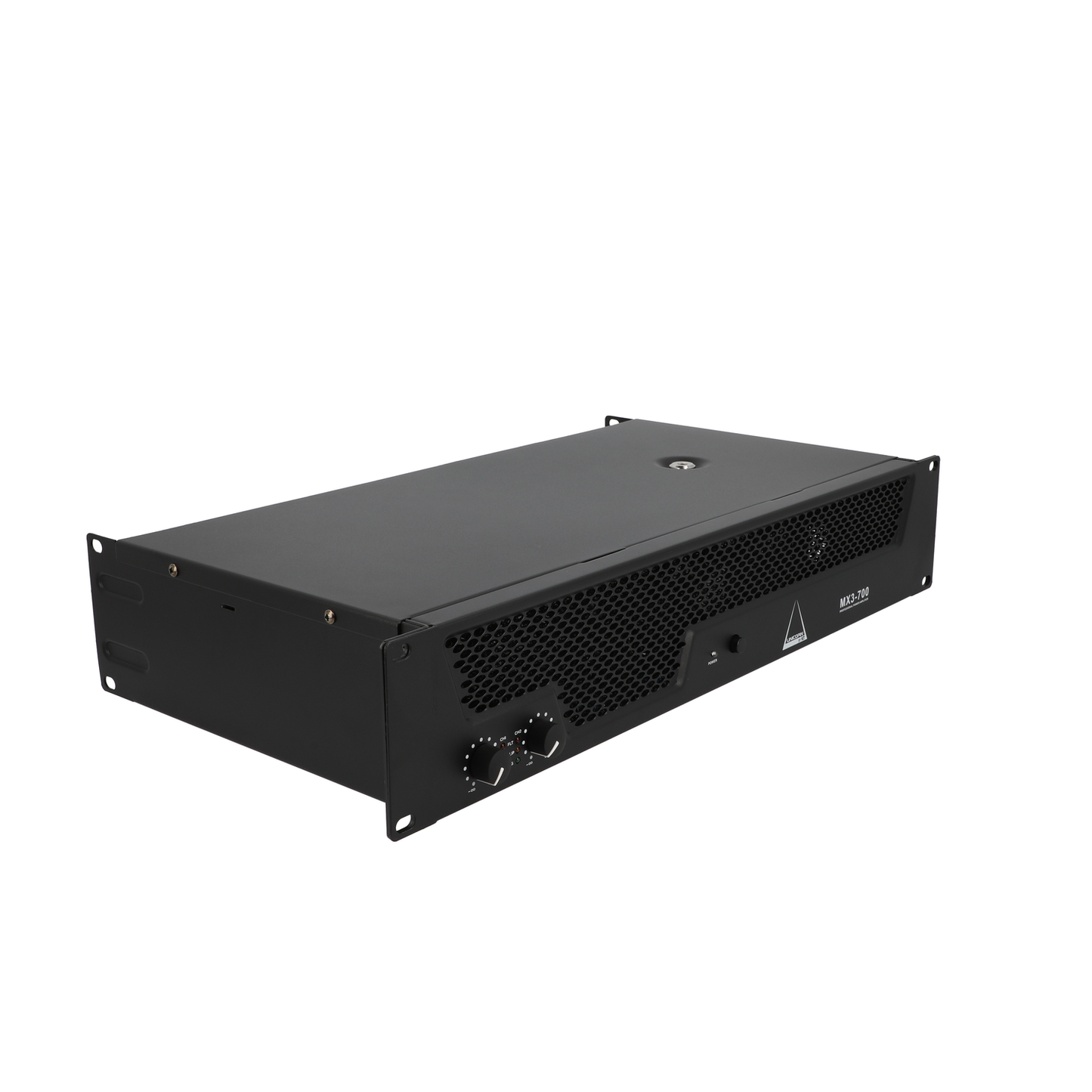

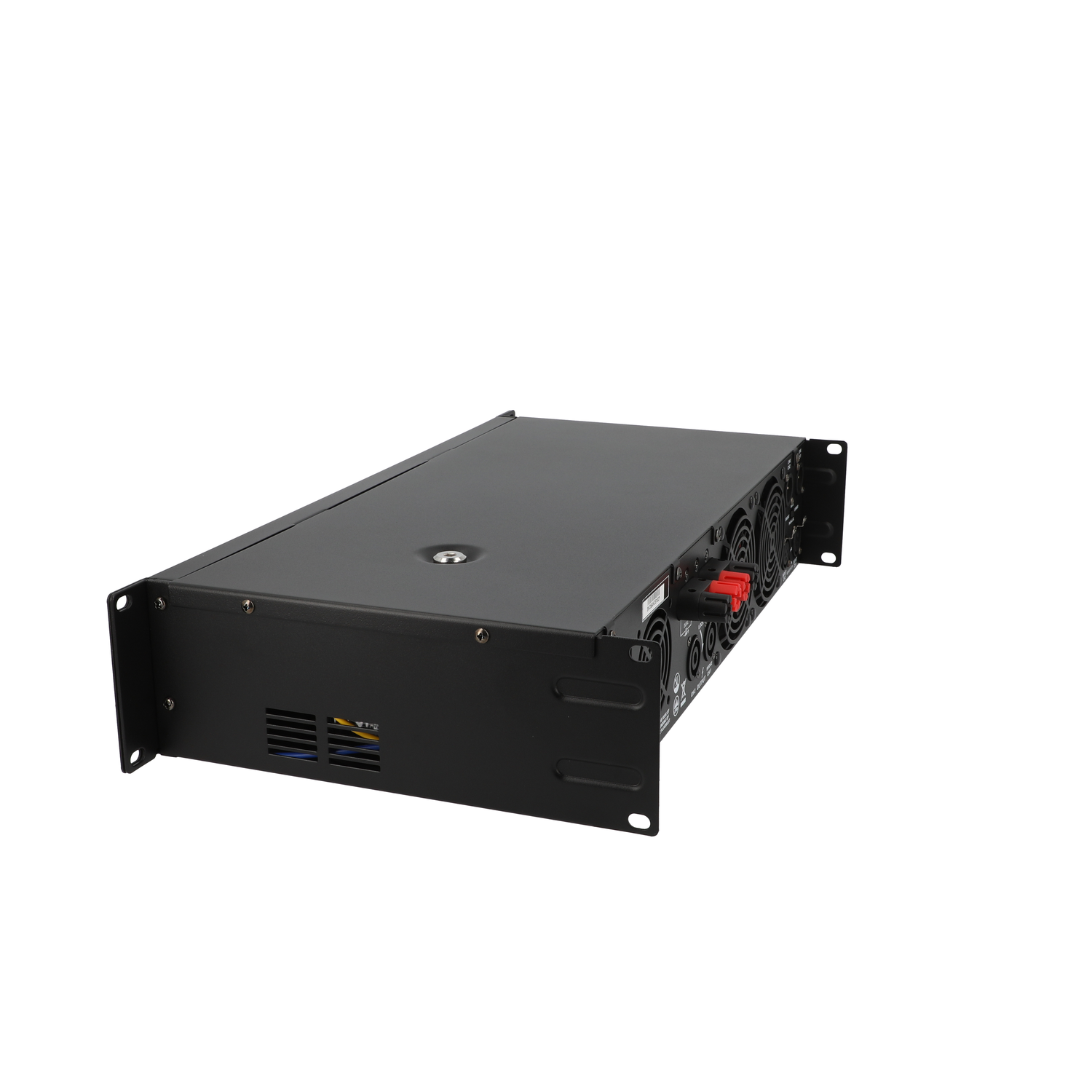

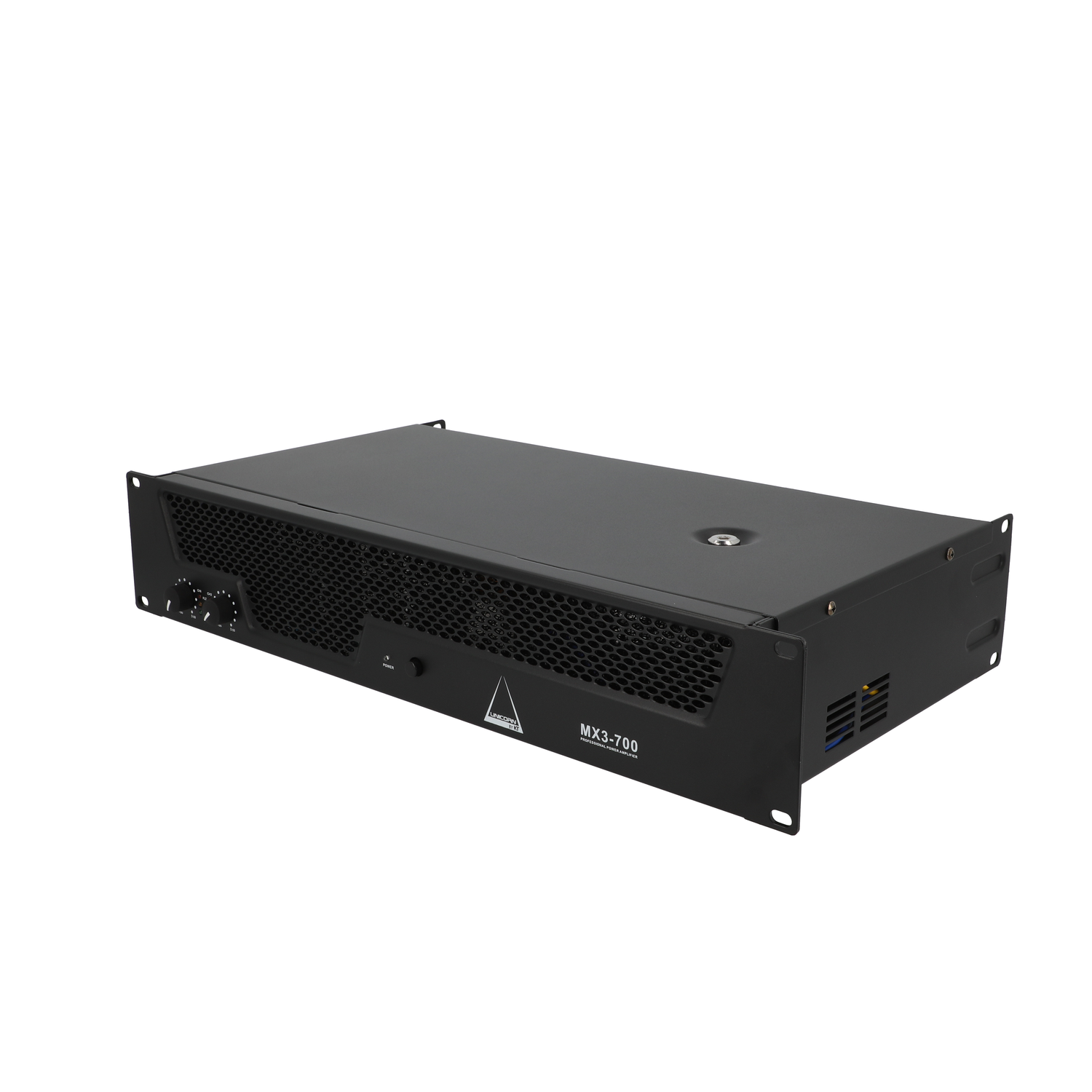

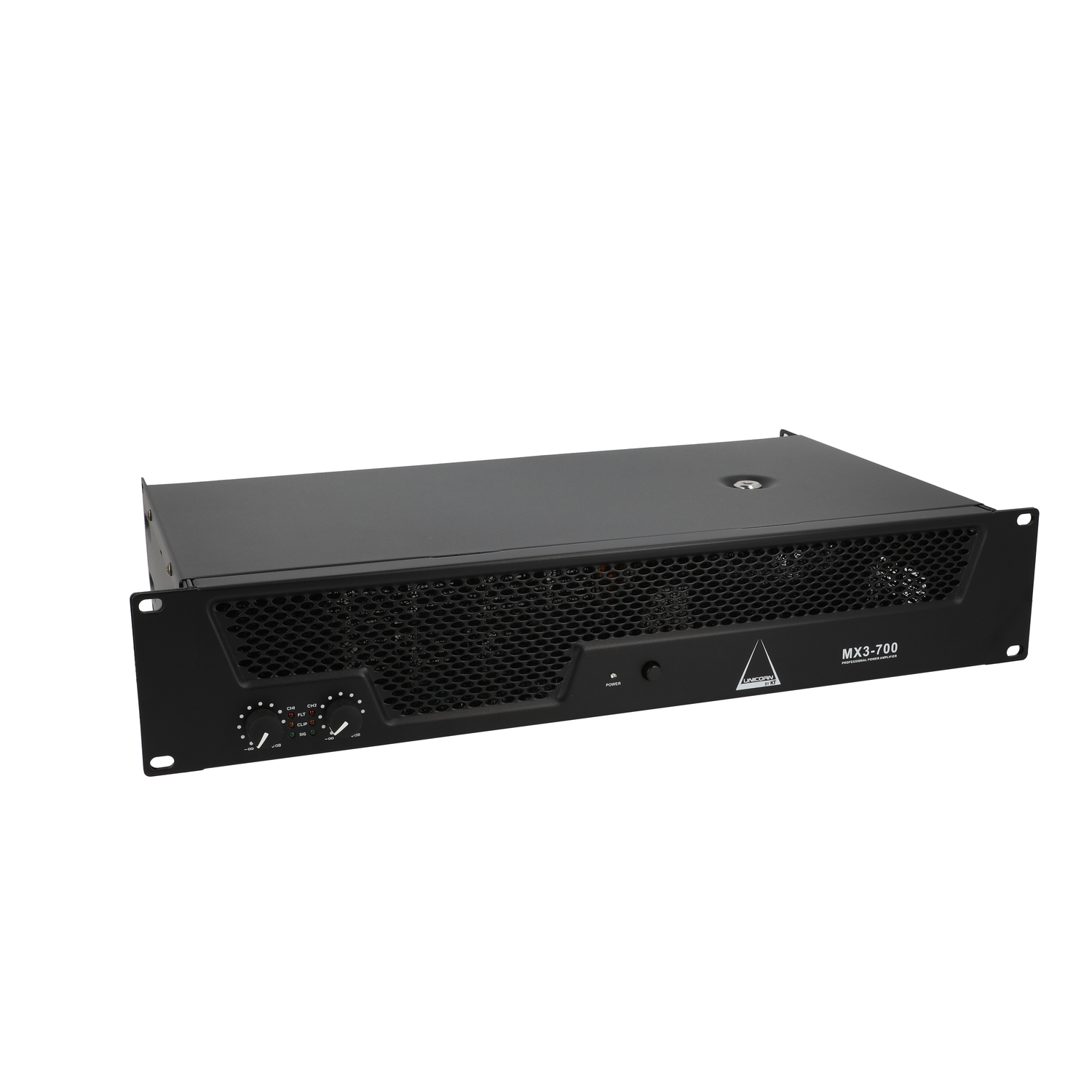

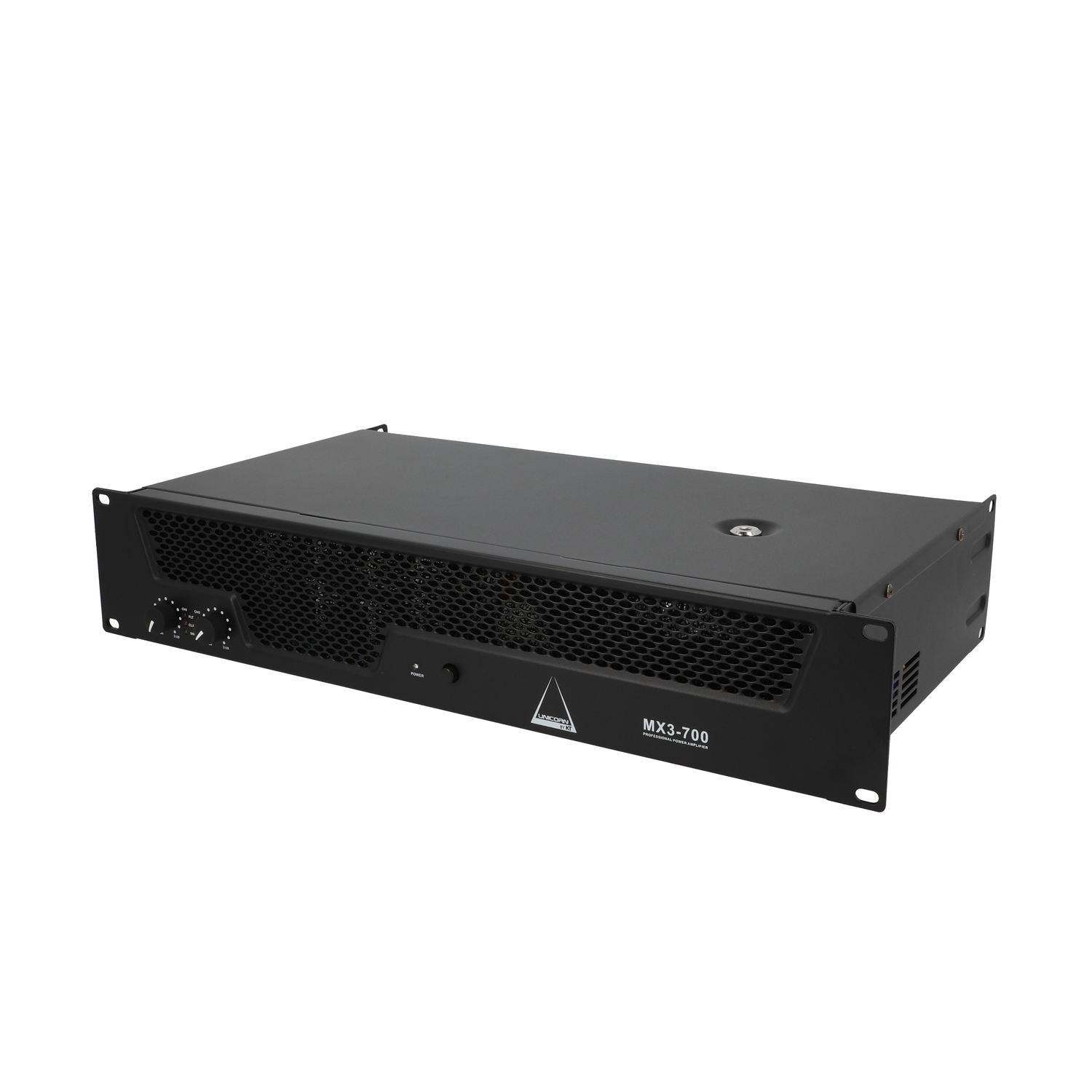

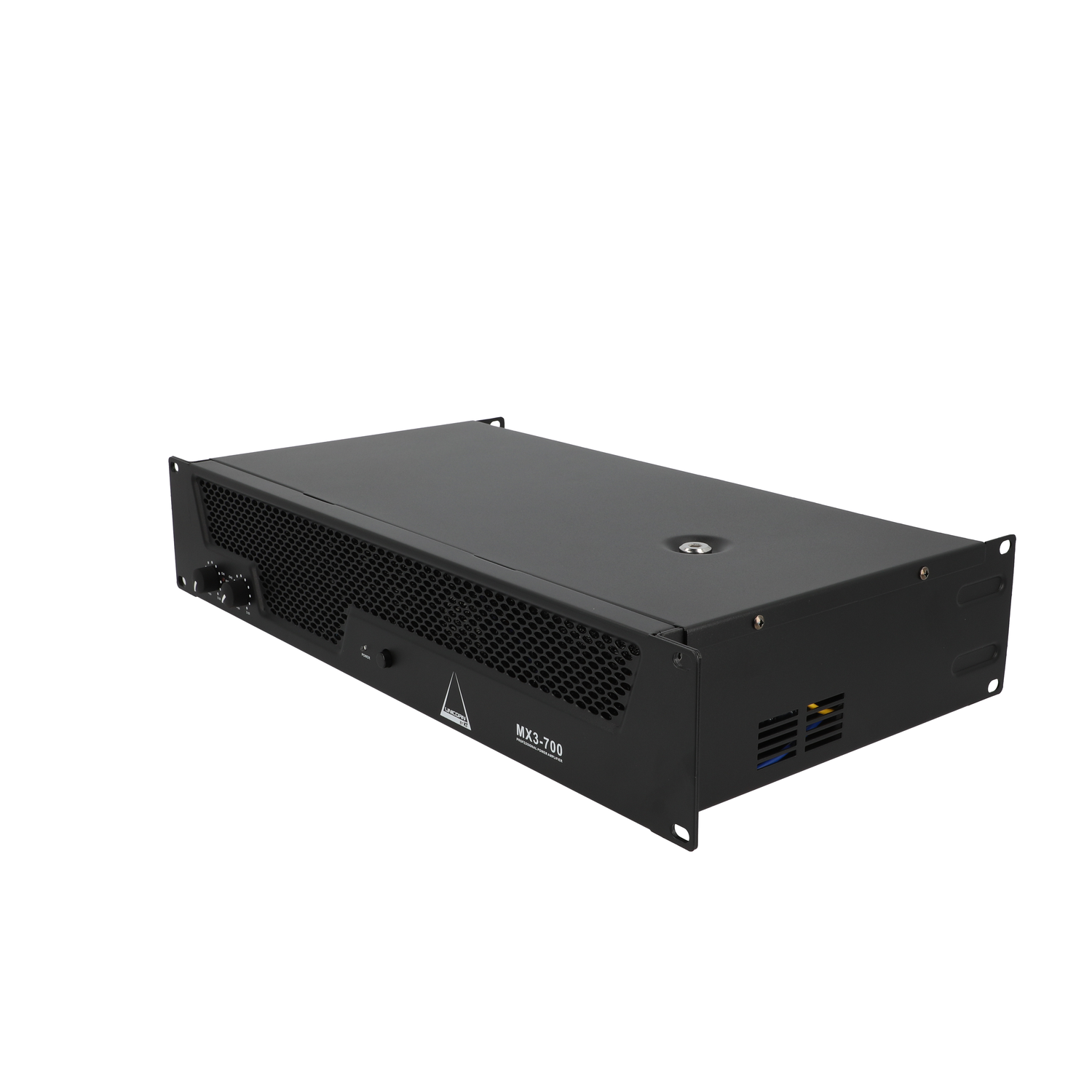

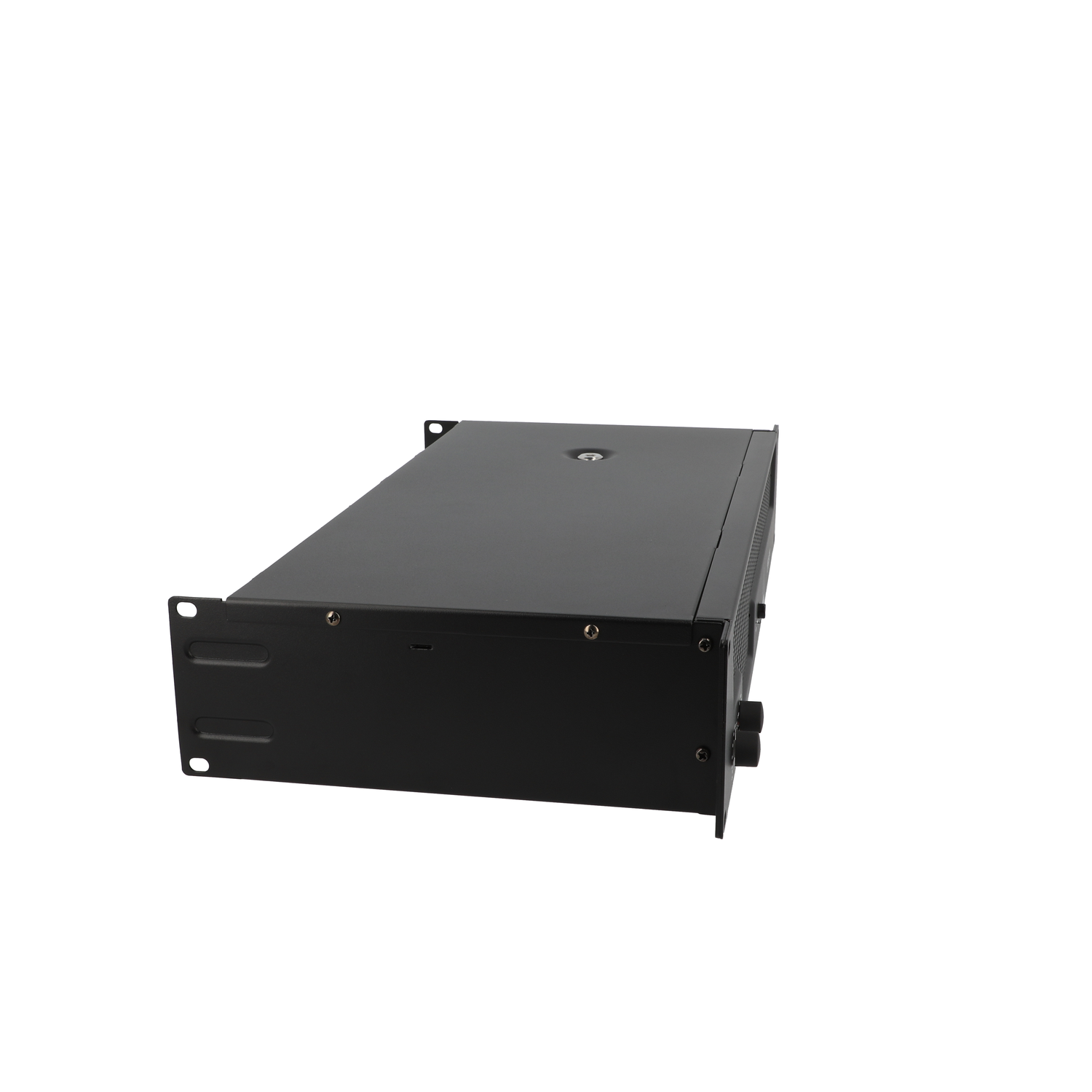

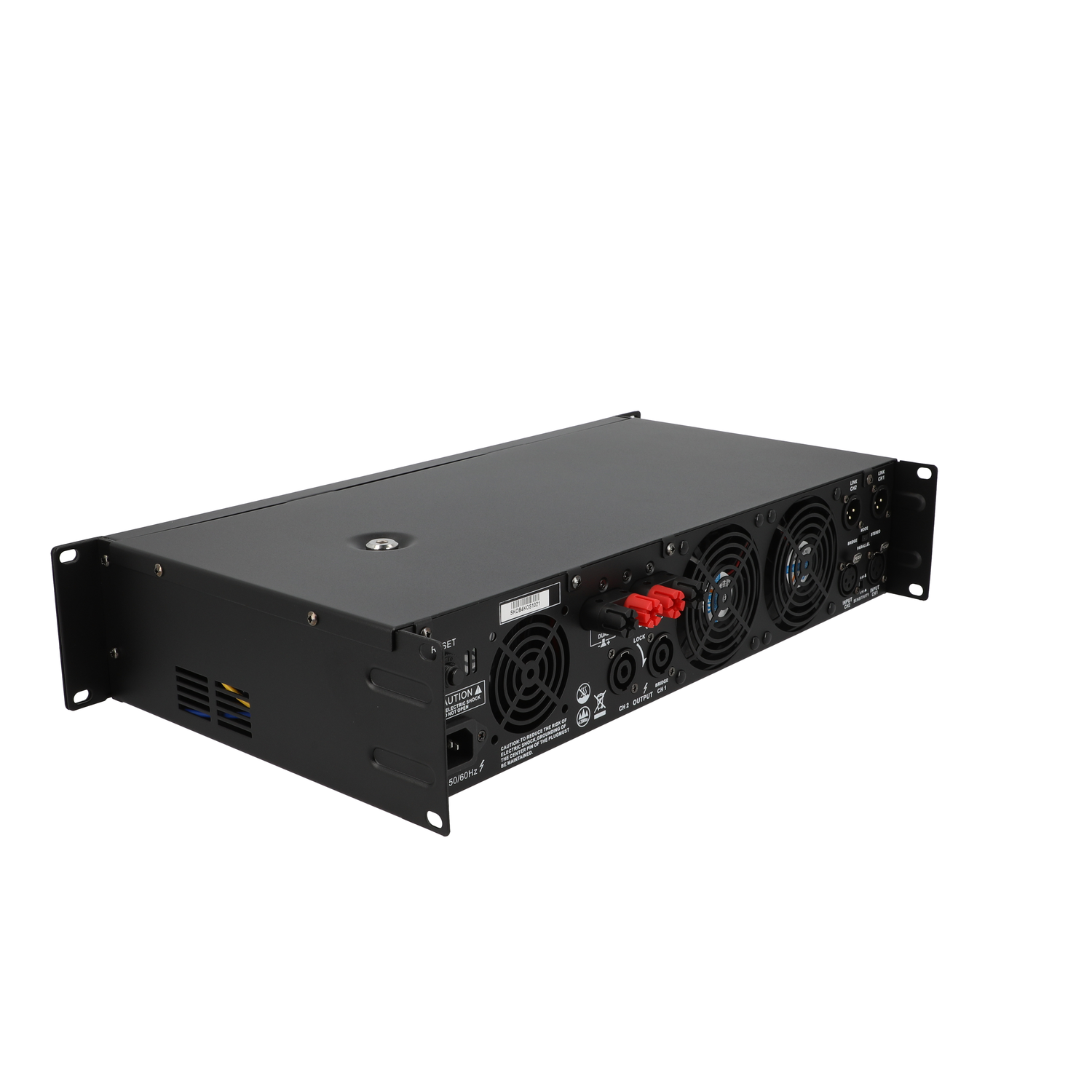

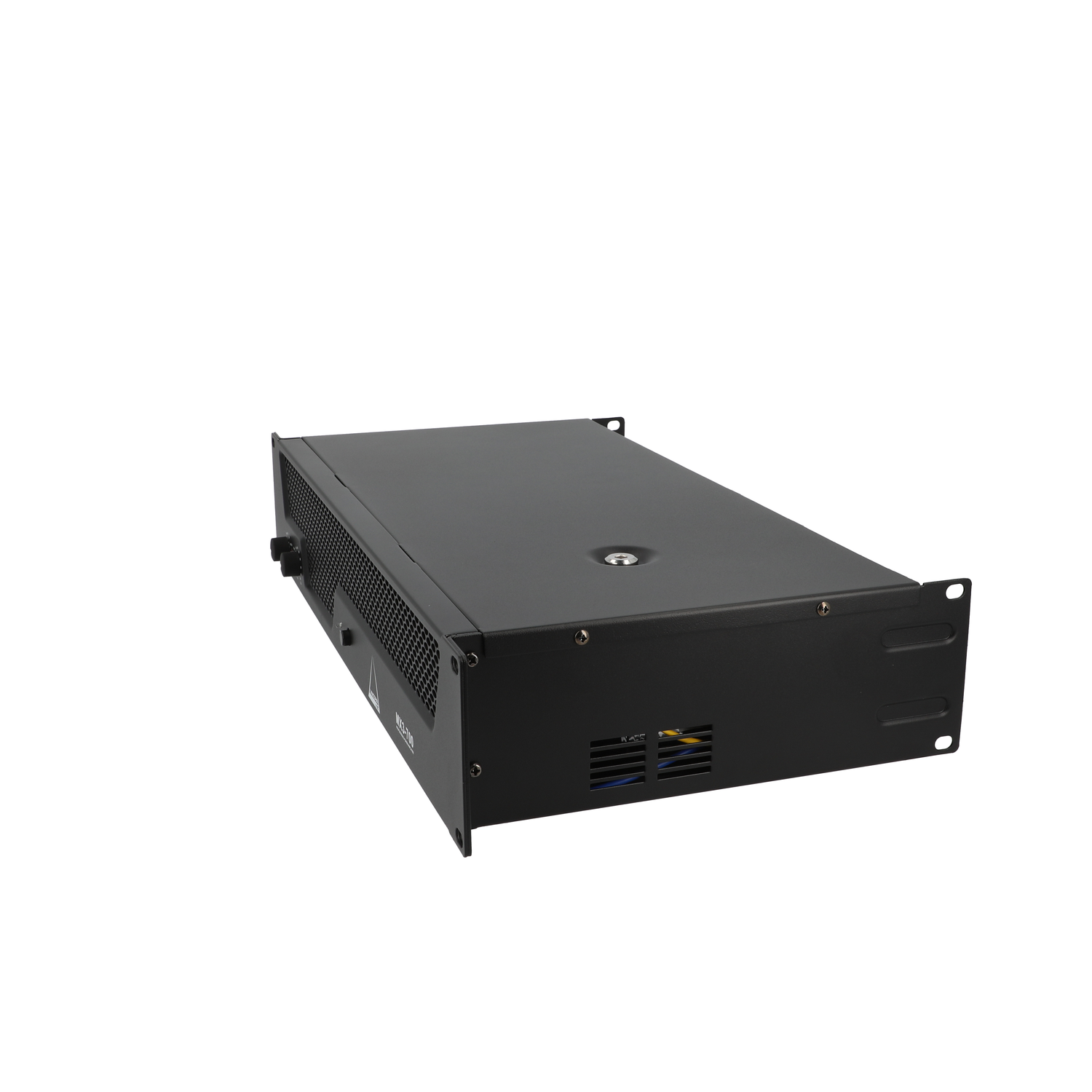

Unicorn MX3 - 700
Unicorn MX3 - 700
Couldn't load pickup availability

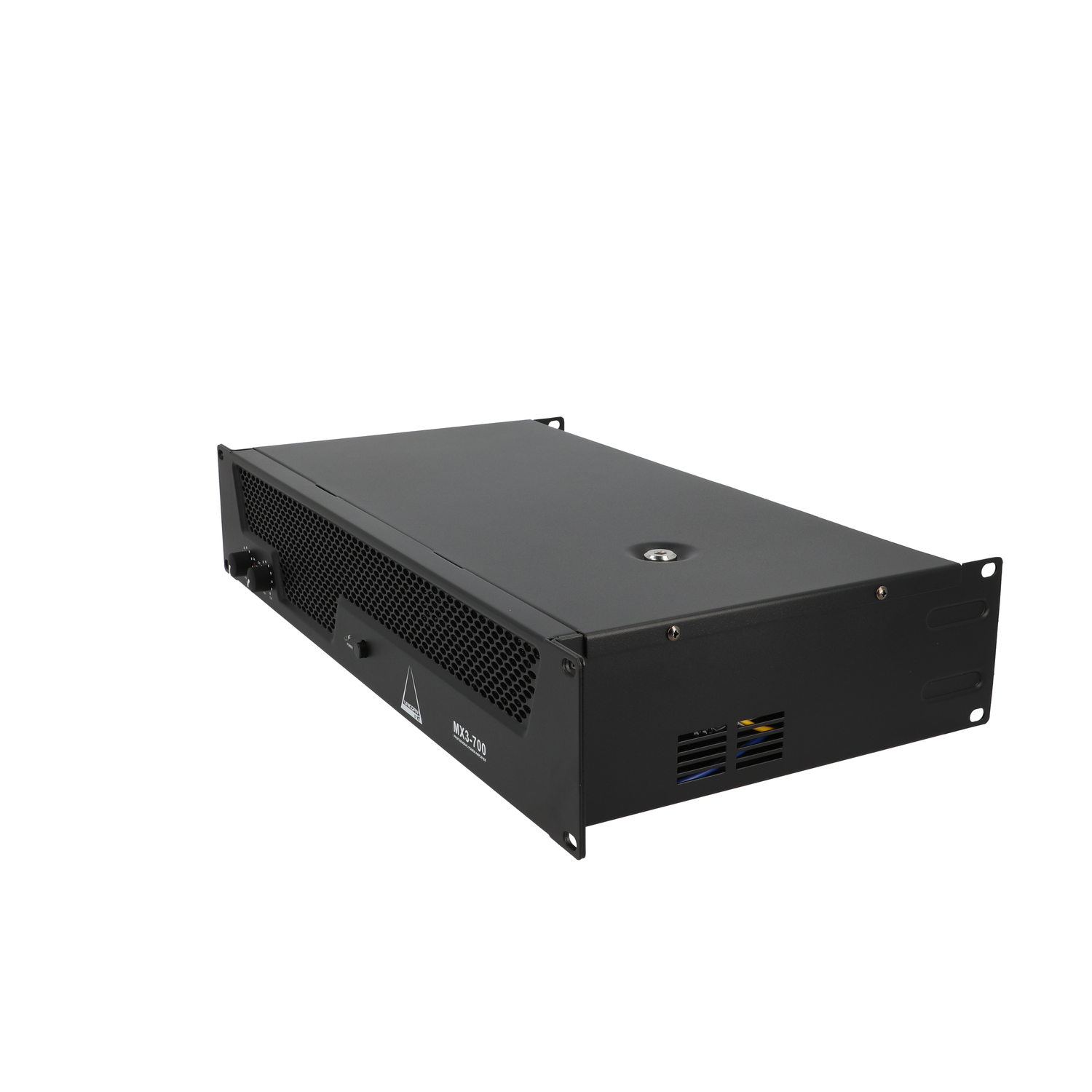

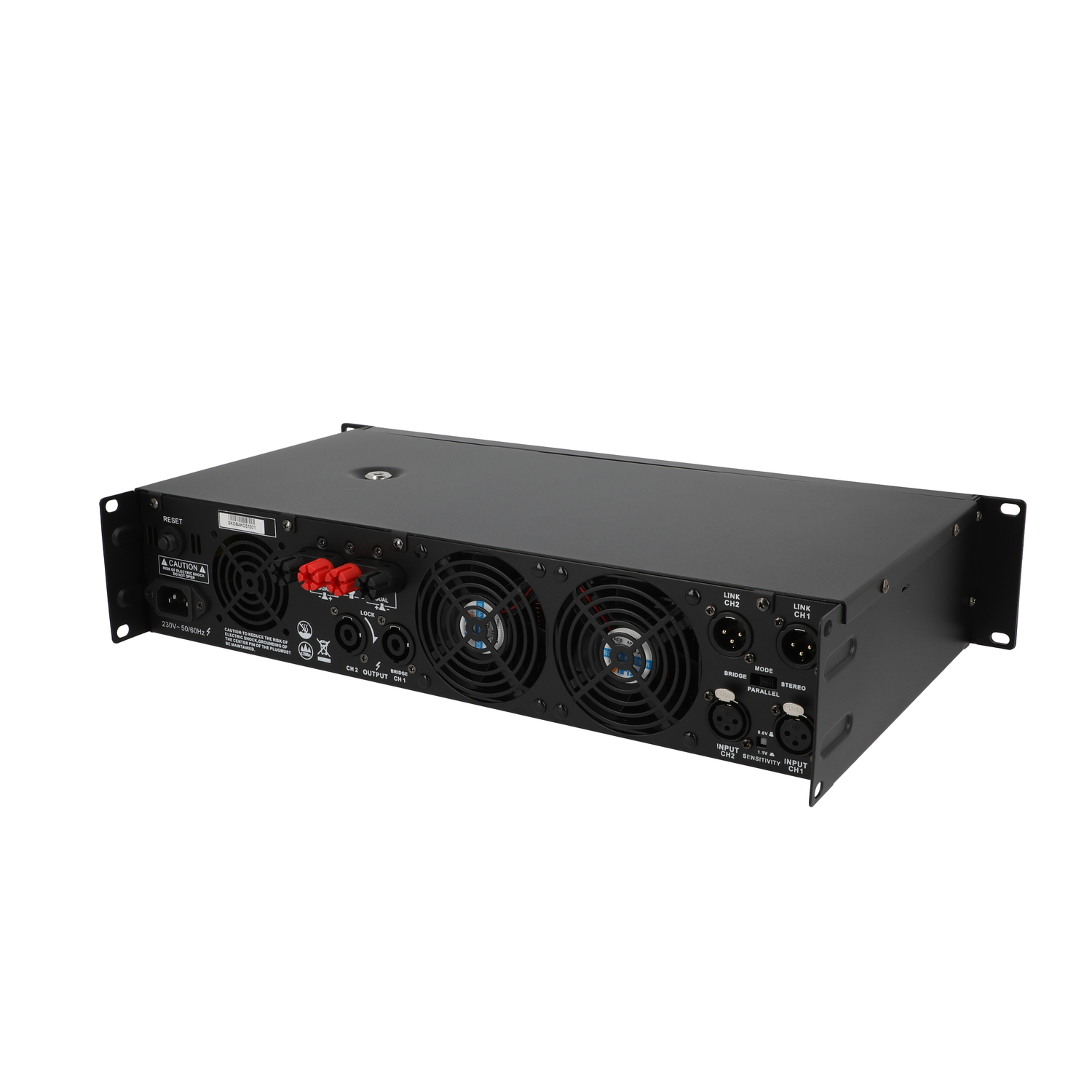

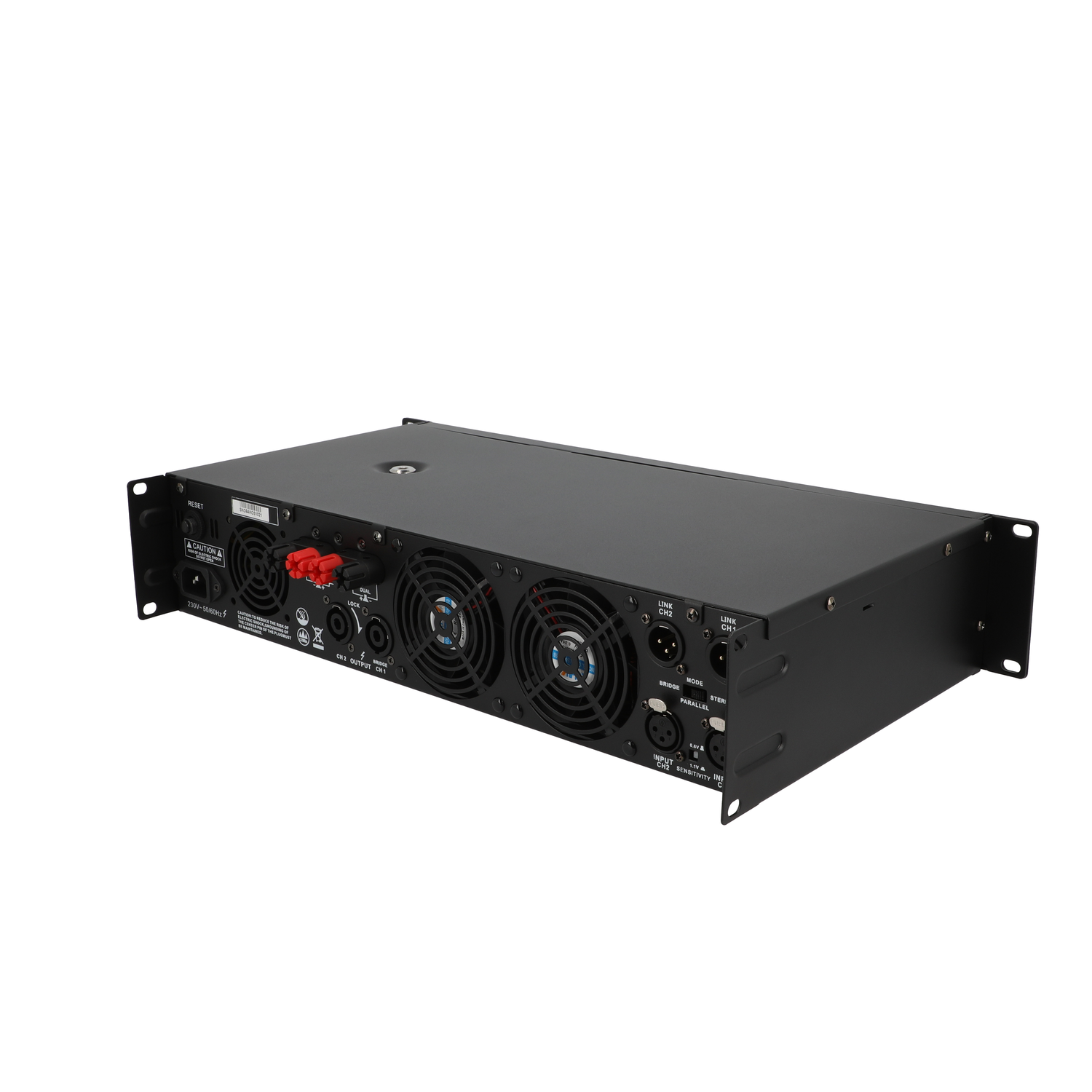

The Unicorn MX3-700 amplifier is a powerful and versatile amplifier, engineered for professional venues, live performance spaces, and more demanding sound reinforcement setups.
Delivering strong output power, reliable protection features, and stable thermal management, it is built to maintain consistent performance while preserving clarity and control across the audio range.
With its robust design, clean sonic character, and dependable operation, the MX3-700 is an excellent choice for professional users who require higher headroom, strong performance, and reliable amplification in challenging audio environments.
Key Features:
Key Features:
• Stereo Power (8 ohms): 2×700W
• Stereo Power (4 ohms): 2×1000W
• Bridge Power (8 ohms): 1×2000W
• Frequency Response: 20Hz–20KHz (±1dB)
• Voltage Gain: 37.5dB
• Input Sensitivity: 0.60V / 1.1V
• Input Impedance: 20kΩ (Balanced) / 10kΩ (Unbalanced)
• Damping Factor: >200 (8Ω, 10Hz–400Hz)
• Signal to Noise Ratio: >100dB (below rated power, 20Hz–20KHz, A-weighted)
• Total Harmonic Distortion (THD): <1%, 100Hz–20KHz
• Intermodulation Distortion: ≤0.35%
• Slew Rate: >10V/us
• Power Cord Specification: Plug 10A, 250V; Wire 3×1.0mm²
• Protection: Protection against short circuits, no-load, on/off muting, RF interference
• Ventilation: Flow-through ventilation from front to back
• Cooling: Internal heat sinks with forced air, fan cooled, speed regulated, thermal protection
• Dimensions (W×D×H): 482×225×88mm
• Weight: 11.5kg
