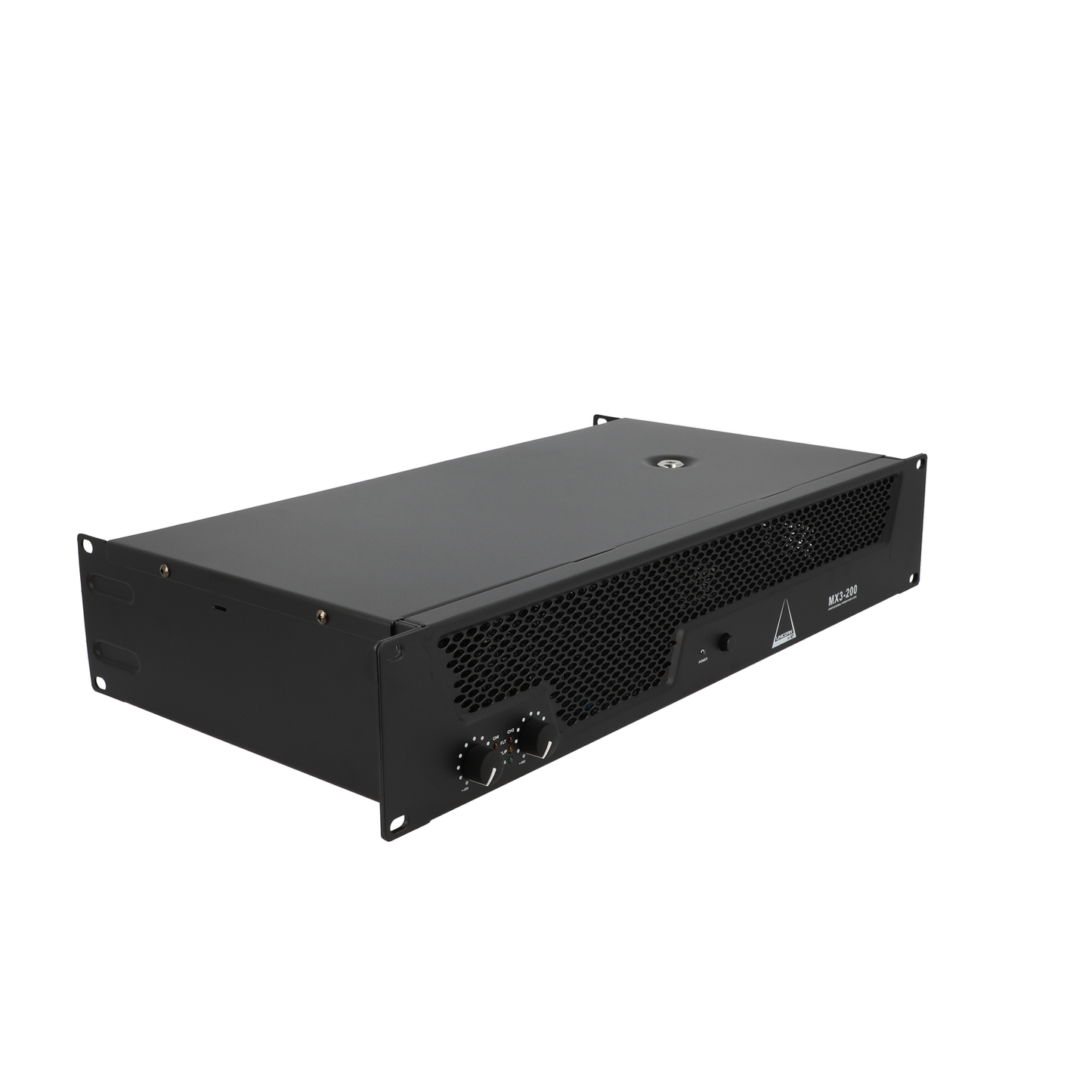

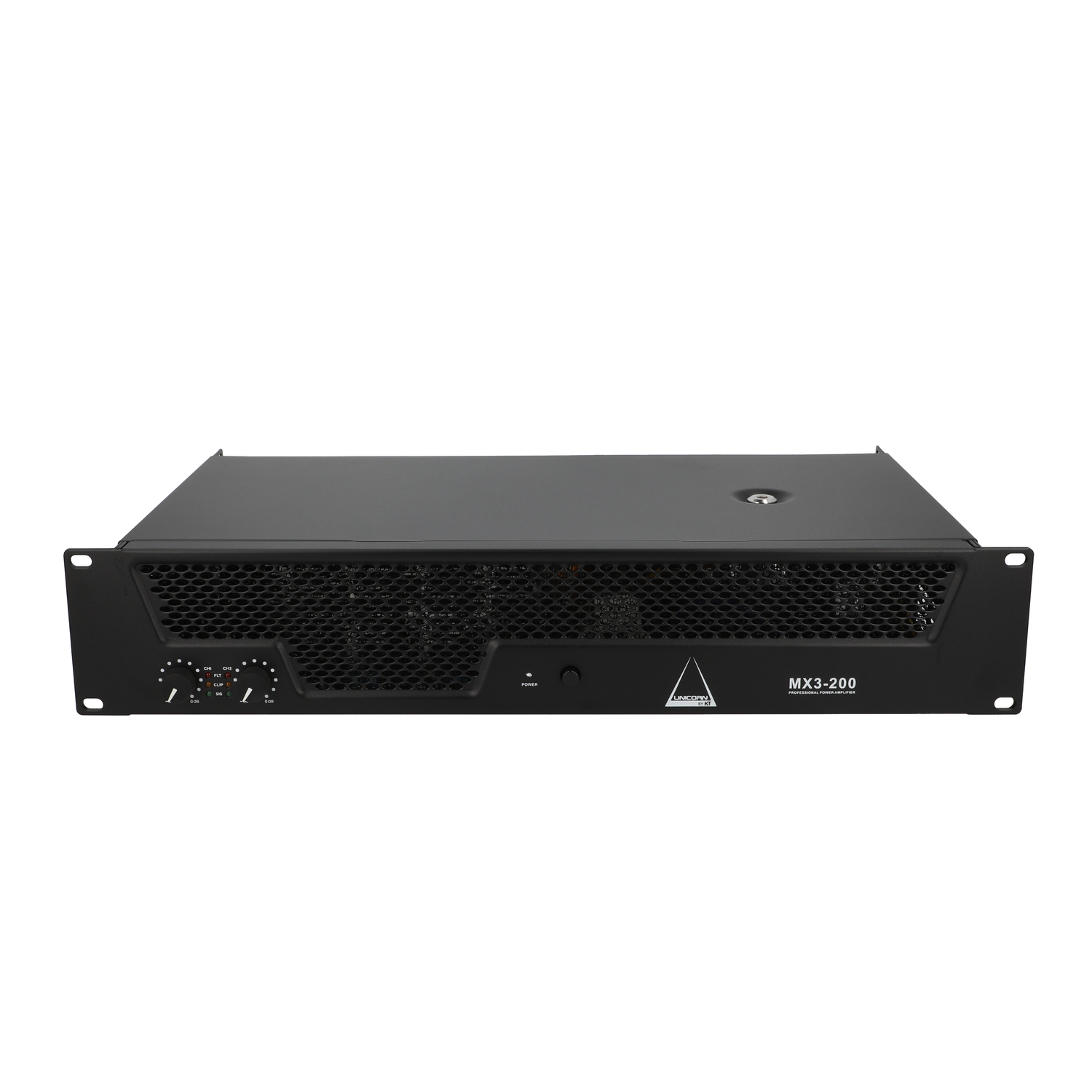

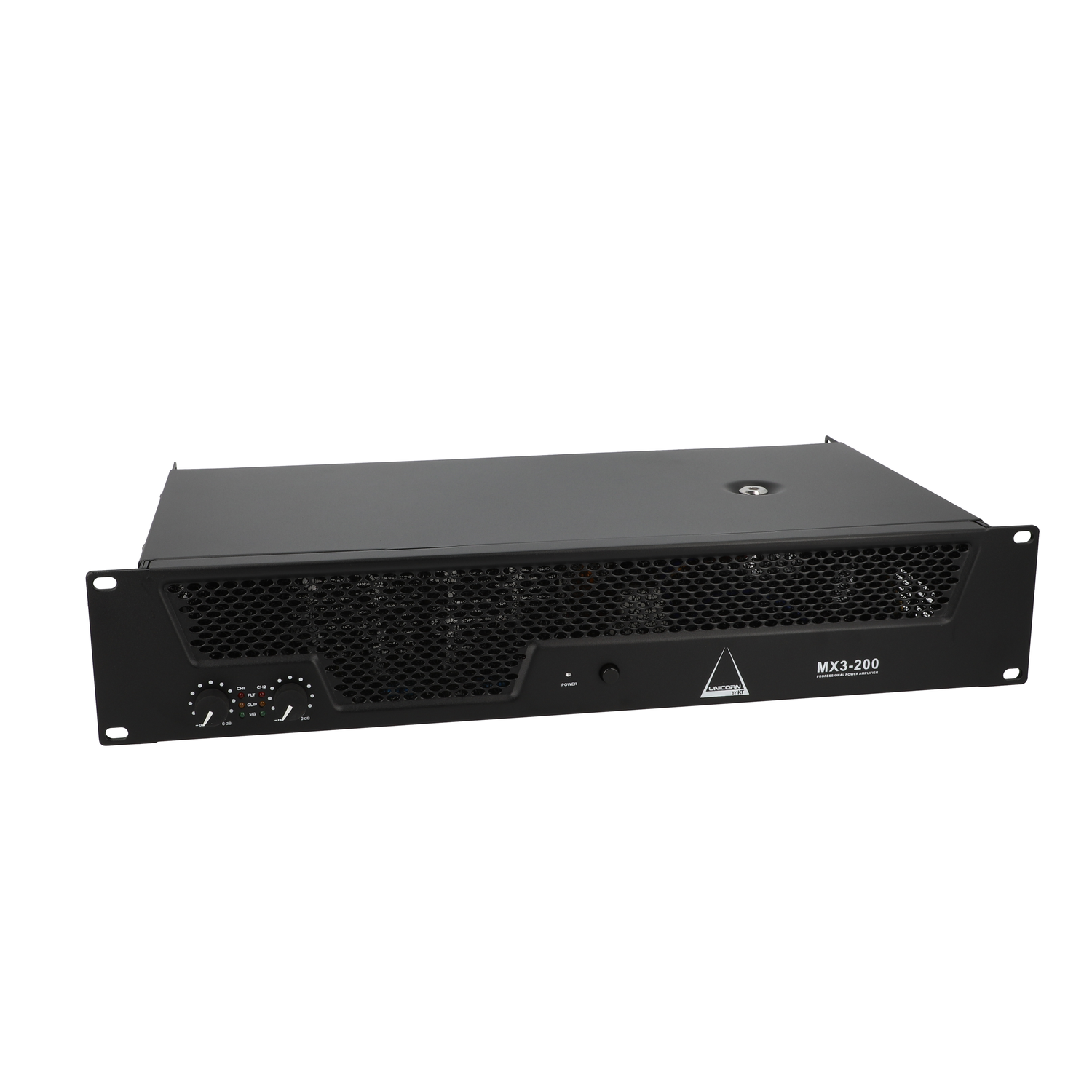

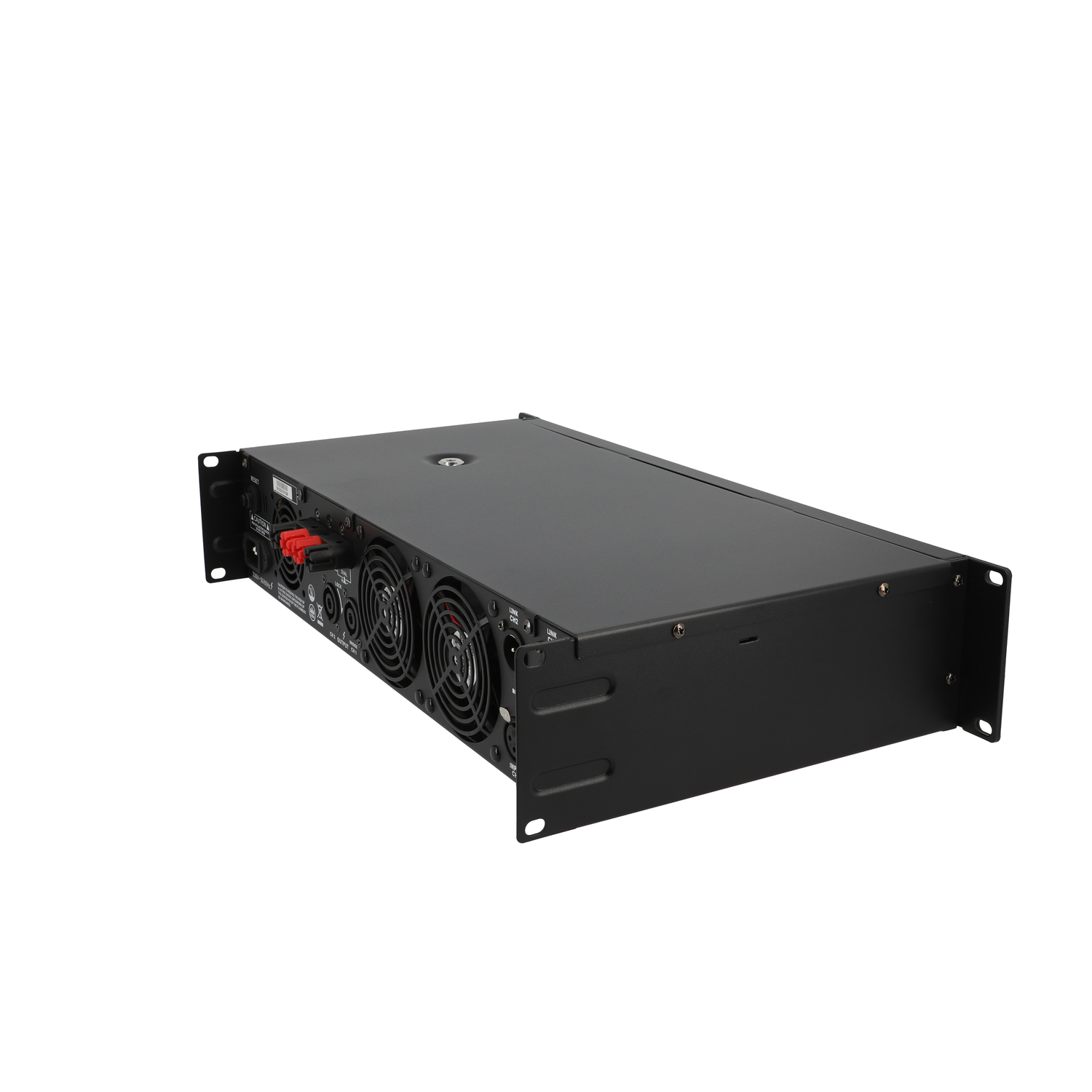

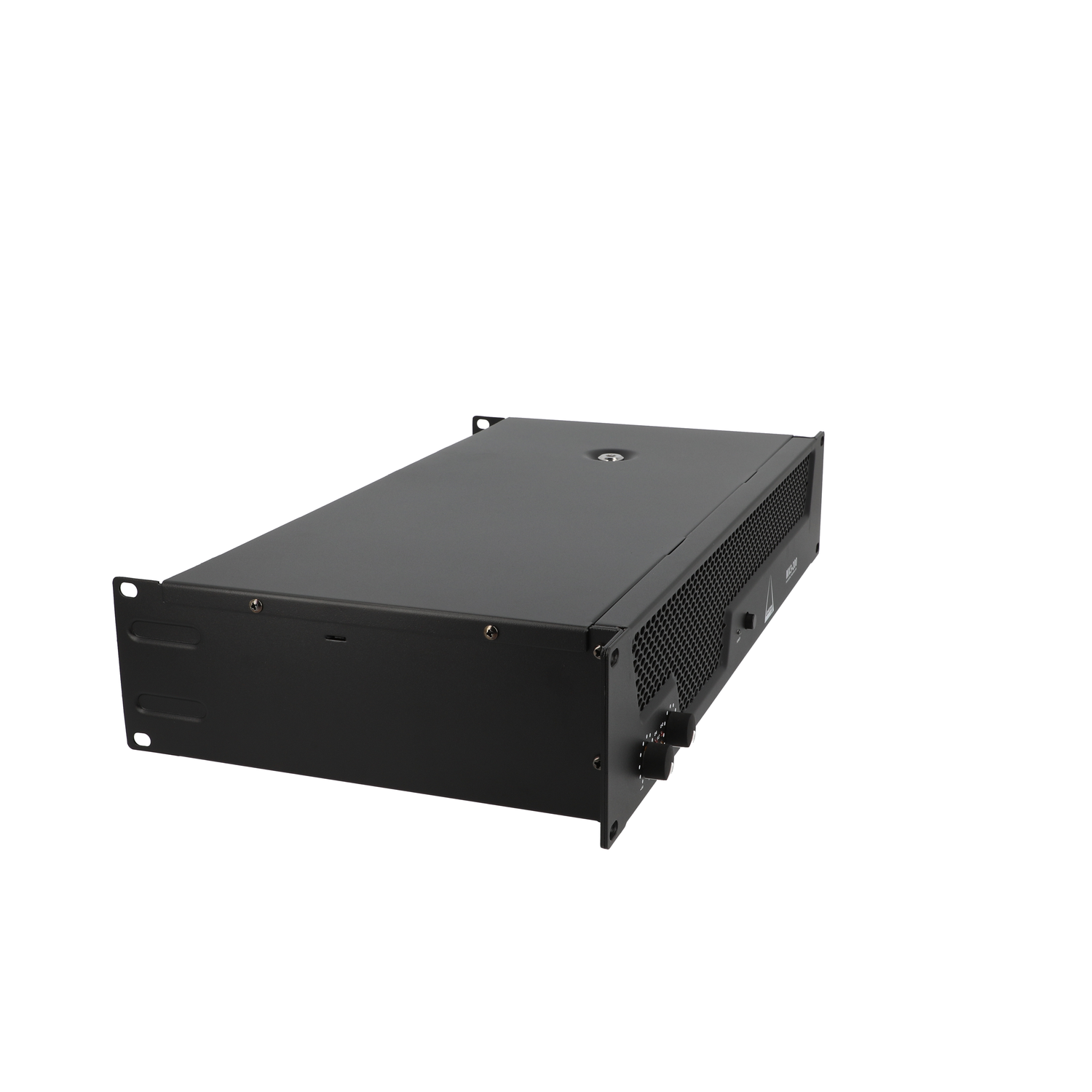

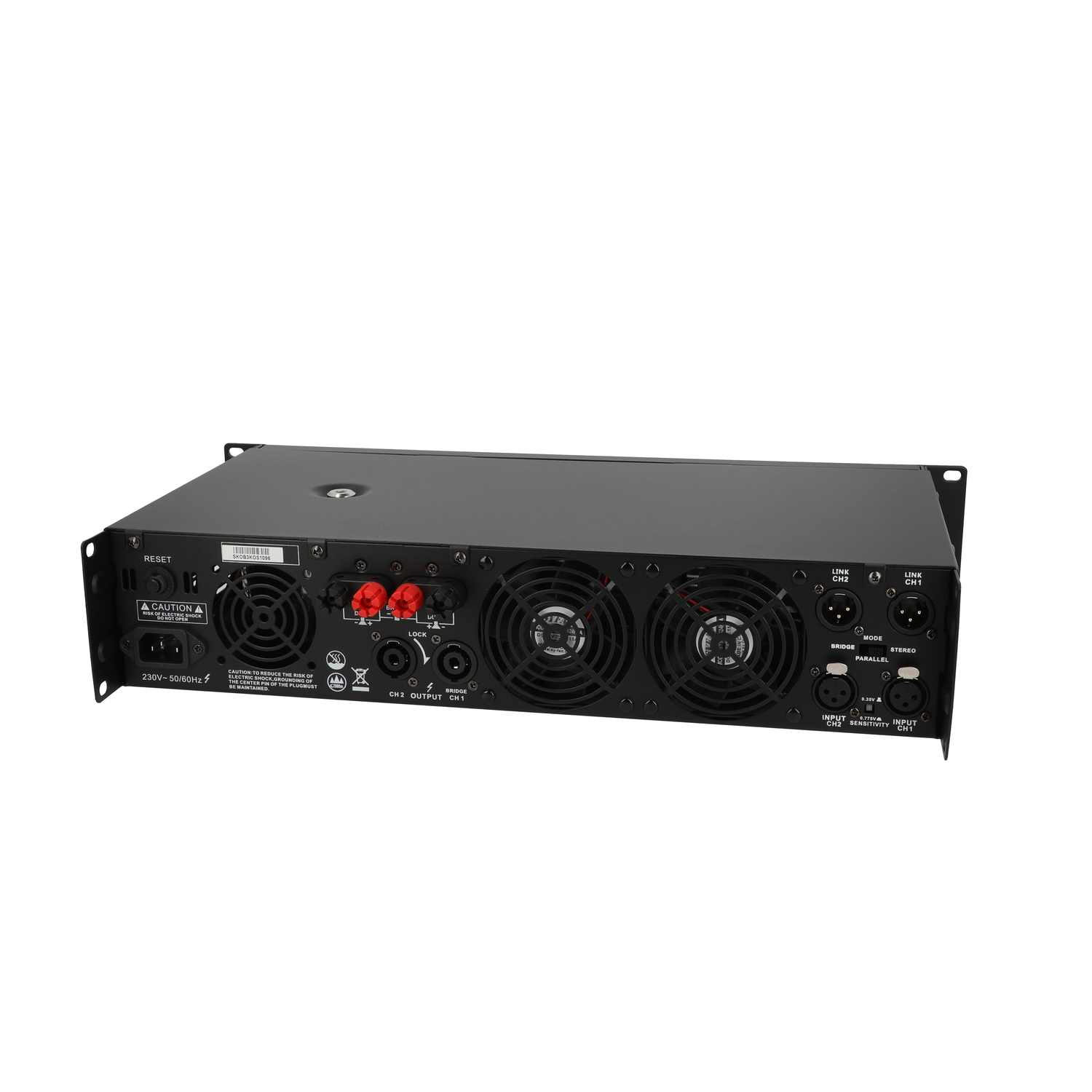

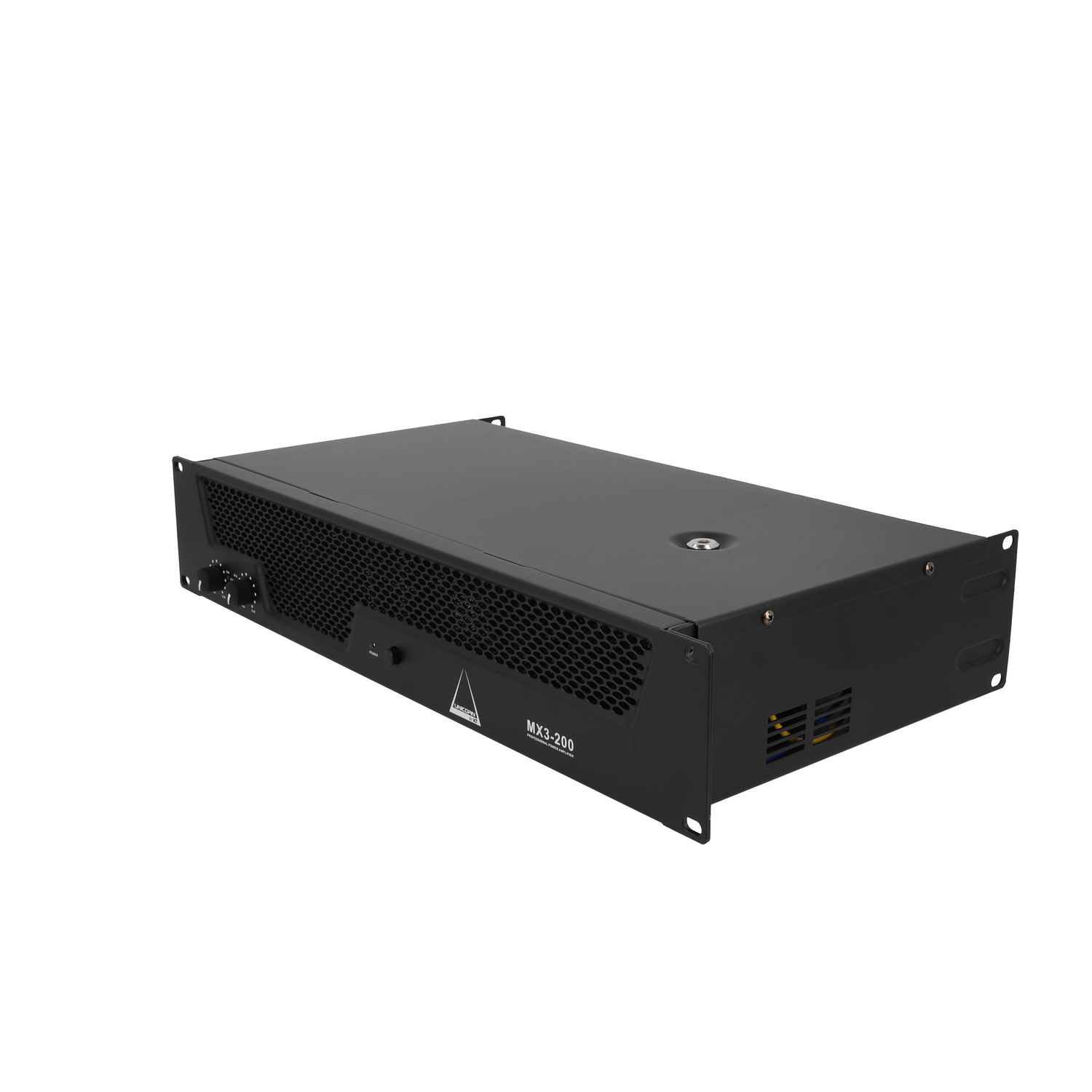

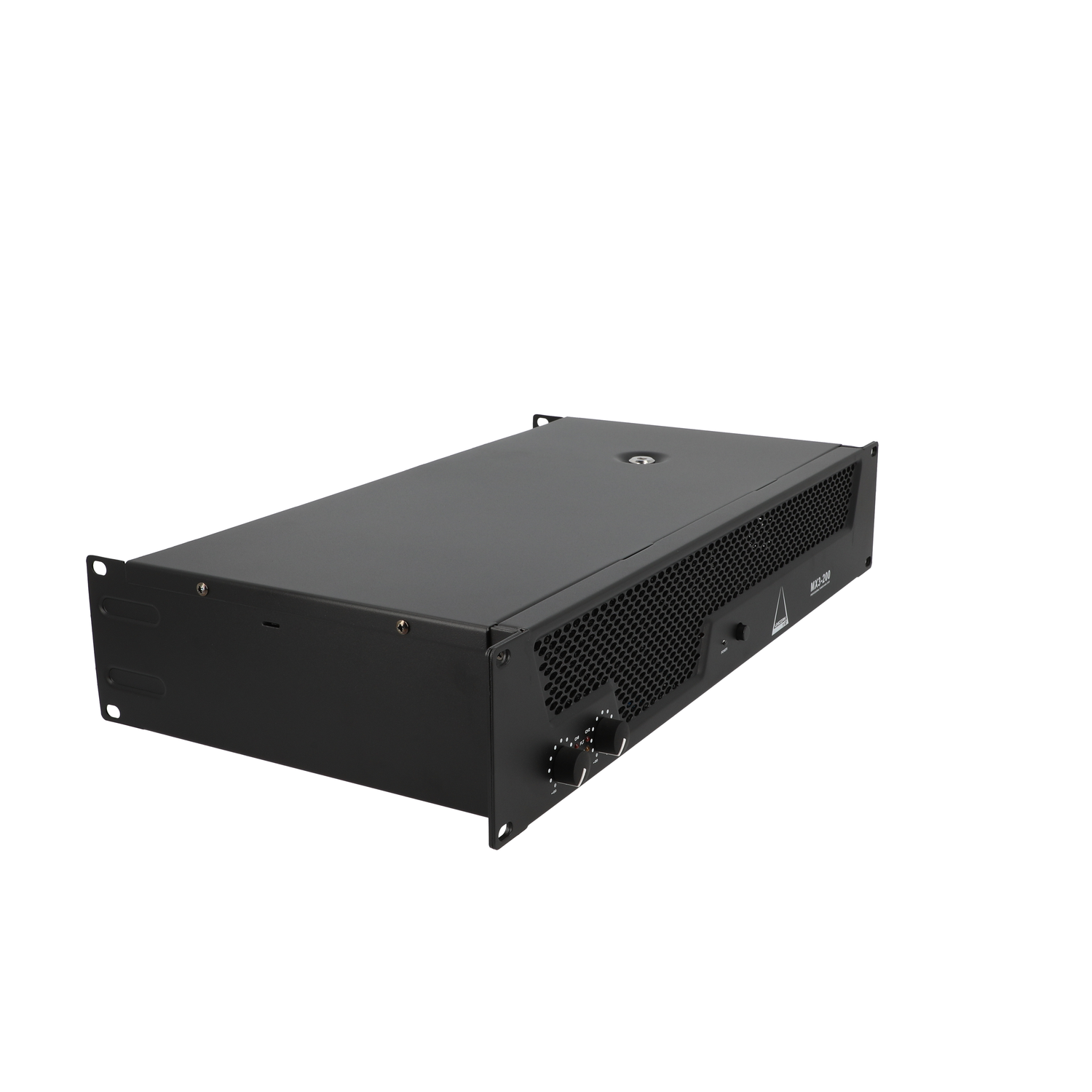

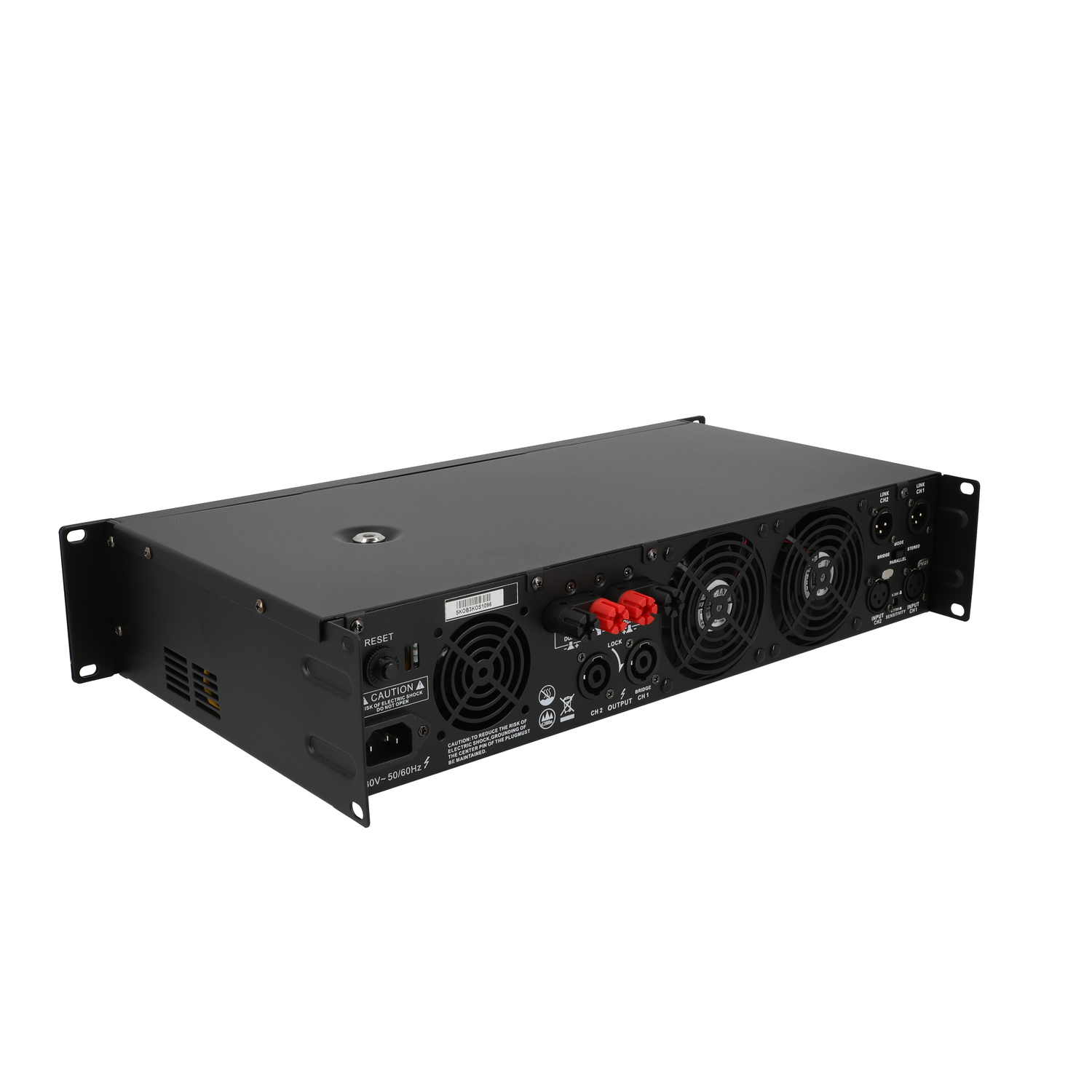

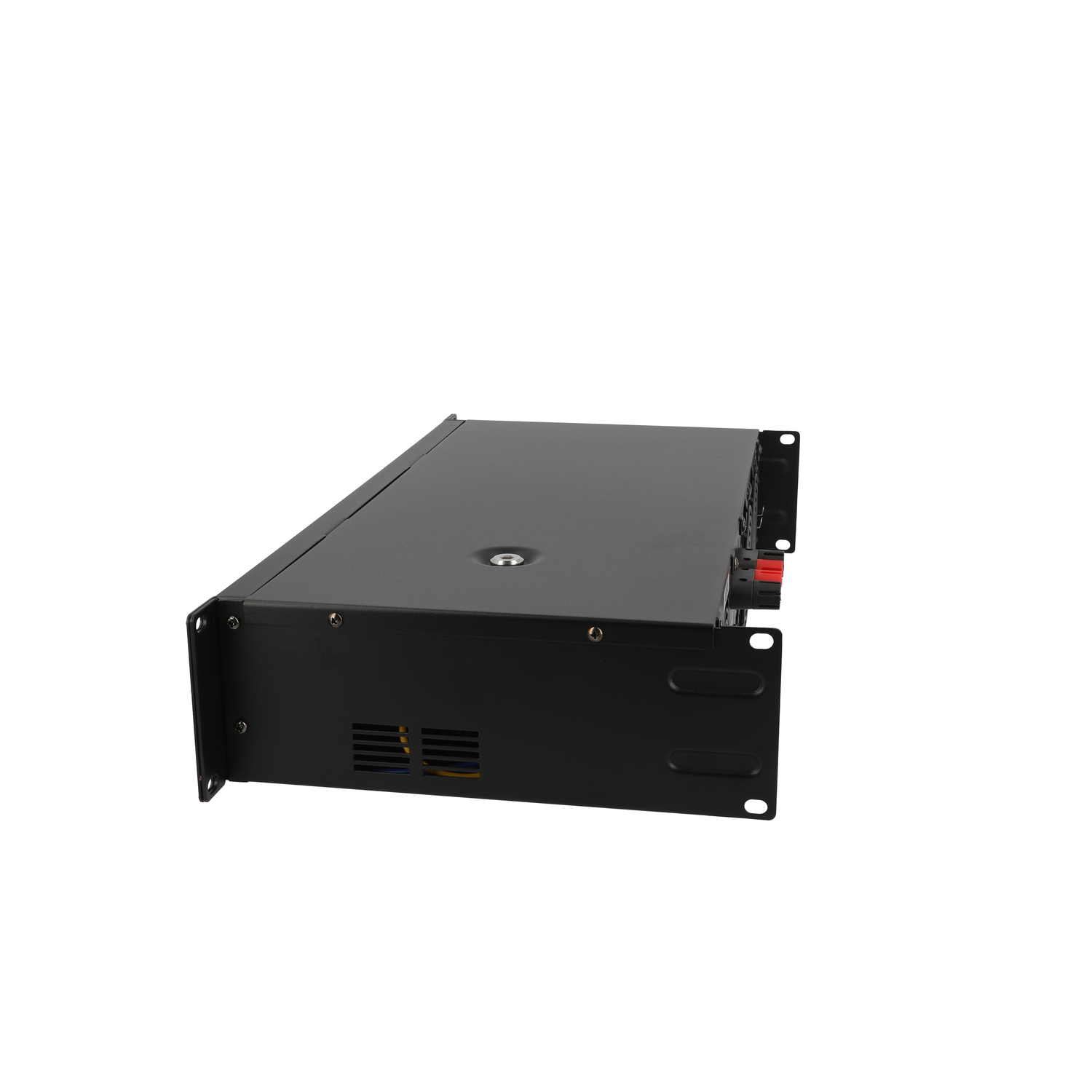

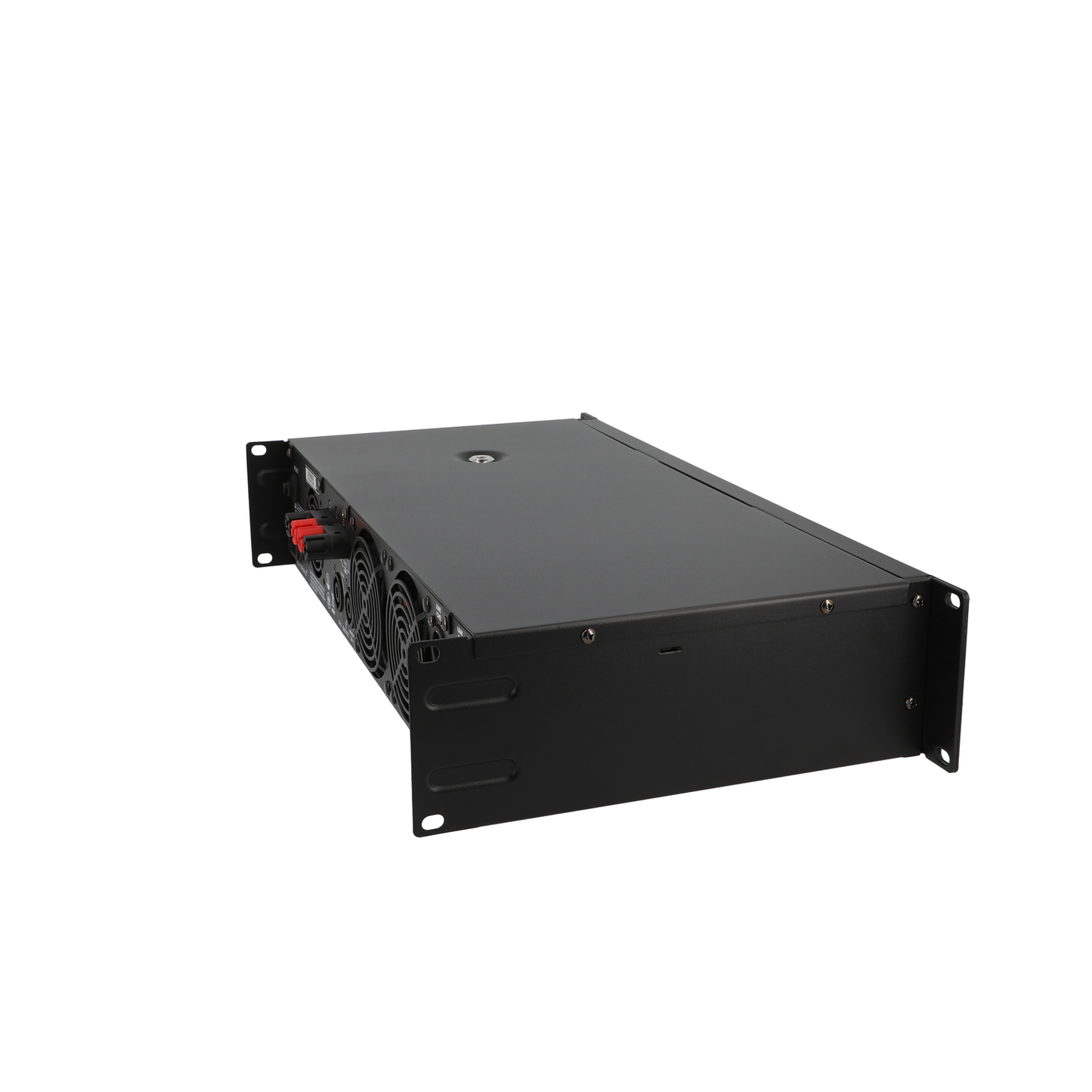

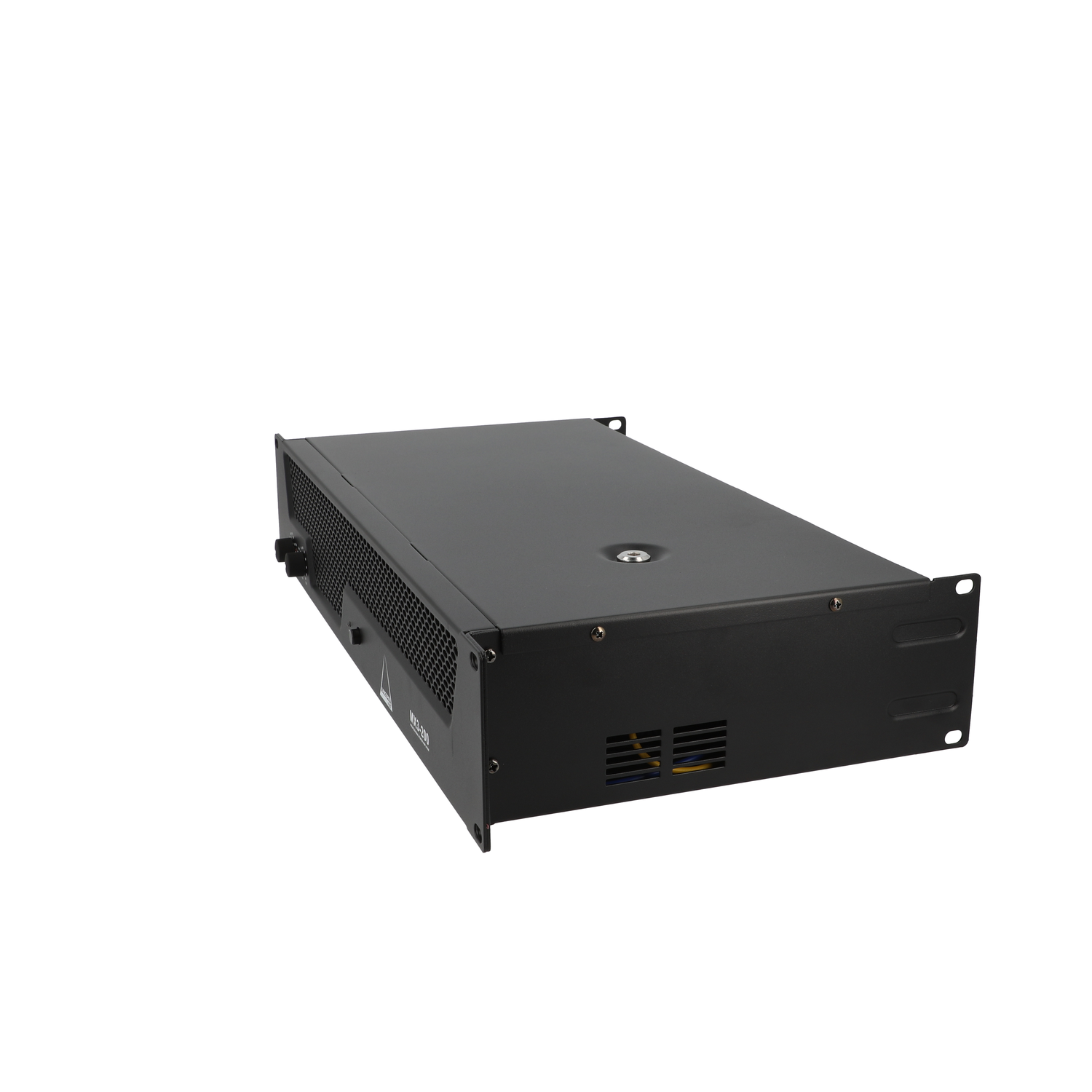

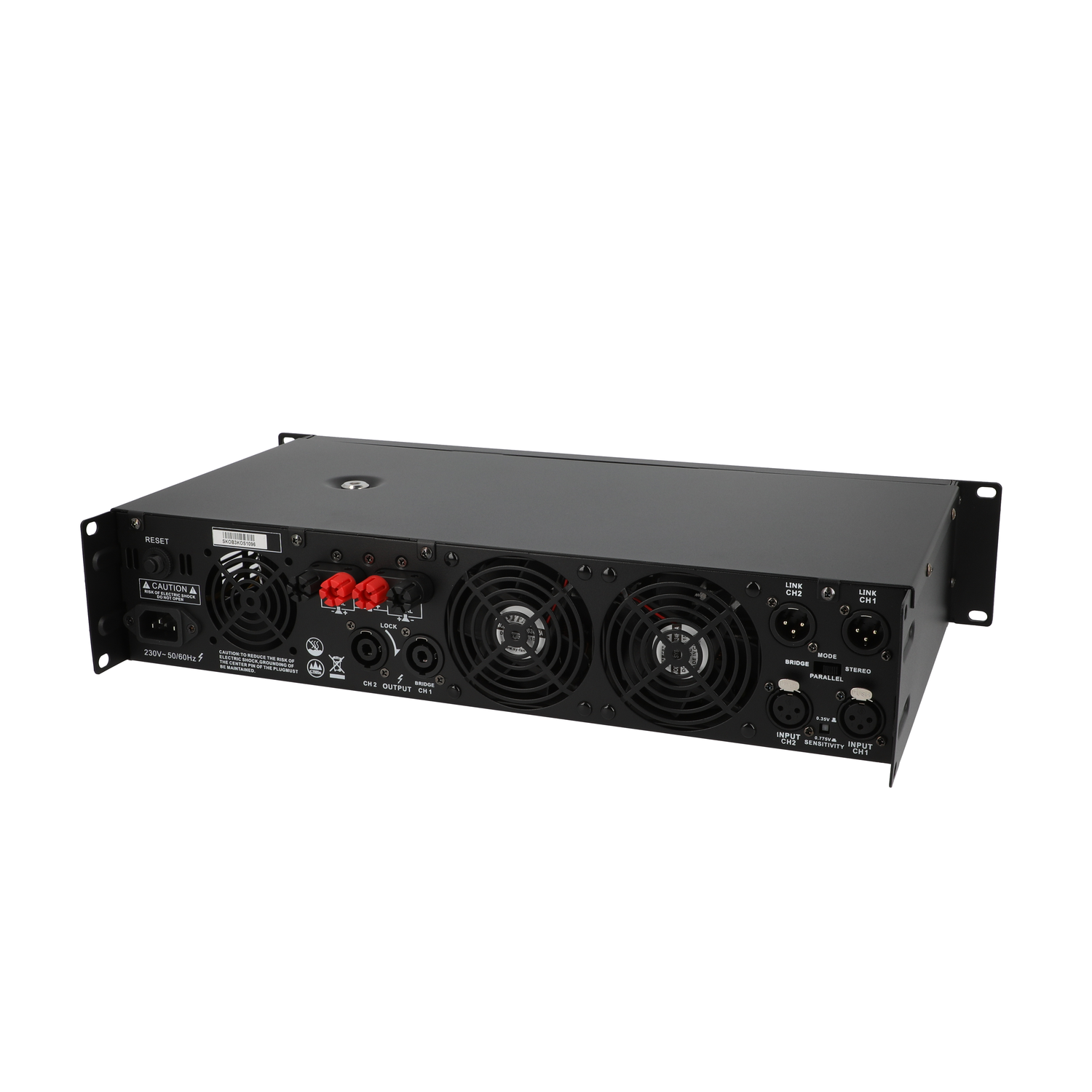

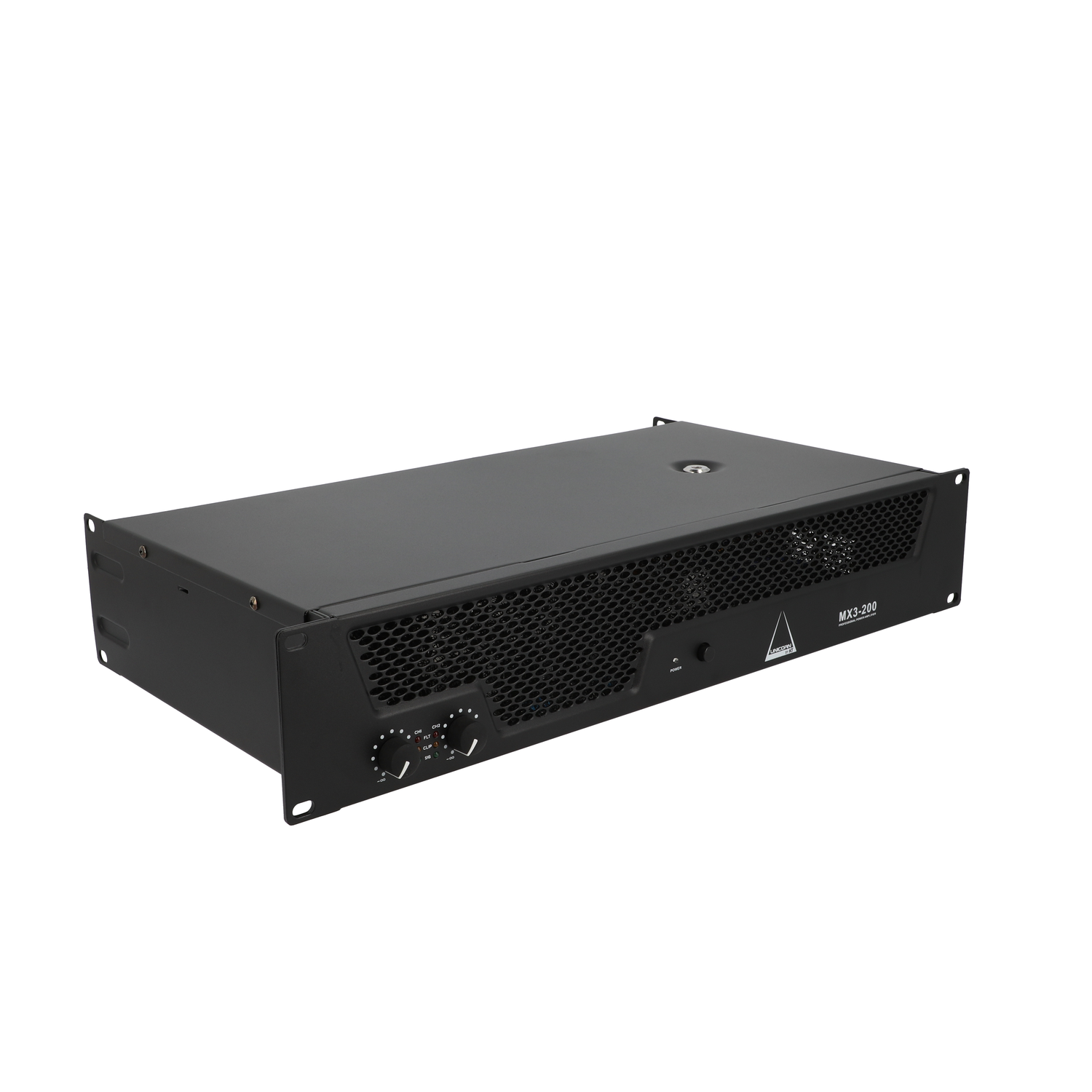

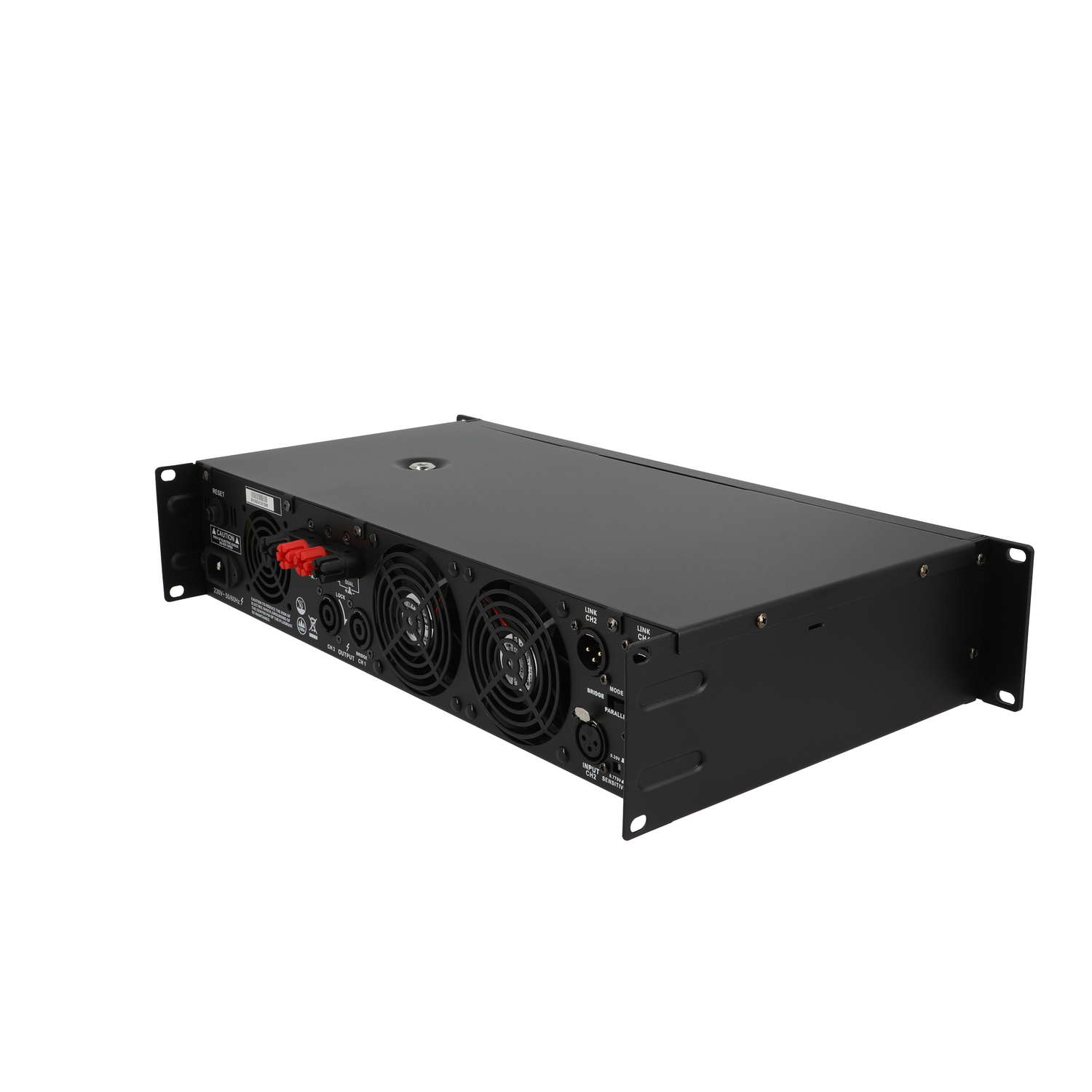

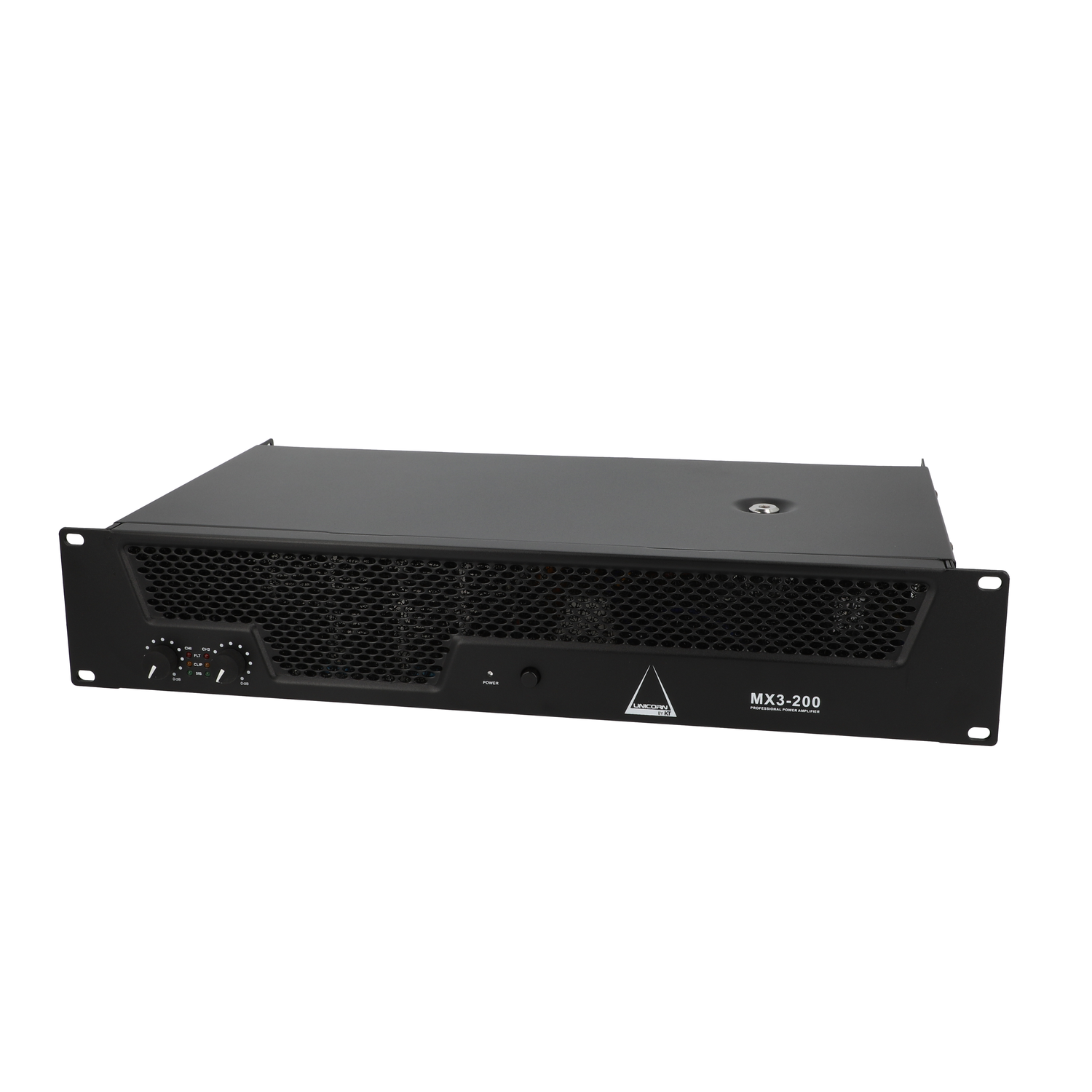

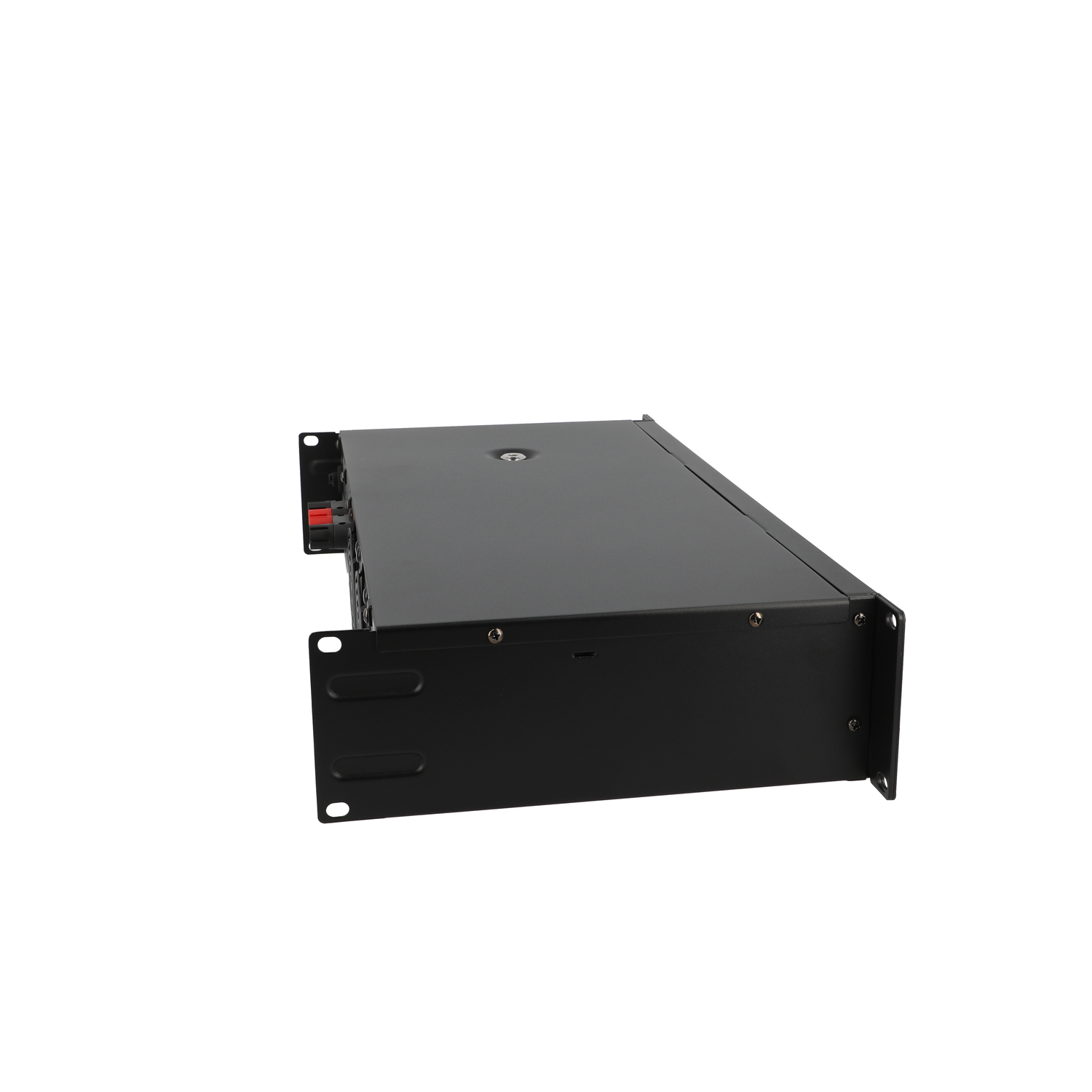

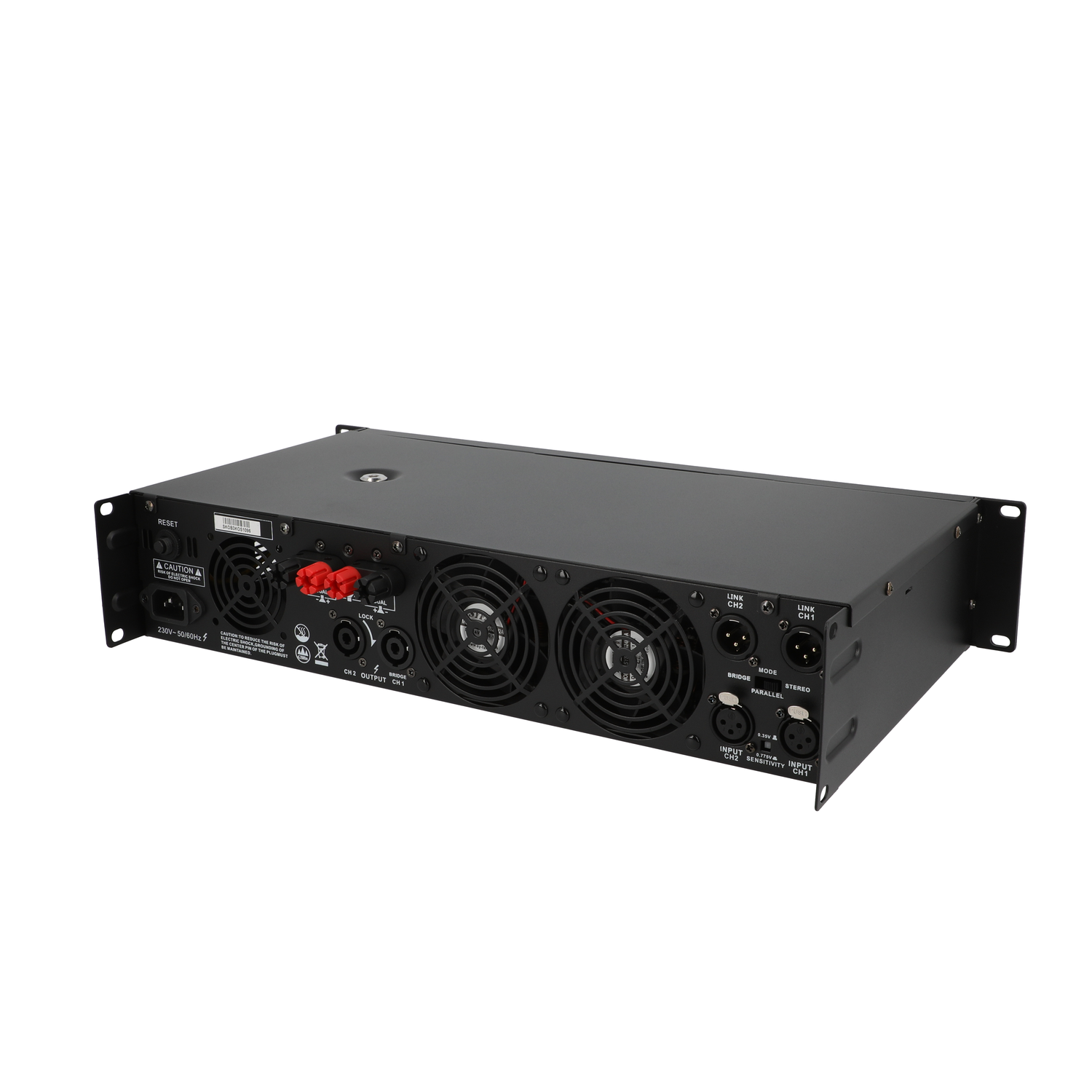

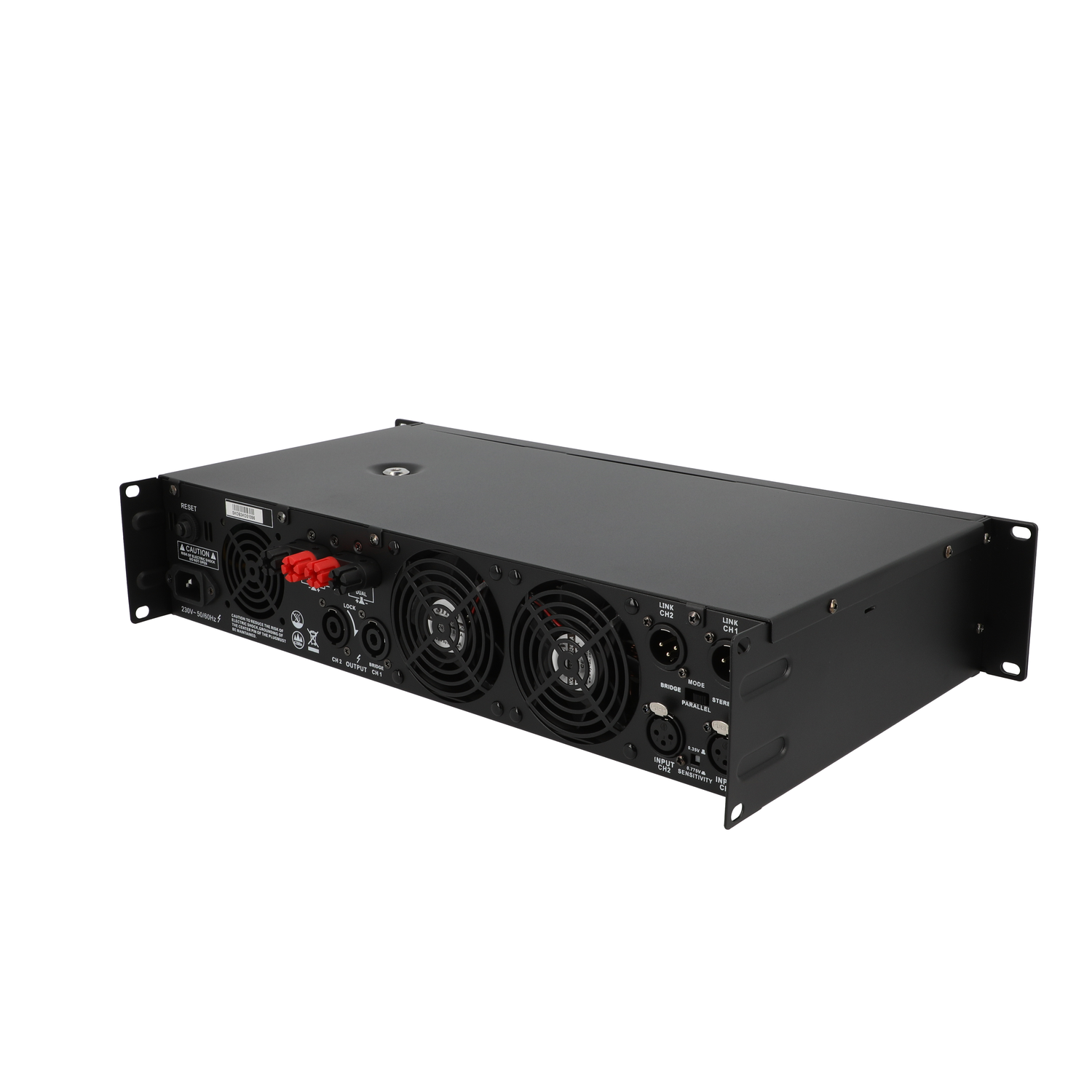

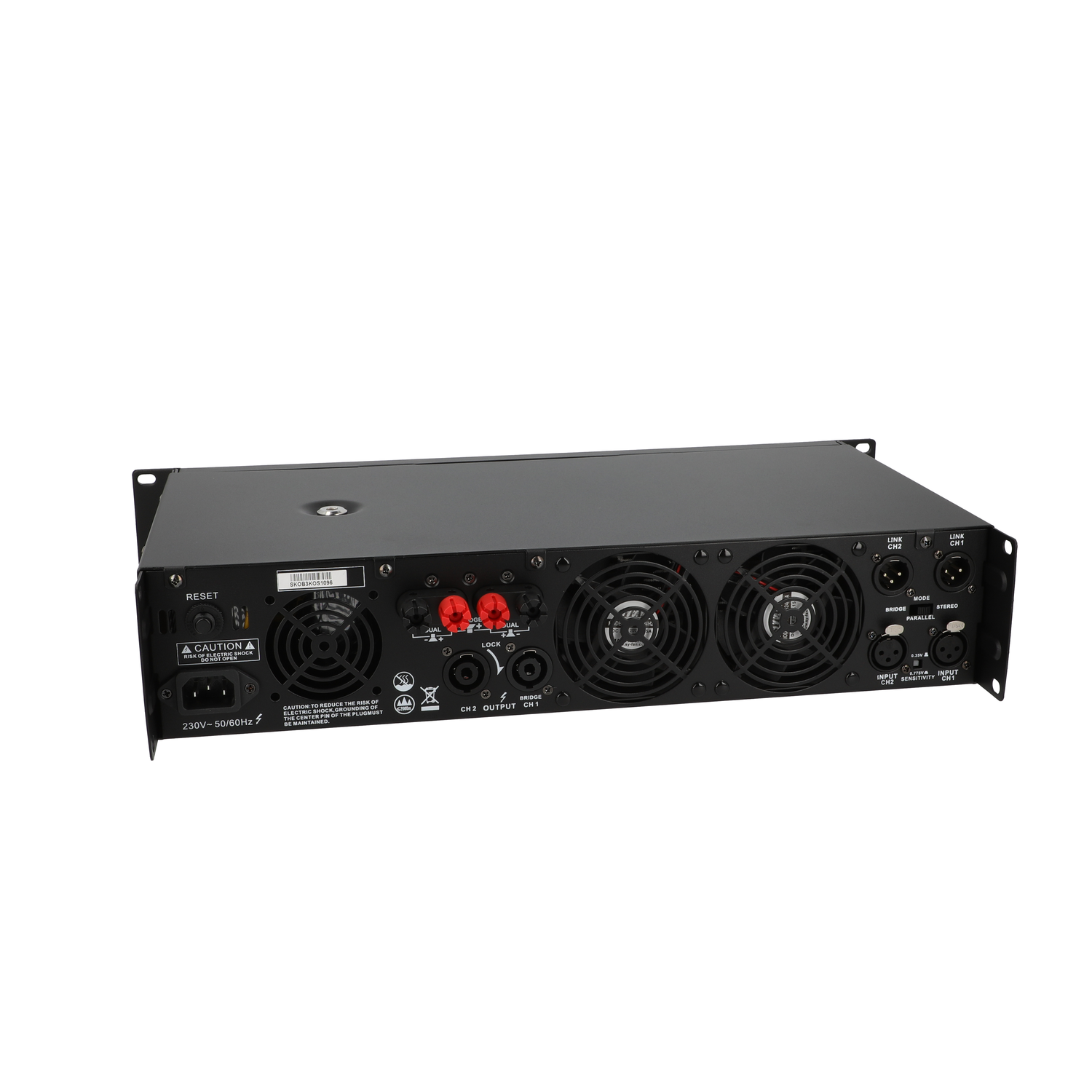

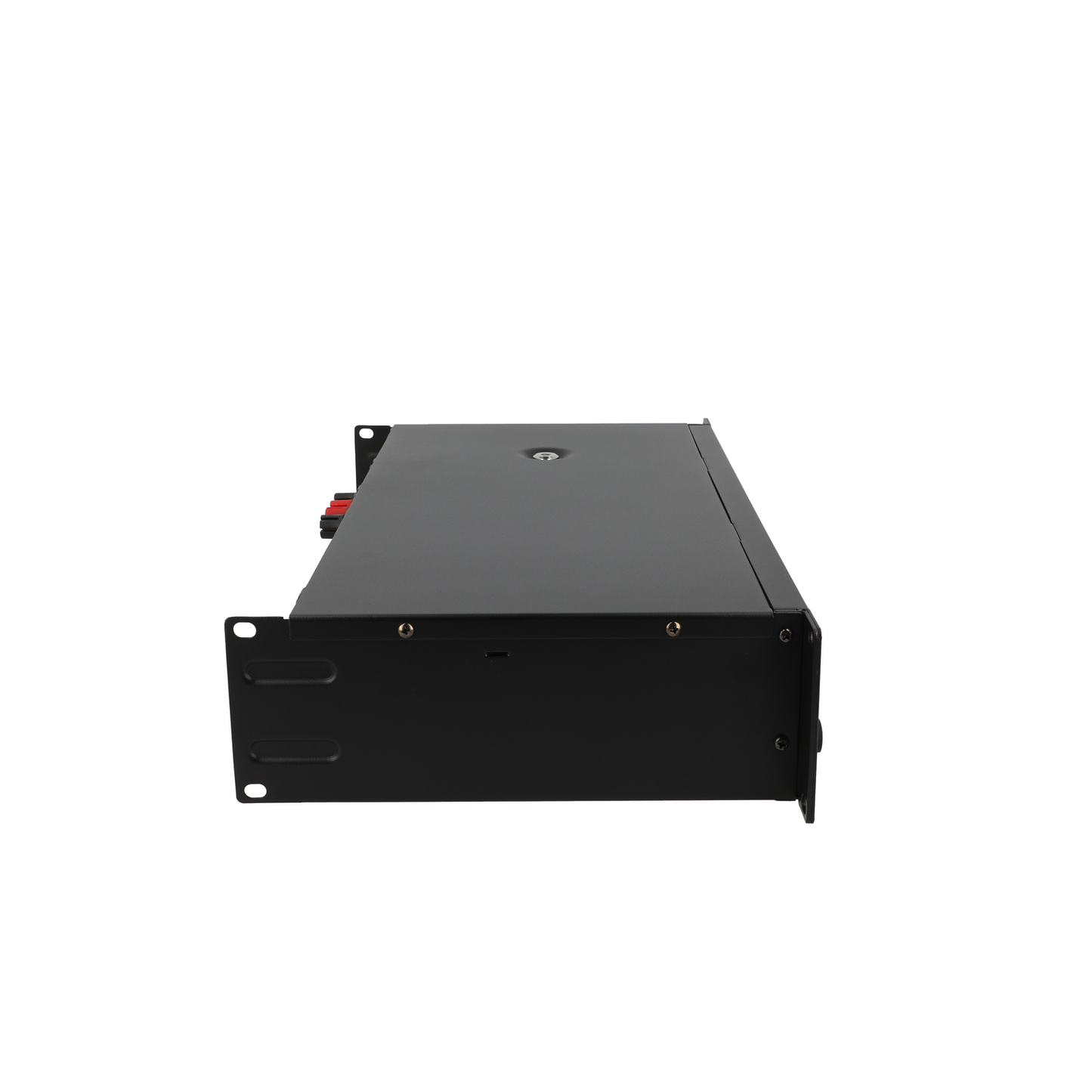

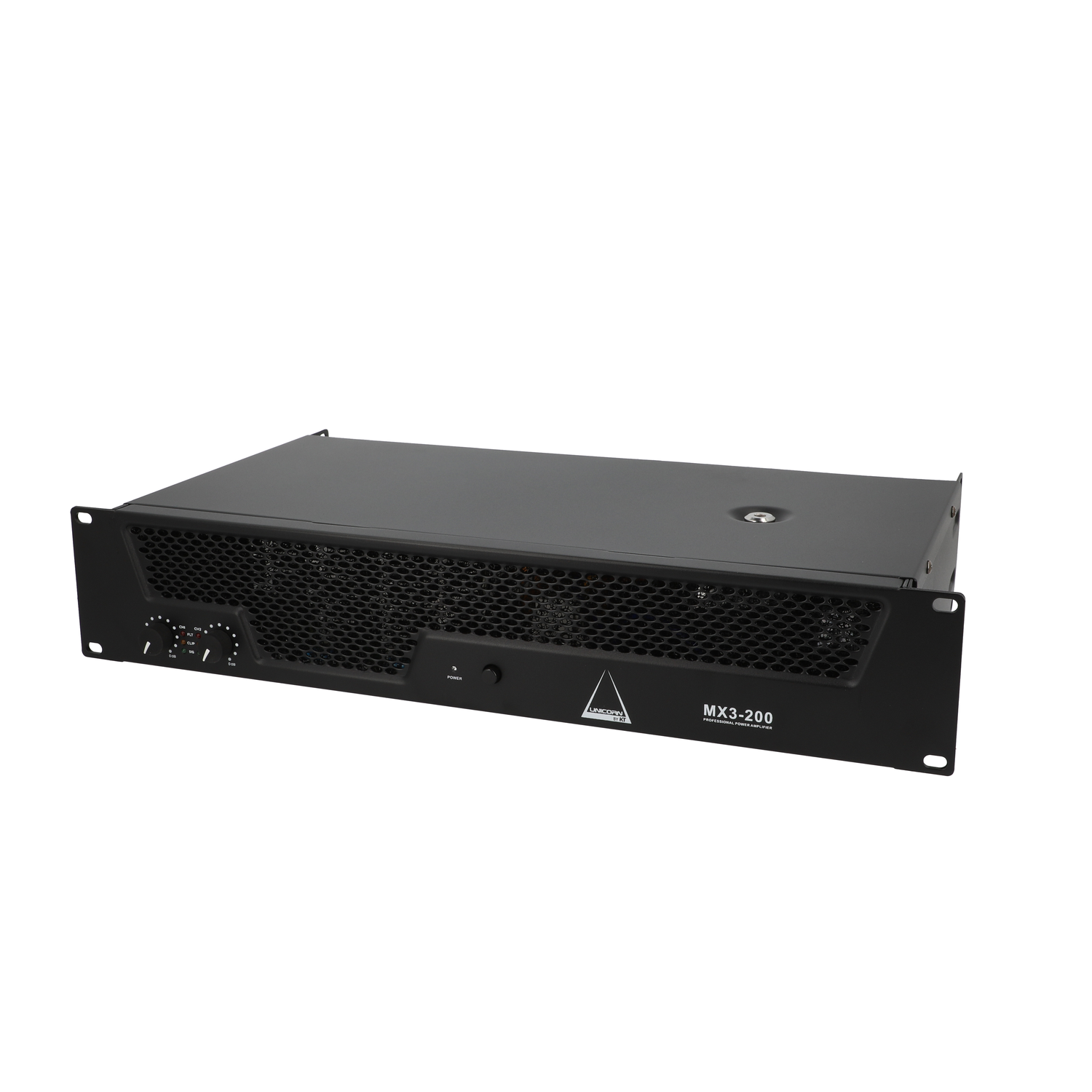

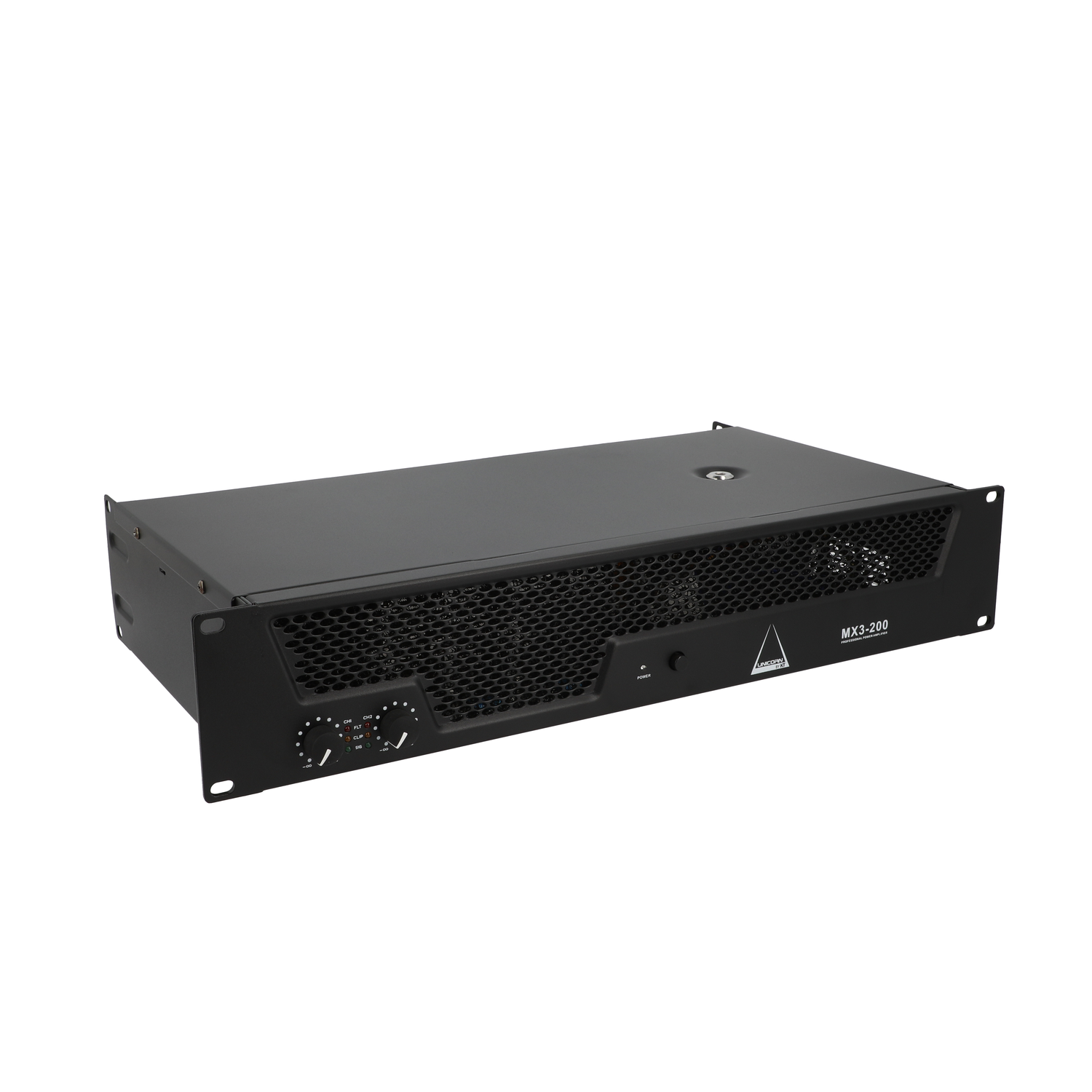

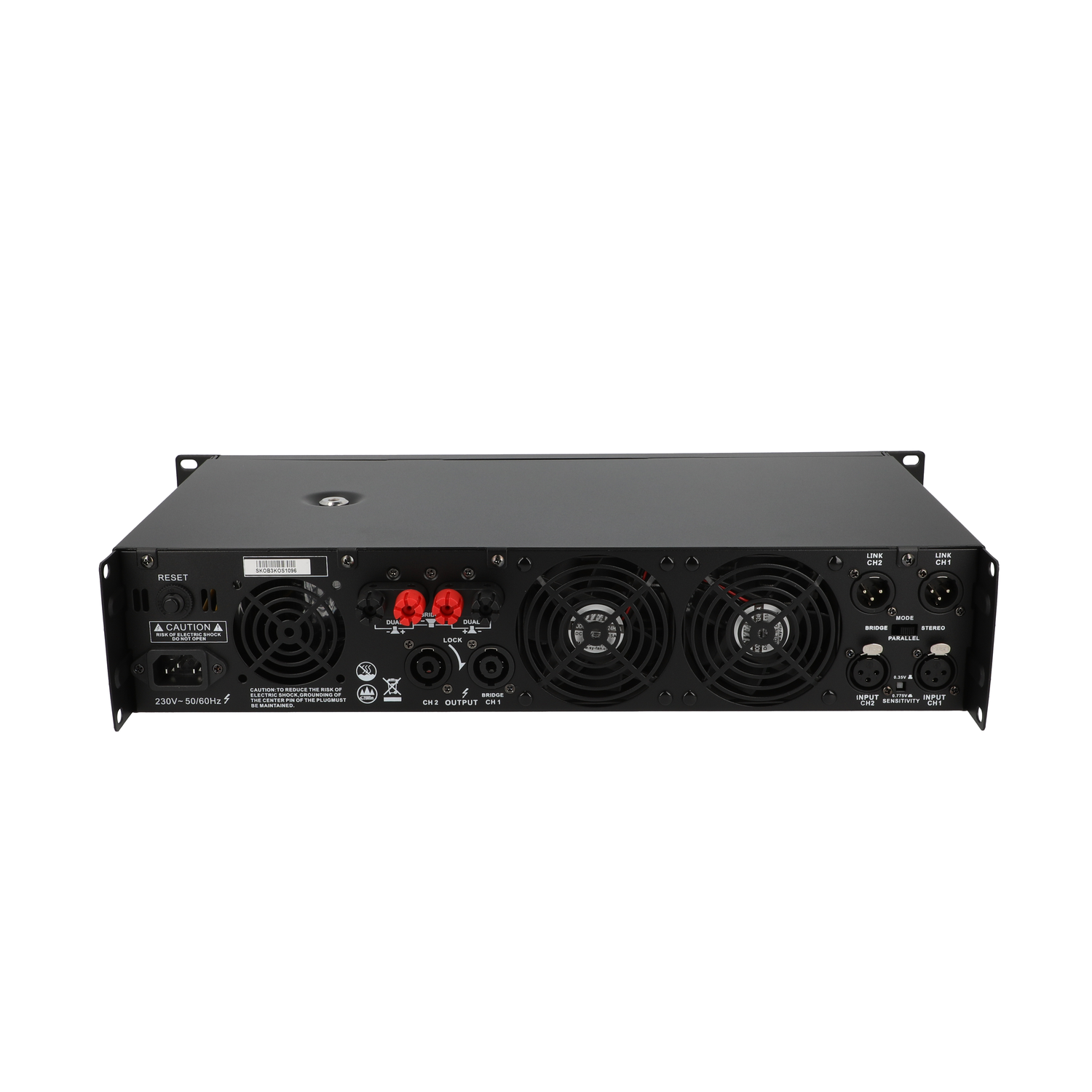

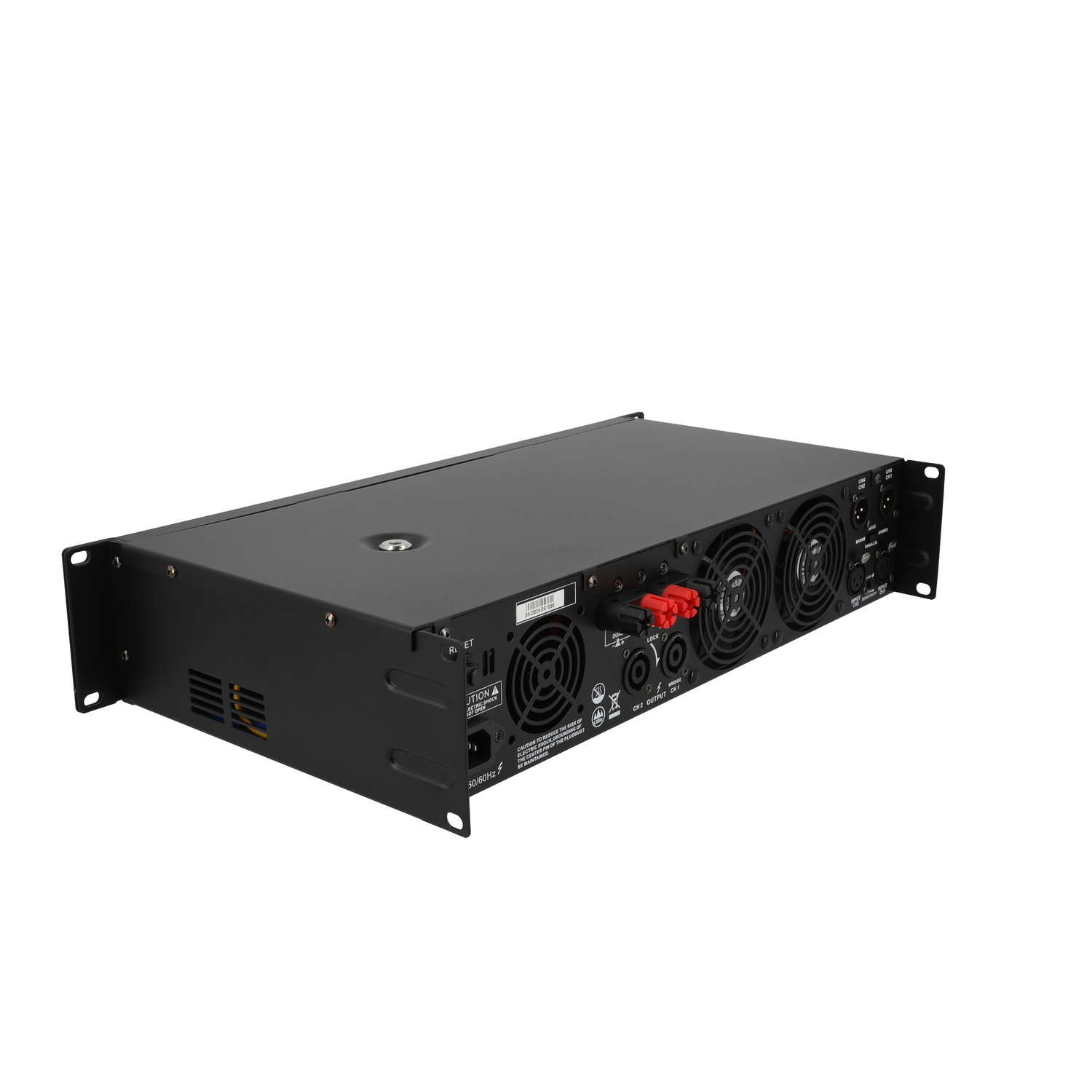

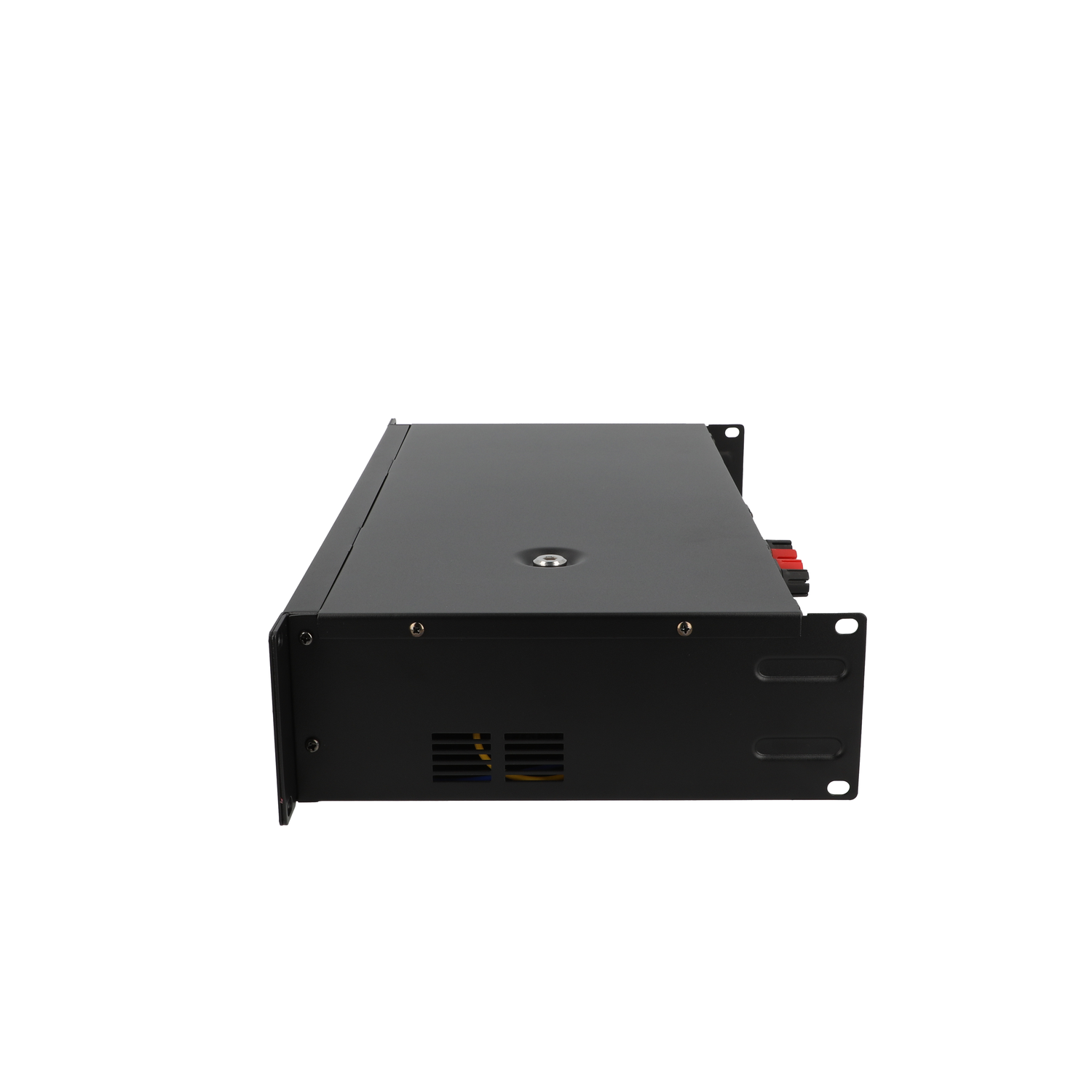

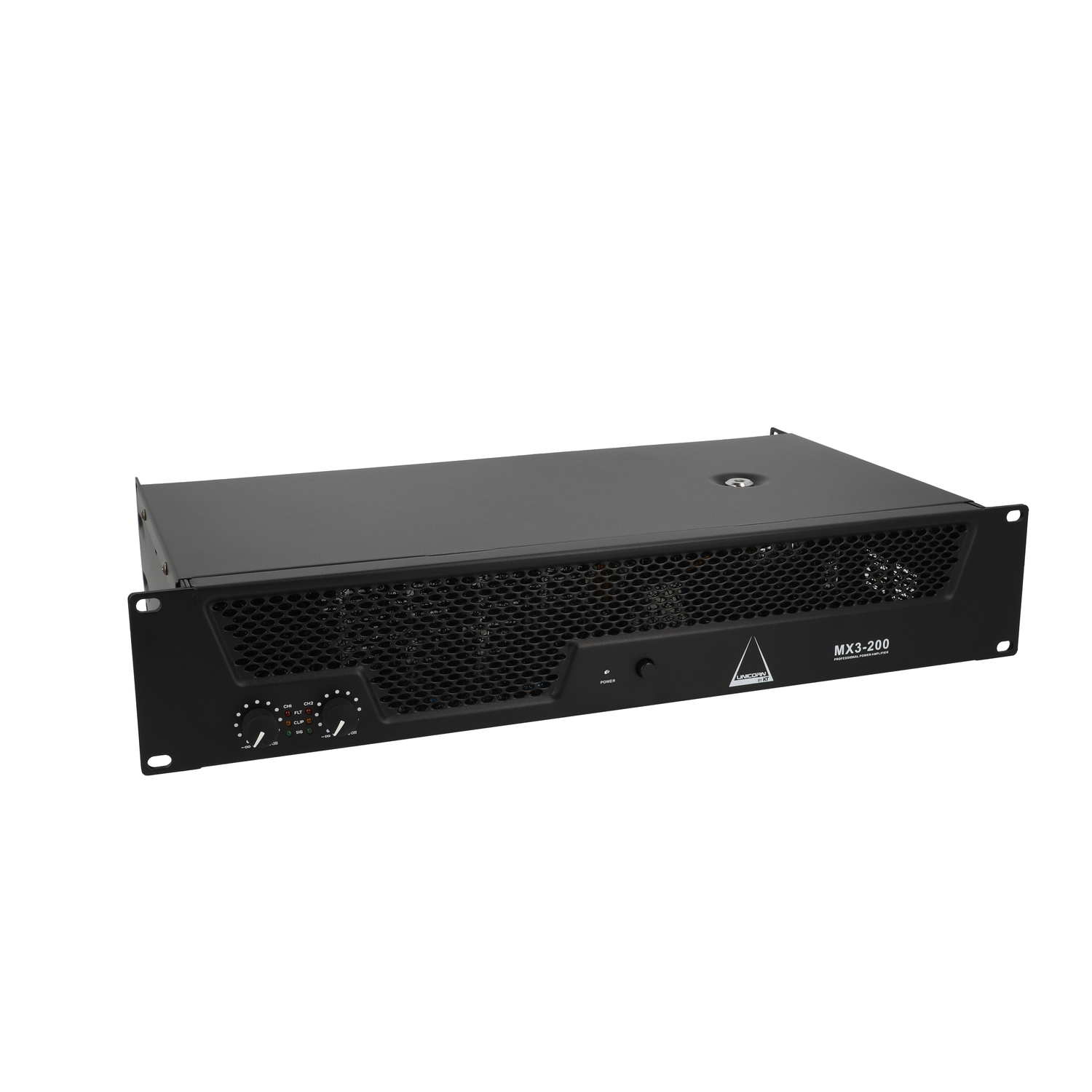

Unicorn MX3 - 200
Unicorn MX3 - 200
Couldn't load pickup availability

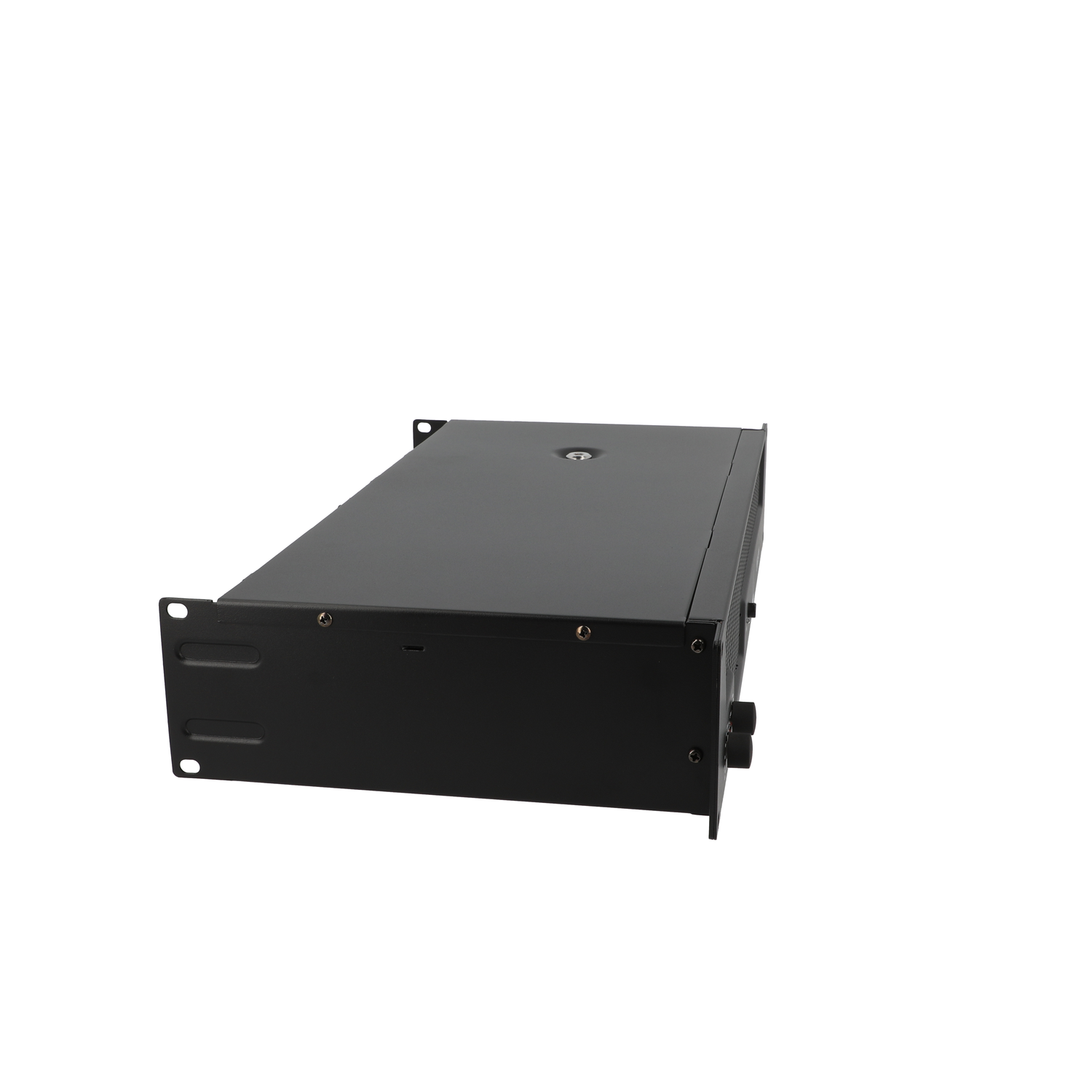

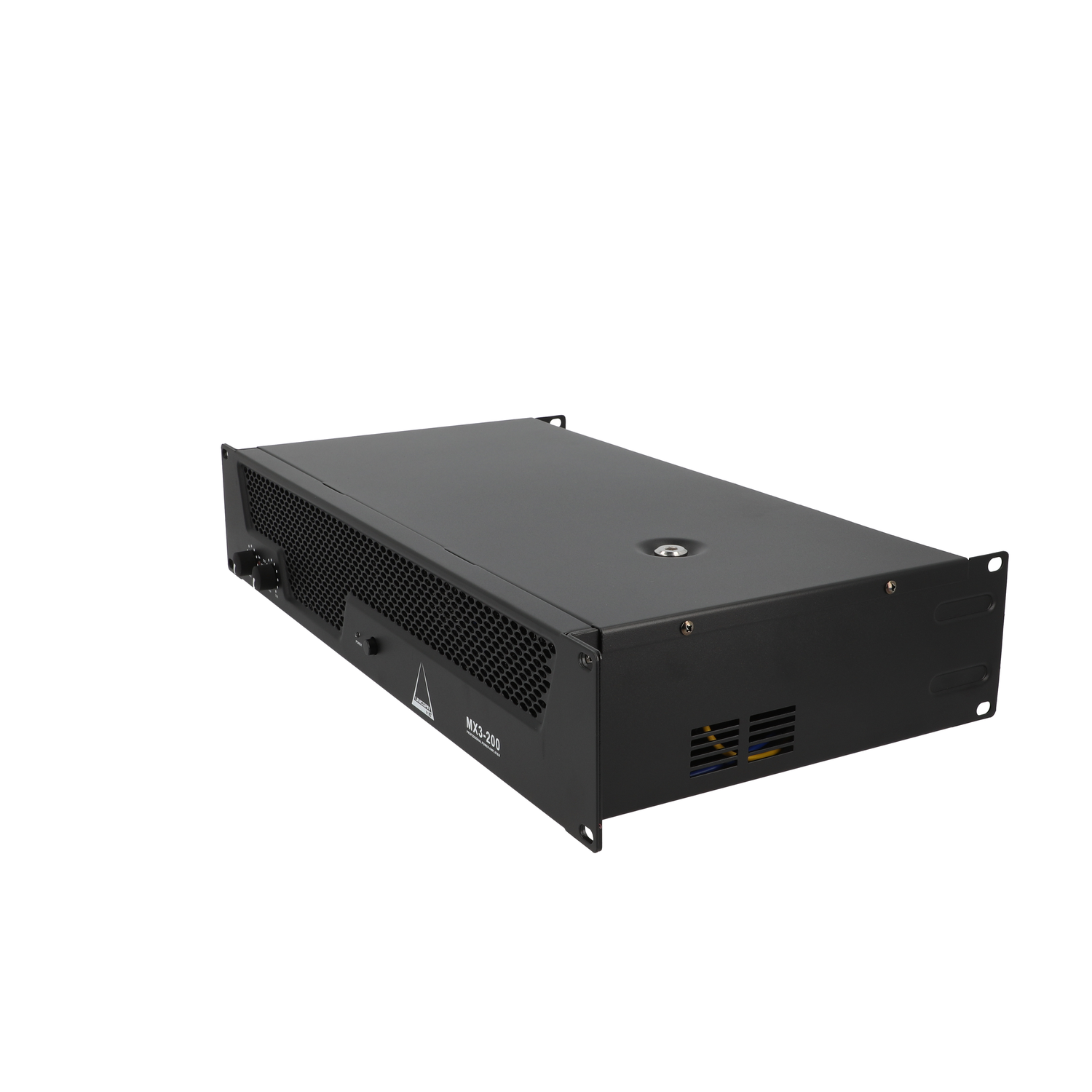

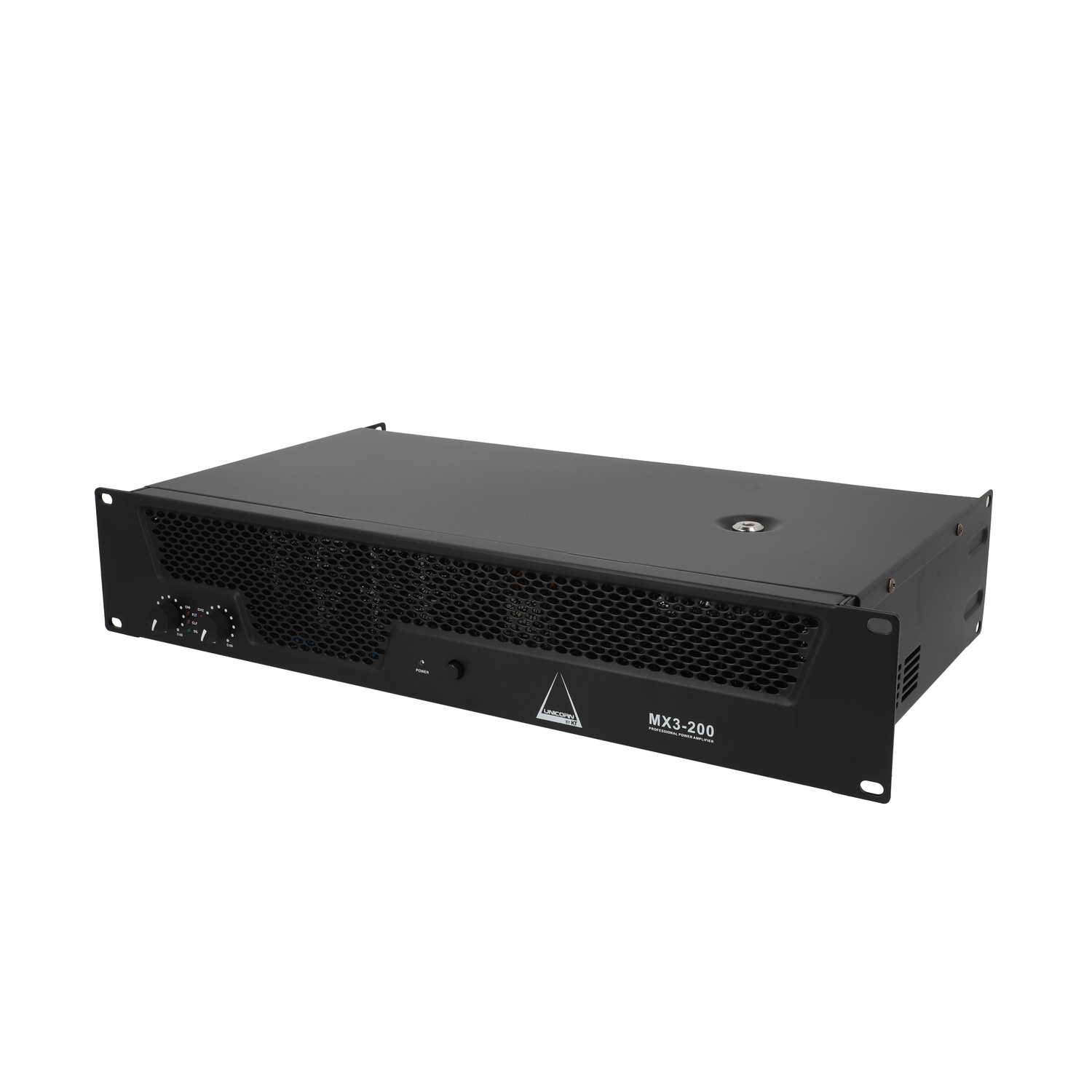

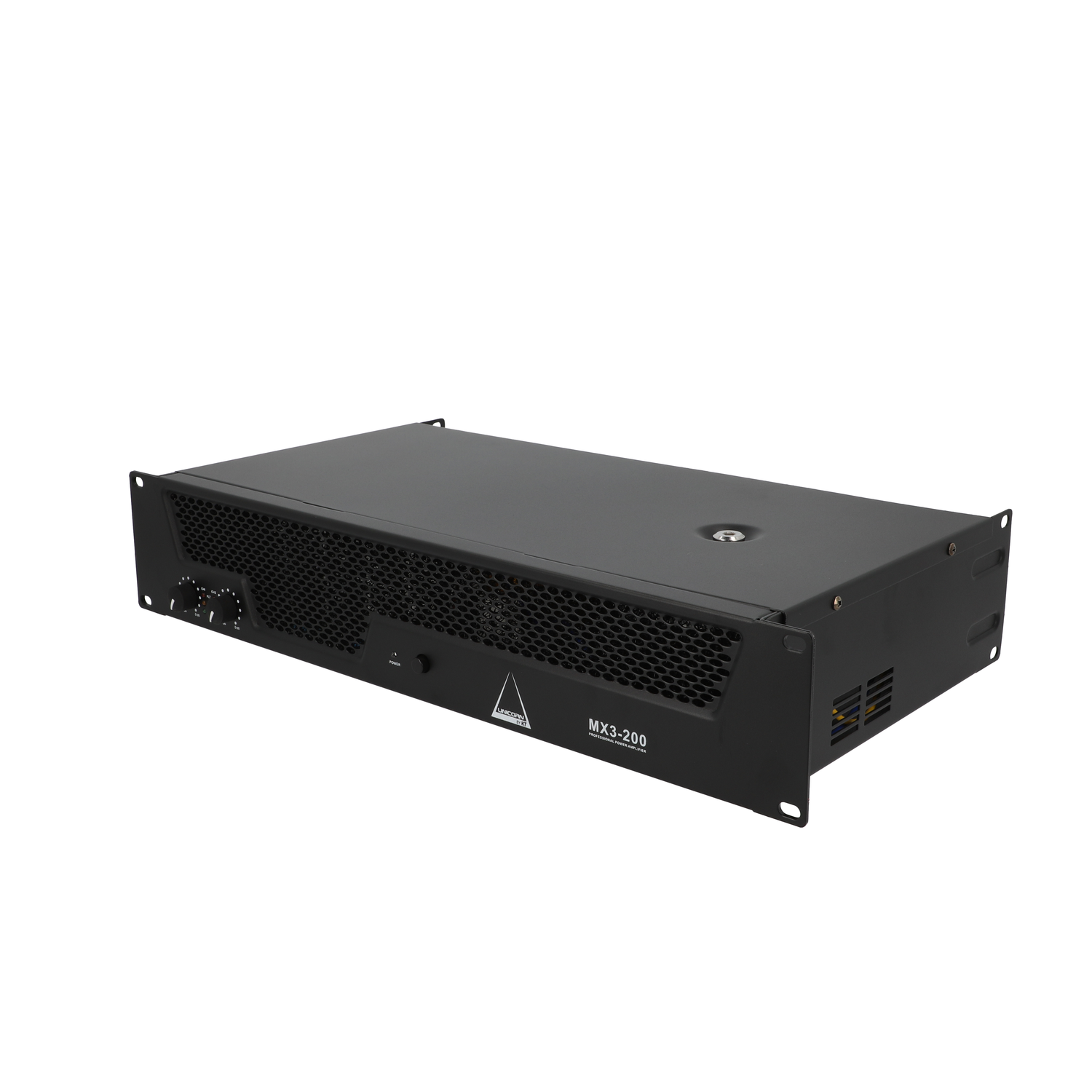

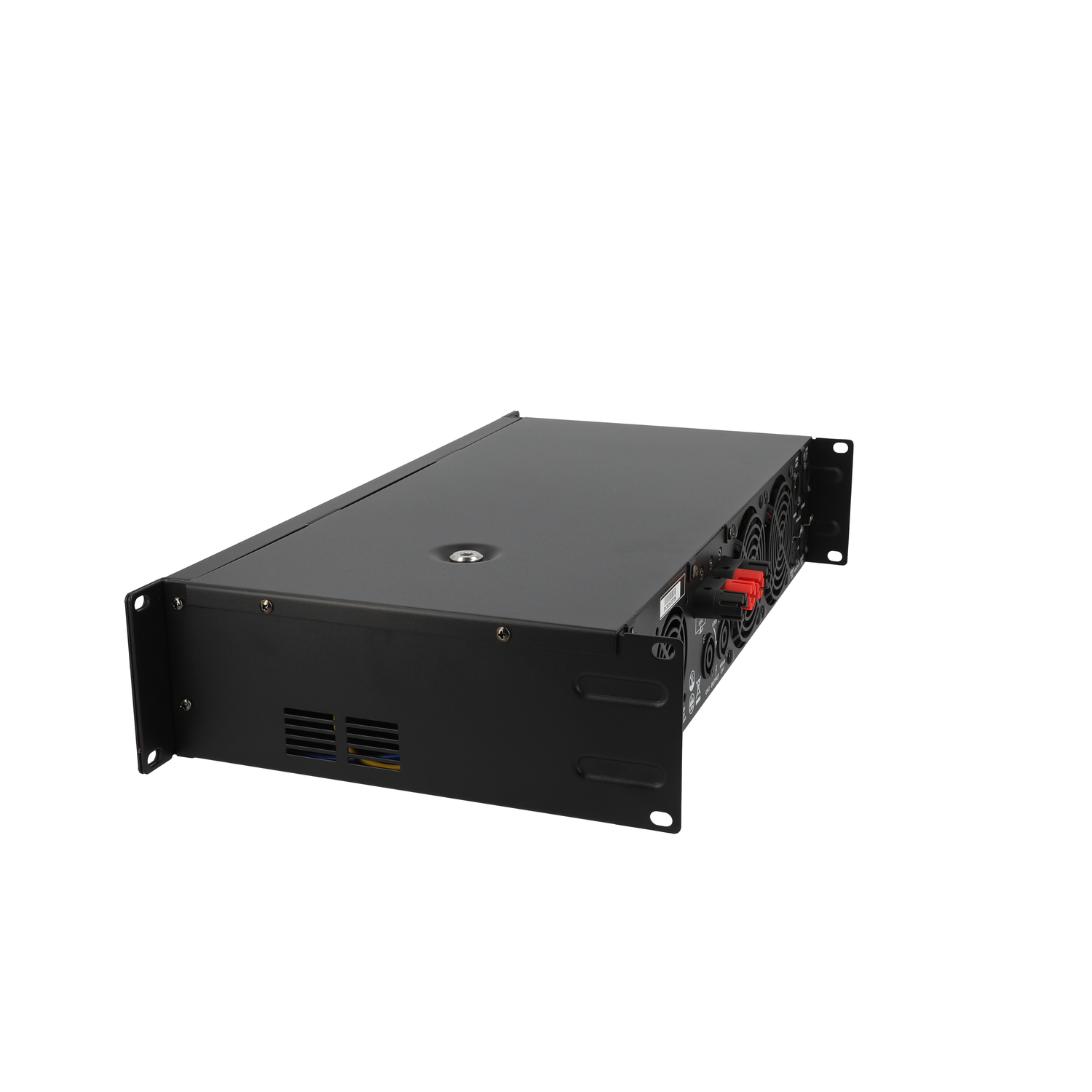

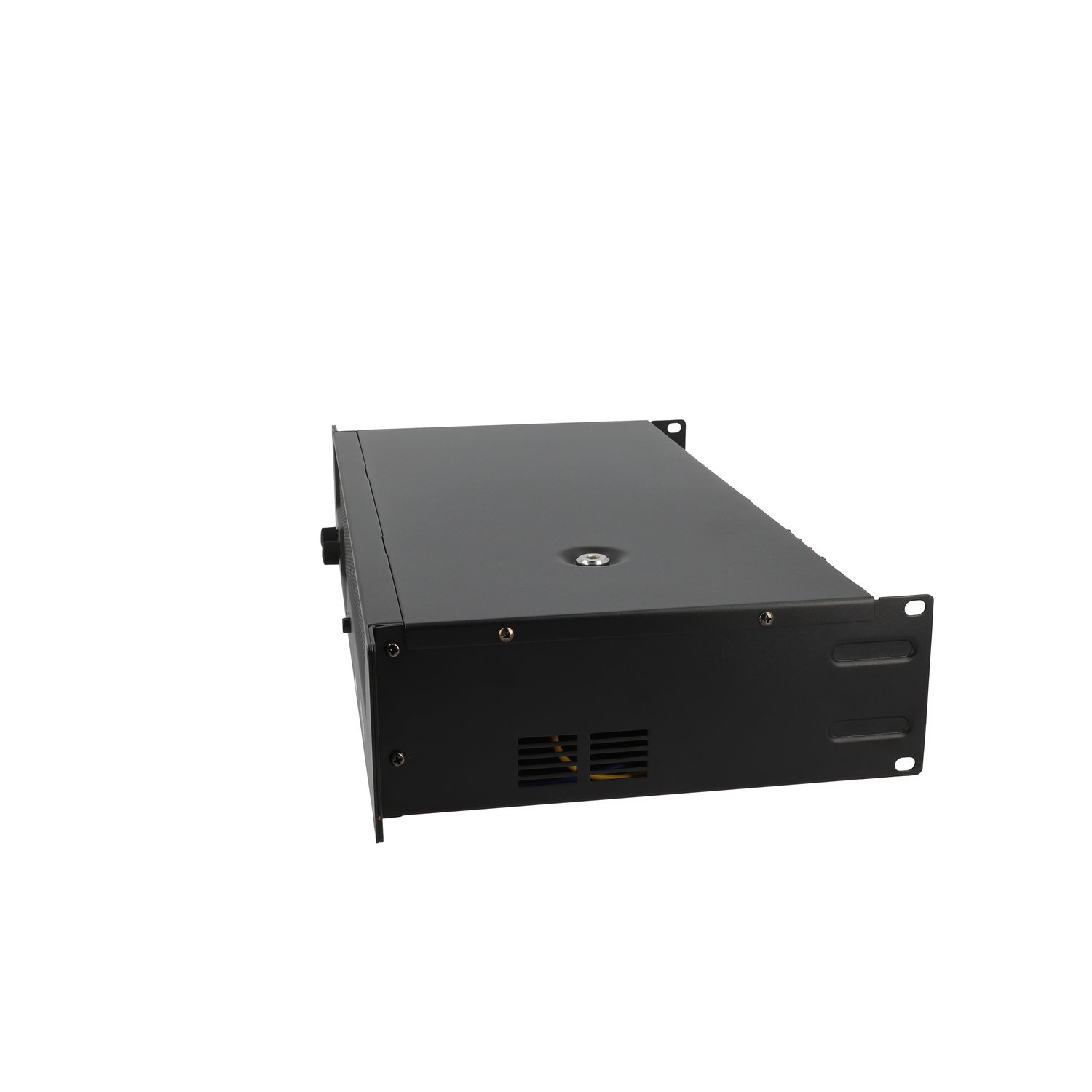

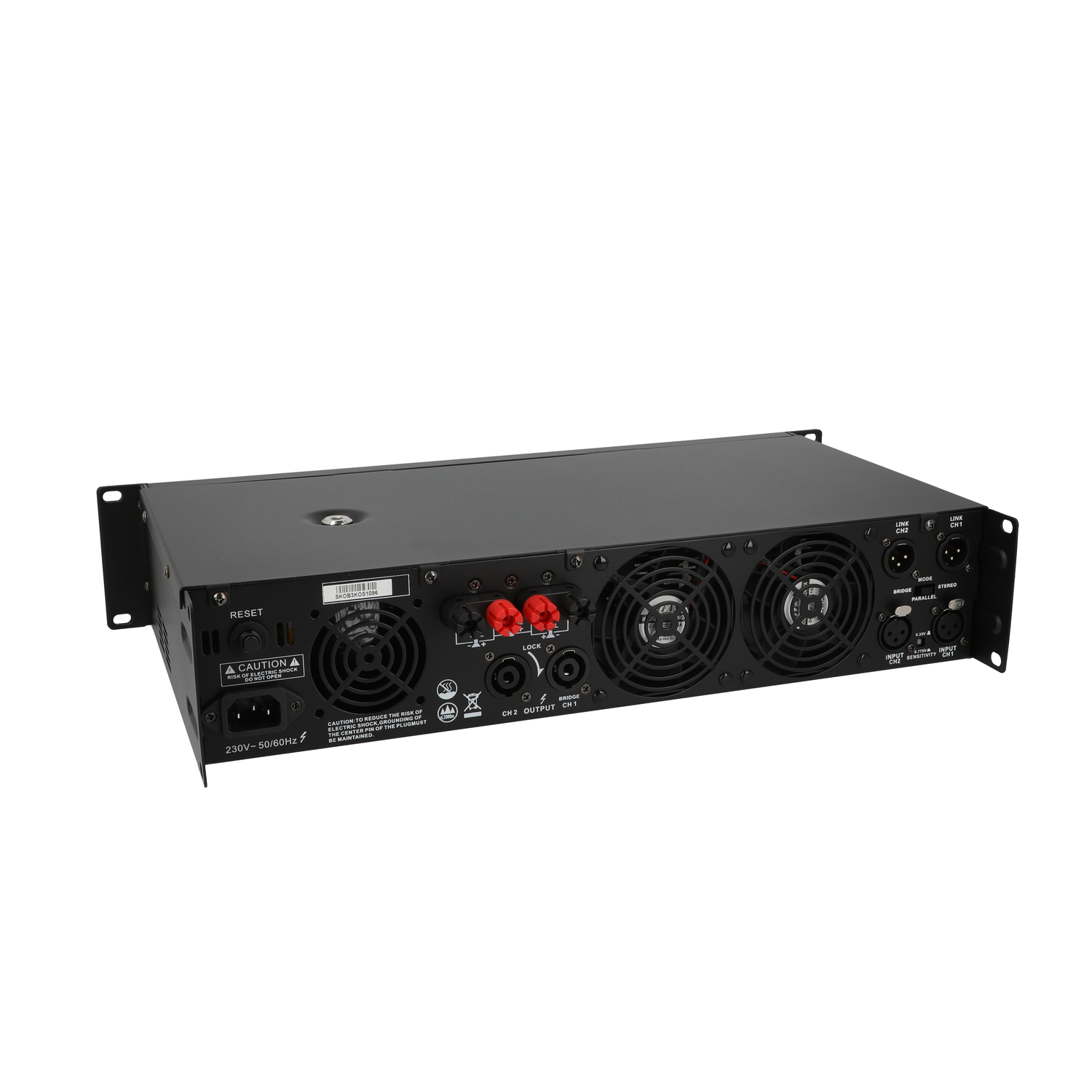

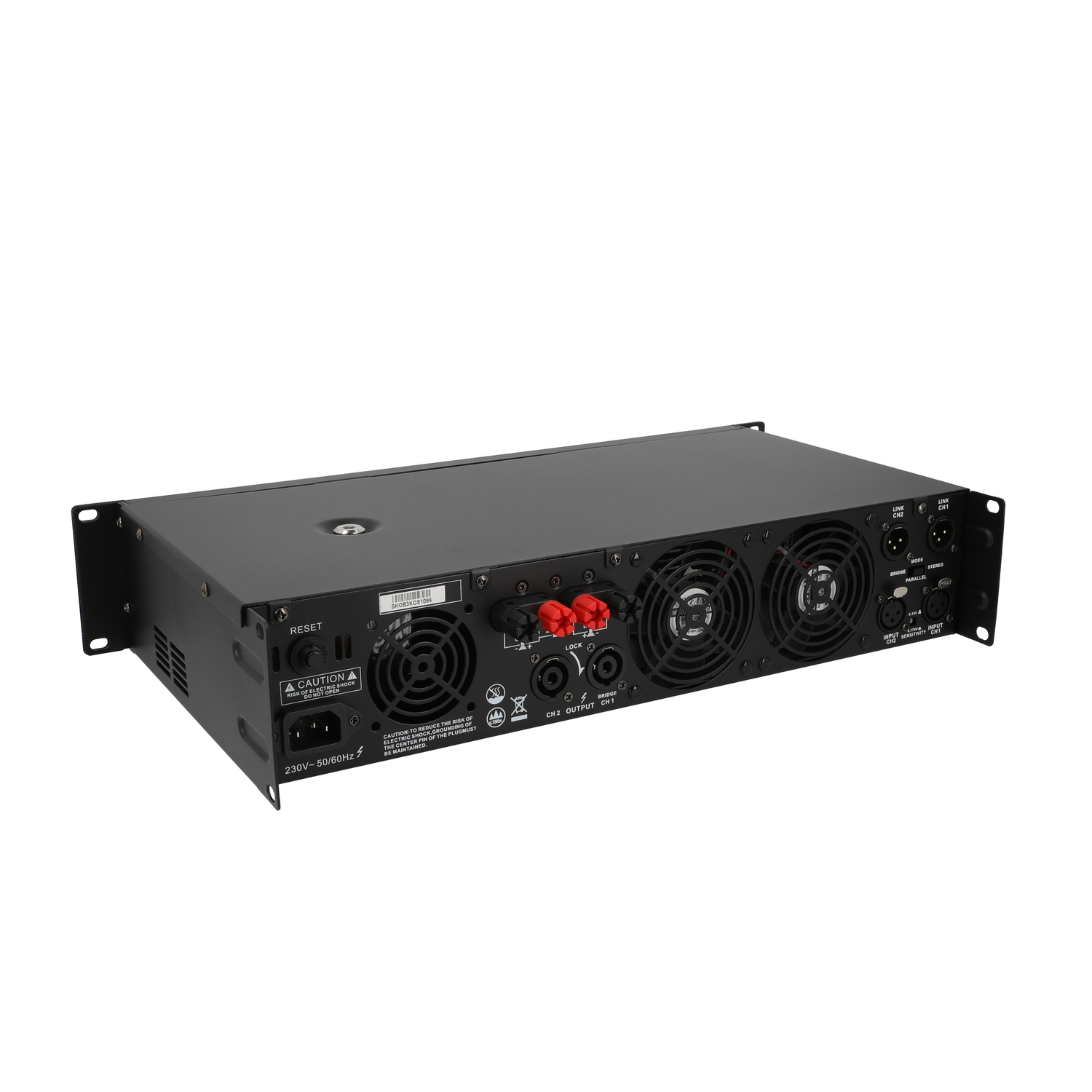

The Unicorn MX3-200 amplifier is a compact and reliable power solution, designed for professional installations, small-to-medium venues, and everyday sound reinforcement applications.
Built for stable performance and clean signal delivery, it offers solid output power, dependable protection circuits, and efficient front-to-back cooling for consistent operation in demanding environments.
With its balanced audio performance, practical form factor, and straightforward usability, the MX3-200 is a dependable choice for users who need clear, controlled amplification with professional-grade reliability.
Key Features:
Key Features:
• Stereo Power (8 ohms): 2×200W
• Stereo Power (4 ohms): 2×300W
• Bridge Power (8 ohms): 1×600W
• Frequency Response: 20Hz–20KHz (±1dB)
• Voltage Gain: 37dB
• Input Sensitivity: 0.35V / 0.775V
• Input Impedance: 20kΩ (Balanced) / 10kΩ (Unbalanced)
• Damping Factor: >200 (8Ω, 10Hz–400Hz)
• Signal to Noise Ratio: >100dB (below rated power, 20Hz–20KHz, A-weighted)
• Total Harmonic Distortion (THD): <1%, 100Hz–20KHz
• Intermodulation Distortion: ≤0.35%
• Slew Rate: >10V/us
• Power Cord Specification: Plug 10A, 250V; Wire 3×1.0mm²
• Protection: Protection against short circuits, no-load, on/off muting, RF interference
• Ventilation: Flow-through ventilation from front to back
• Cooling: Internal heat sinks with forced air, fan cooled, speed regulated, thermal protection
• Dimensions (W×D×H): 482×225×88mm
• Weight: 8kg
